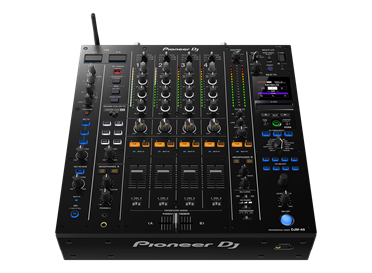

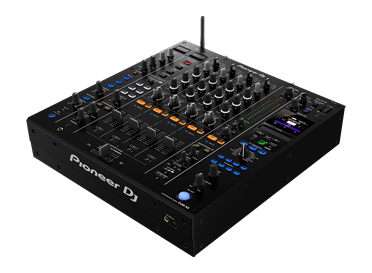

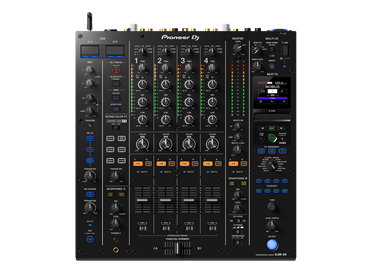

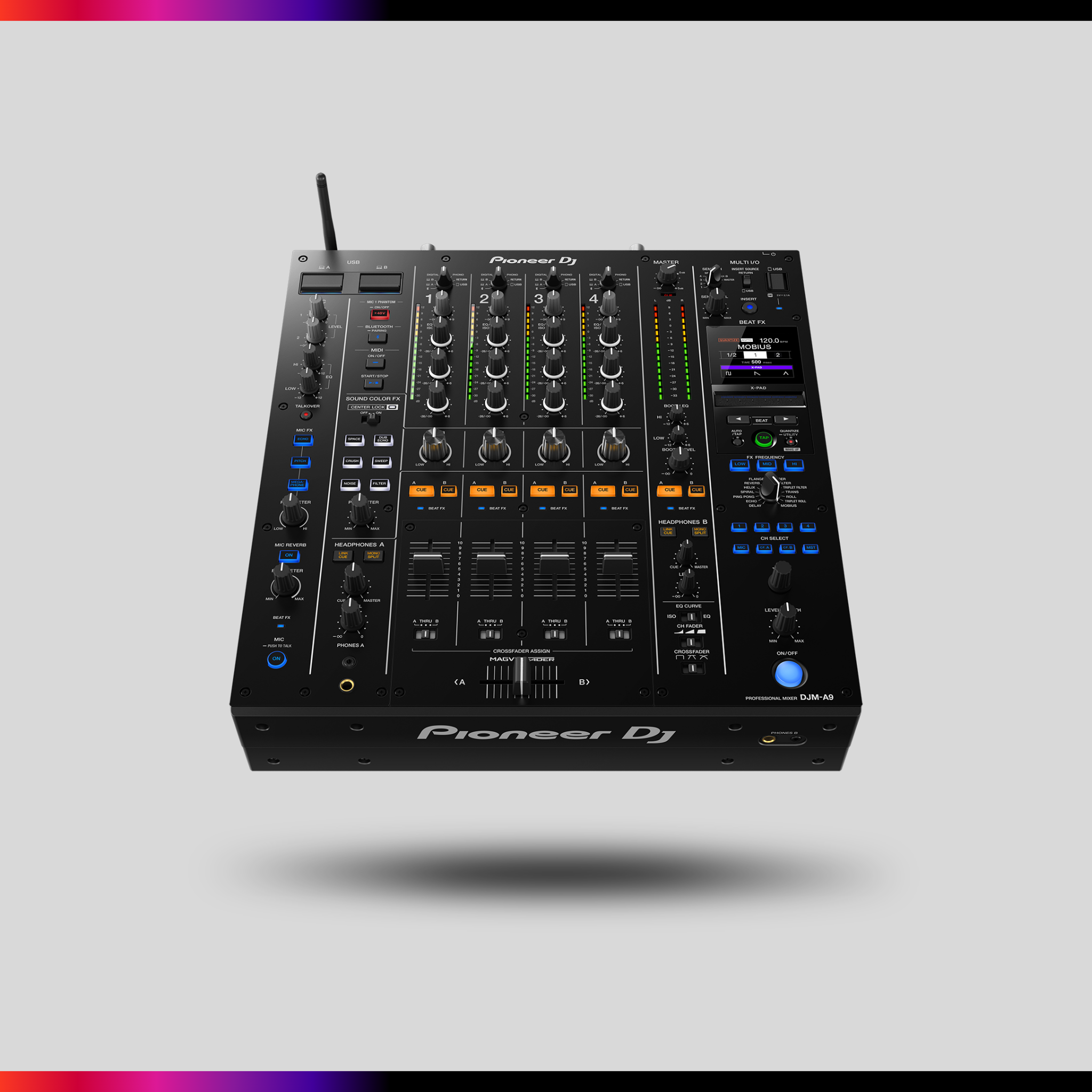

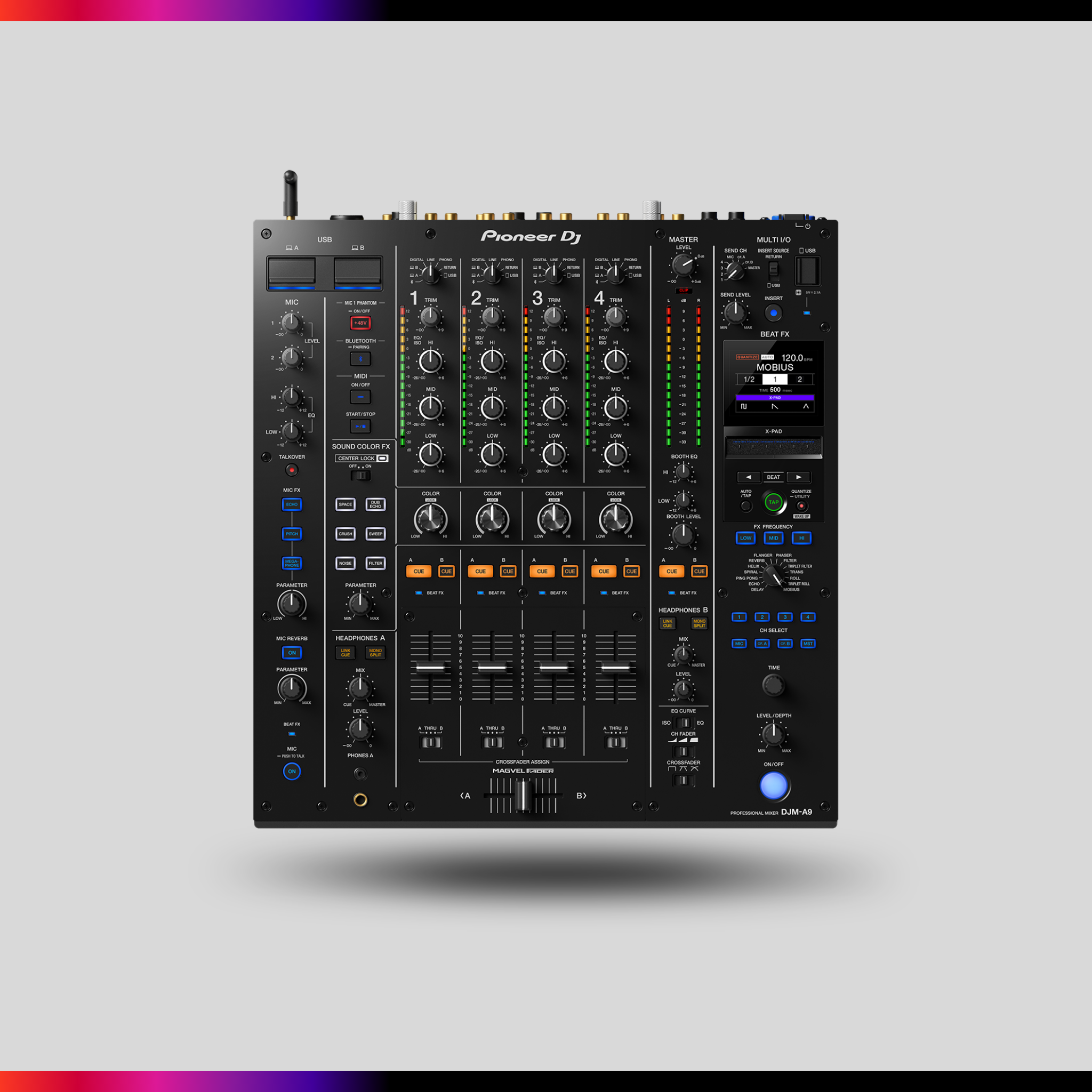

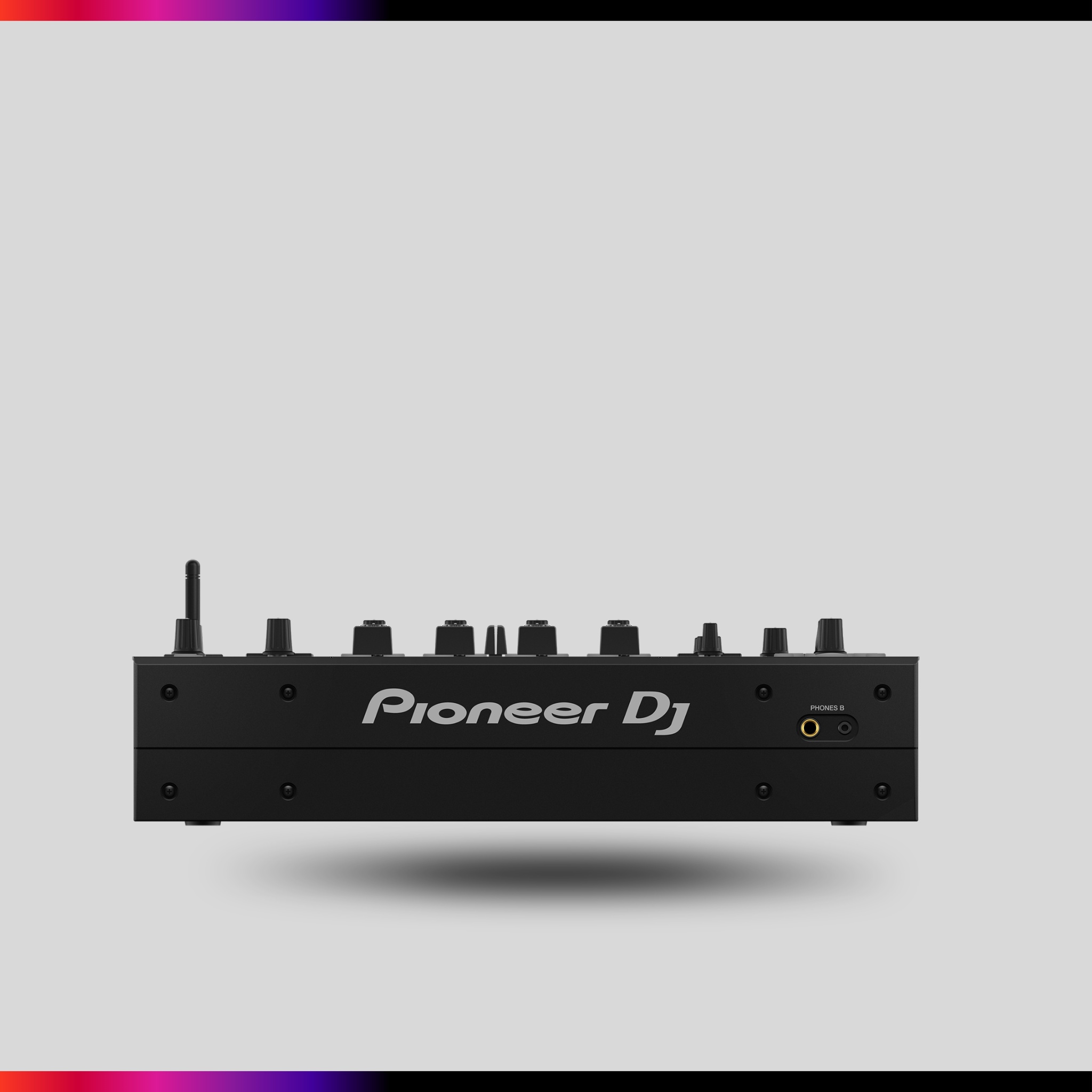

DJM-A9
4-channel professional DJ mixer (black)
The 4-channel DJM-A9 raises the bar for club standard mixers – boasting huge upgrades compared to its predecessor, the DJM-900NXS2 – with stunningly clear sound quality, enhanced playability and connectivity, and a host of new features to help you take your performances to the next level. The DJM-A9 has also been improved as a musical instrument for more emotional and dynamic performances, while retaining the functions and layout that have become club standards.
|
MIDI Control
|
Full assignable MIDI controls |
| PRO DJ LINK | Yes |
| Booth EQ | Yes |
| P-Lock Fader Caps | Yes |
| Auto Standby | Yes |
| DVS Control | rekordbox |
| Serato DJ Pro (Need to buy a license or subscription.) | |
| Software System Requirements | Visit rekordbox.com for its specifications. |
| Visit serato.com for its specifications. | |
| Bluetooth Audio Input | Wireless system : Bluetooth Ver.5.0 |
| Maximum transmission distance : Approximately 10 m in unobstructed circumstances (Transmission distances are a guideline.) | |
| Frequency band used : 2.4 GHz | |
| Modulation method : FH-SS (Frequency Hopping Spread Spectrum) | |
| Compatible Codecs : SBC, AAC | |
| Wireless LAN | Supported standards : IEEE 802.11 a/b/g/n/ac |
| Frequency band used : 2.4 GHz / 5 GHz | |
| Accessories | DJM-A9 |
| Power Cord | |
| Warranty (for some regions) | |
| Quick Start Guide | |
| Precautions for Use | |
|
Specifications
|
|
|
Dimensions (W x D x H)
|
407.4 x 107.9 x 458.3 mm |
| 407.4 x 140.7 x 458.3 mm (when the wireless antenna stands upright) | |
| Weight | 10.2 kg |
| Sampling Rate | 96 kHz |
| CH input A/D Converter | 32 bit |
| MASTER, BOOTH, REC, SEND D/A Converter | 32 bit |
| S/N Ratio Line | 105 dB |
| S/N Ratio Phono | 88 dB |
| S/N Ratio Mic | 79 dB |
| Distortion | < 0.005 % (LINE) |
|
Channels
|
|
|
EQ/ISO
|
3 band |
| EQ Range | Built-in, switchable 3-band equaliser: -26 dB ~ +6 dB dB |
|
Performance Control
|
|
|
Channels
|
4 |
| MULTI I/O | USB (Type A) |
| Sound Color FX | Space |
| Dub Echo | |
| Sweep | |
| Noise | |
| Crush | |
| Filter | |
| Beat FX | Delay |
| Echo | |
| Ping Pong | |
| Spiral | |
| Helix | |
| Reverb | |
| Flanger | |
| Phaser | |
| Filter | |
| Triplet Filter | |
| Trans | |
| Roll | |
| Triplet Roll | |
| Mobius | |
| Screen Display | Yes |
| X-PAD | Yes |
| Rekordbox Quantize | Yes |
|
Crossfader
|
|
|
Crossfader Type
|
Magvel Fader |
| Curve Assignable | Yes |
| Fader Curve | 3 |
|
Mic
|
|
|
Mic Connection
|
XLR / 1/4-inch Combo Jack |
| 1/4-inch TRS Jack | |
| Mic EQ | 2 band |
| Mic EQ Range | -12 dB ~ +12 dB |
| Phantom power | Yes |
| Microphone Effects | Echo |
| Pitch | |
| Megaphone | |
| Reverb | |
| Push-to-talk function | Yes |
| Talkover | Dedicated button |
| Talkover Attenuator | Yes |
|

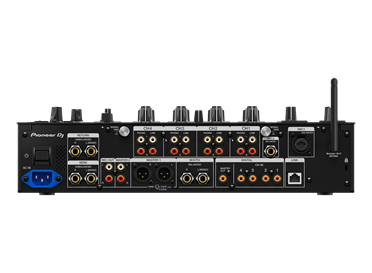

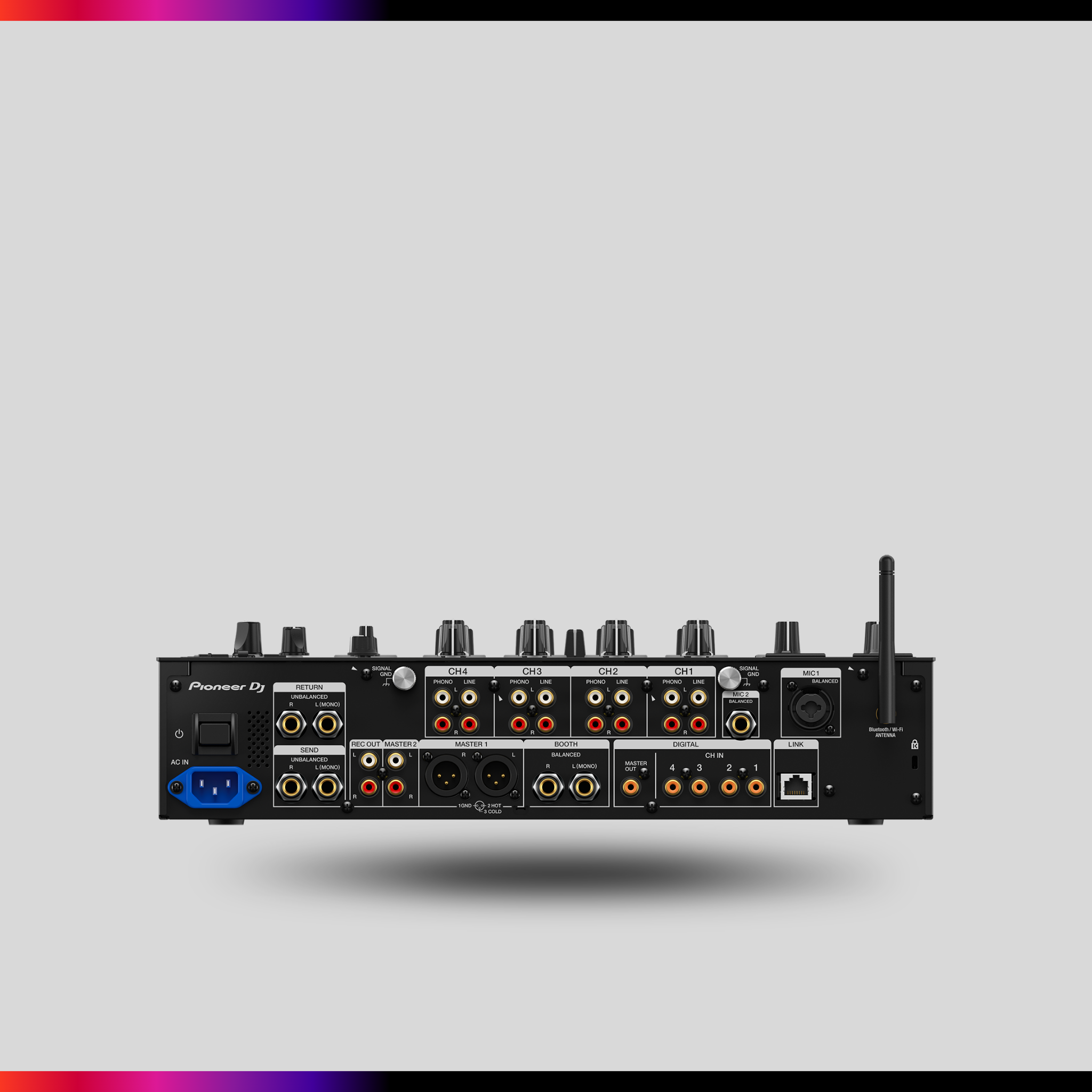

Terminals
|
|
|
Inputs
|
4 DIGITAL (Coaxial) |
| 4 LINE (RCA) | |
| 4 PHONO (RCA) | |
| Send/Return | 1 SEND (1/4-inch TS jack) |
| 1 RETURN (1/4-inch TS jack) | |
| LAN | 1 |
| Outputs | 1 MASTER (XLR, RCA) |
| 1 BOOTH (1/4 inch TRS Jack) | |
| 2 HEADPHONE MONITOR (1/4 inch Jack, mini-jack) | |
| 1 REC OUT (RCA) | |
| 1 DIGITAL (Coaxial) | |
| USB | 1 USB A port |
| 2 USB B ports | |
| 2 USB C ports |
