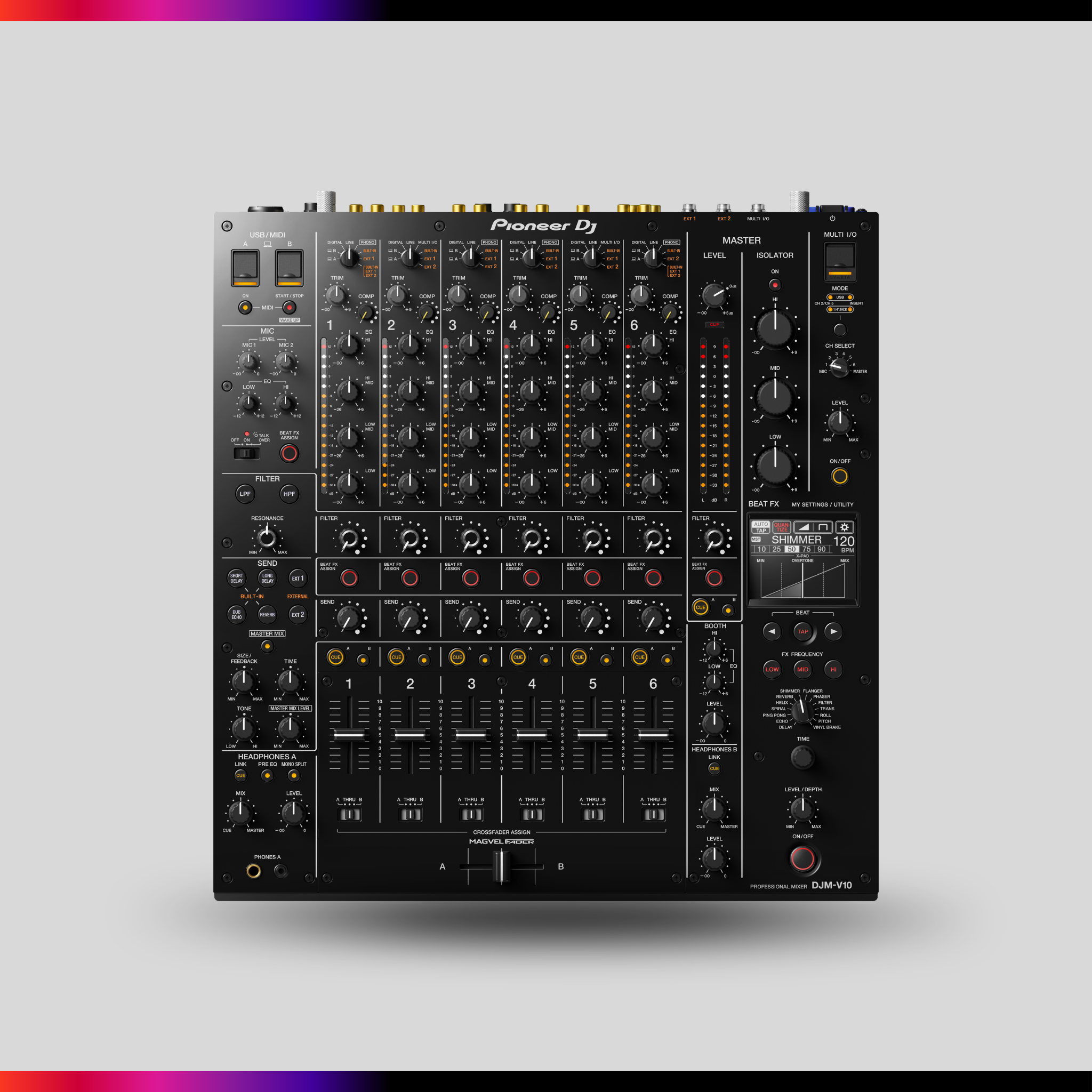

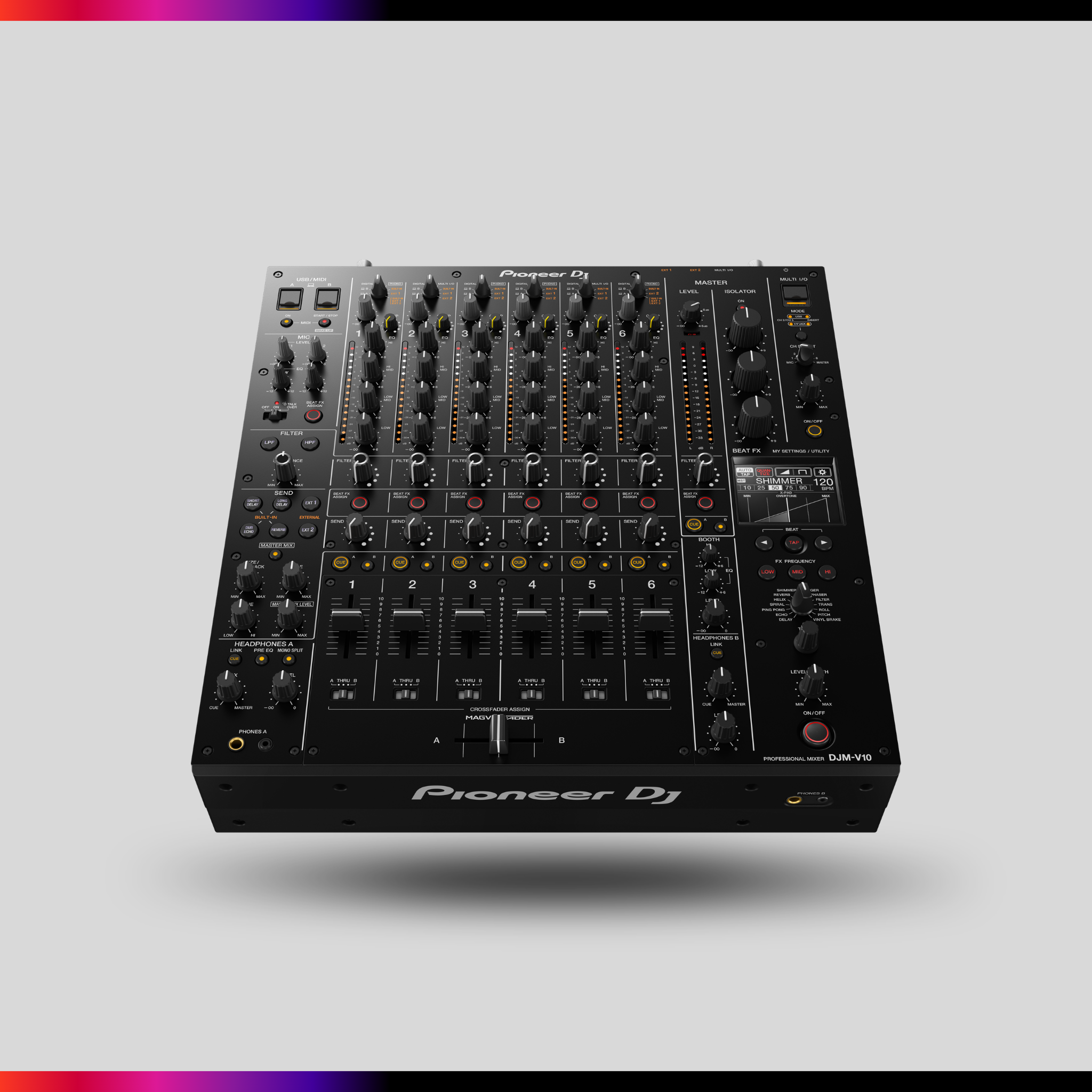

DJM-V10
Creative style 6-channel professional DJ mixer
Craft your sound
Forge a new sound with the DJM-V10; a new breed of mixer, born of fresh thinking. It’s built to allow the most creative DJs to craft original soundscapes.
This 6-channel unit – loaded with unique features – produces warm audio full of energy and presence. So, take full control of your mix and get ready to create something the crowd has never heard before – either performing solo or back-to-back with another DJ.
| Main Features | |
|
MIDI Control
|
Full assignable MIDI controls |
| DVS Control | rekordbox |
| Serato DJ Pro | |
| TRAKTOR PRO 3 | |
| Accessories | DJM-V10 |
| Power Cord | |
| Warranty (for some regions) | |
| Quick Start Guide | |
| Precautions for Use | |
|
Specifications
|
|
|
Width
|
437.6 mm |
| Depth | 467 mm |
| Height | 107.9 mm |
| Weight | 11.9 kg |
| Sampling Rate | 96 kHz |
| A/D Converter | 32 bit |
| D/A Converter | 32 bit |
| S/N Ratio Line | 105 dB |
| S/N Ratio Phono | 88 dB |
| S/N Ratio Mic | 79 dB |
|
Channels
|
|
|
EQ
|
4 band |
|
Performance Control
|
|
|
Channels
|
6 |
| Filter | HPF |
| LPF | |
| SEND | Short Delay |
| Long Delay | |
| Dub Echo | |
| Reverb | |
| 2 Externals (1/4-inch TS jack) | |
| MULTI I/O | 1/4-inch jack |
| USB (Type A) | |
| Beat FX | Delay |
| Echo | |
| Ping Pong | |
| Spiral | |
| Helix | |
| Reverb | |
| Shimmer | |
| Flanger | |
| Phaser | |
| Filter | |
| Trans | |
| Roll | |
| Pitch | |
| Vinyl Brake | |
|
Crossfader
|
|
|
Fader Curve
|
3 |
|
Mic
|
|
|
Mic Connection
|
XLR / 1/4-inch Combo Jack |
| 1/4-inch TRS Jack | |
|

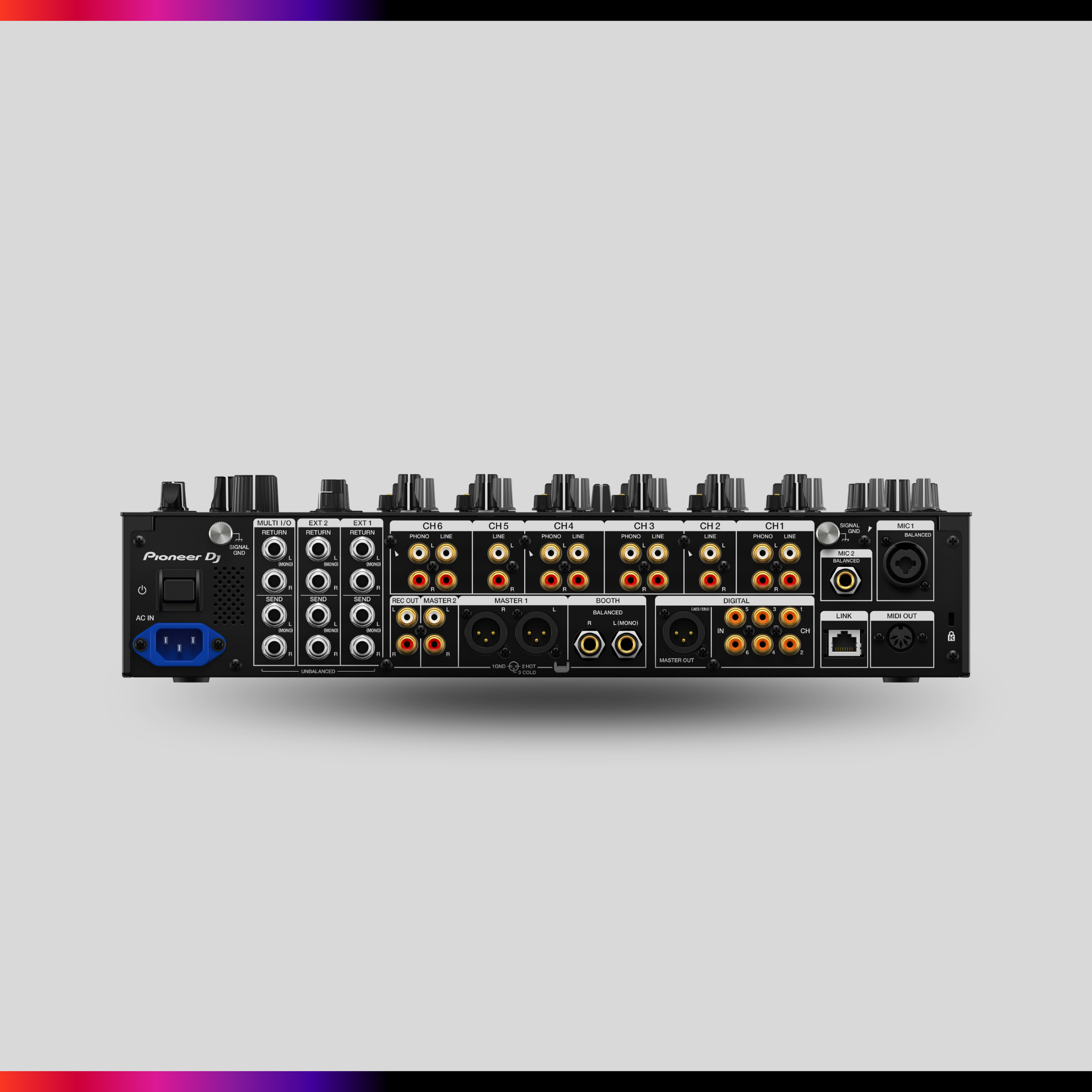

Terminals
|
|
|
Inputs
|
6 DIGITAL (Coaxial) |
| 6 LINE (RCA) | |
| 4 PHONO (RCA) | |
| Send/Return | 3 SEND (1/4-inch TS jack) |
| 3 RETURN (1/4-inch TS jack) | |
| LAN | 1 |
| Outputs | 2 MASTER (XLR, RCA) |
| 1 BOOTH (1/4 inch TRS Jack) | |
| 4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack) | |
| 1 REC OUT (RCA) | |
| 1 DIGITAL (AES/EBU) | |
| 1 MIDI (DIN) | |
| USB | 2 USB B ports |
| 1 USB A port |
* The specifications and design of this product are subject to change without notice.
