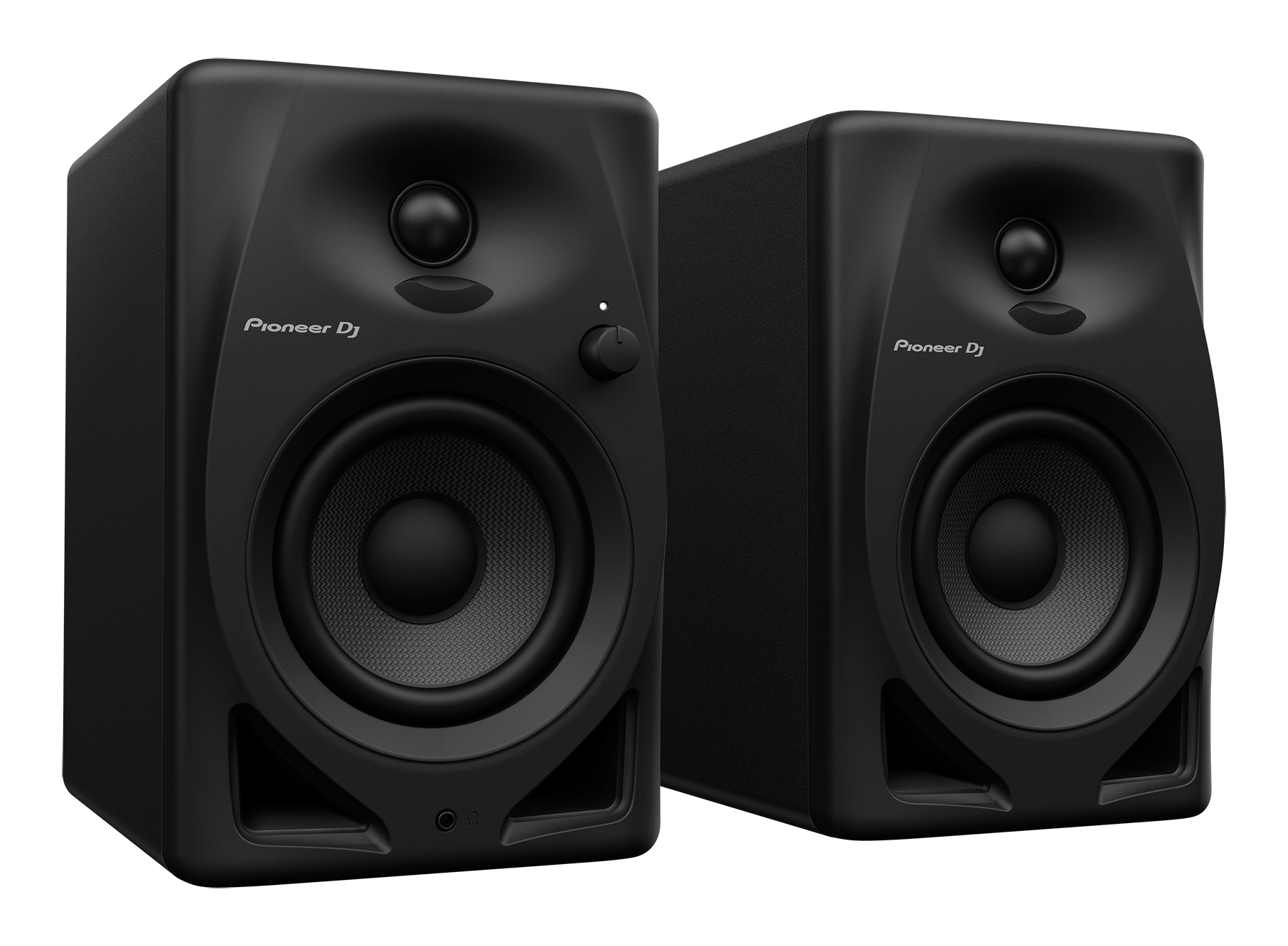

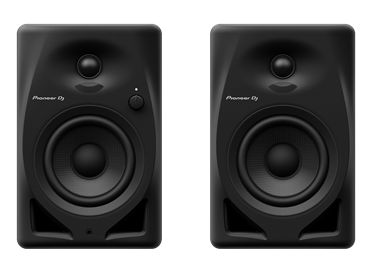

4” desktop monitor system (Black)
The DM series speakers deliver balanced, punchy bass sound and they can pump out extra power thanks to the new Class D amplifier and 4-inch woofer in each unit. Flick the switch to change from DJ mode to Production mode and the DSP settings will automatically create the best sound for each application.
|
Type :
|
2-way bass reflex, active monitor speakers |
| Tweeter : |
3/4” (19 mm) soft dome |
| Woofer : |
4-inch Fiberglass |
| Accessories : |
DM-40D |
|
Power cord |
|
Audio converter cable (3.5 mm stereo mini plug to RCA) |
|
Speaker cord |
|
Bottom cushion |
|
Quick Start Guide |
|
Precautions for Use |
|
Warranty |
|
Specifications
|
|
|
Dimensions (W x H x D) :
|
Lch: 146 x 227 x 223 mm / 5.75” x 8.94” x 8.78” |
|
Rch: 146 x 227 x 212 mm / 5.75” x 8.94” x 8.35” |
| Weight : |
Lch: 2.5 kg / 5.5 lbs. |
|
Rch: 2.2 kg / 4.9 lbs. |
| Amplifier Output : |
Class D with DSP |
|
Lch: 19 W / 4 Ω |
|
Rch: 19 W / 4 Ω |
| Impedance : |
10 kΩ |
| Power Supply : |
AC 100-240 V, 50 Hz / 60Hz |
| Enclosure : |
Bass reflex |
| Enclosure material : |
MDF vinyl laminate |
| Power Consumption : |
20 W |
| Power consumption during |
|
| standby mode : |
0.3 W or less |
|
|
|

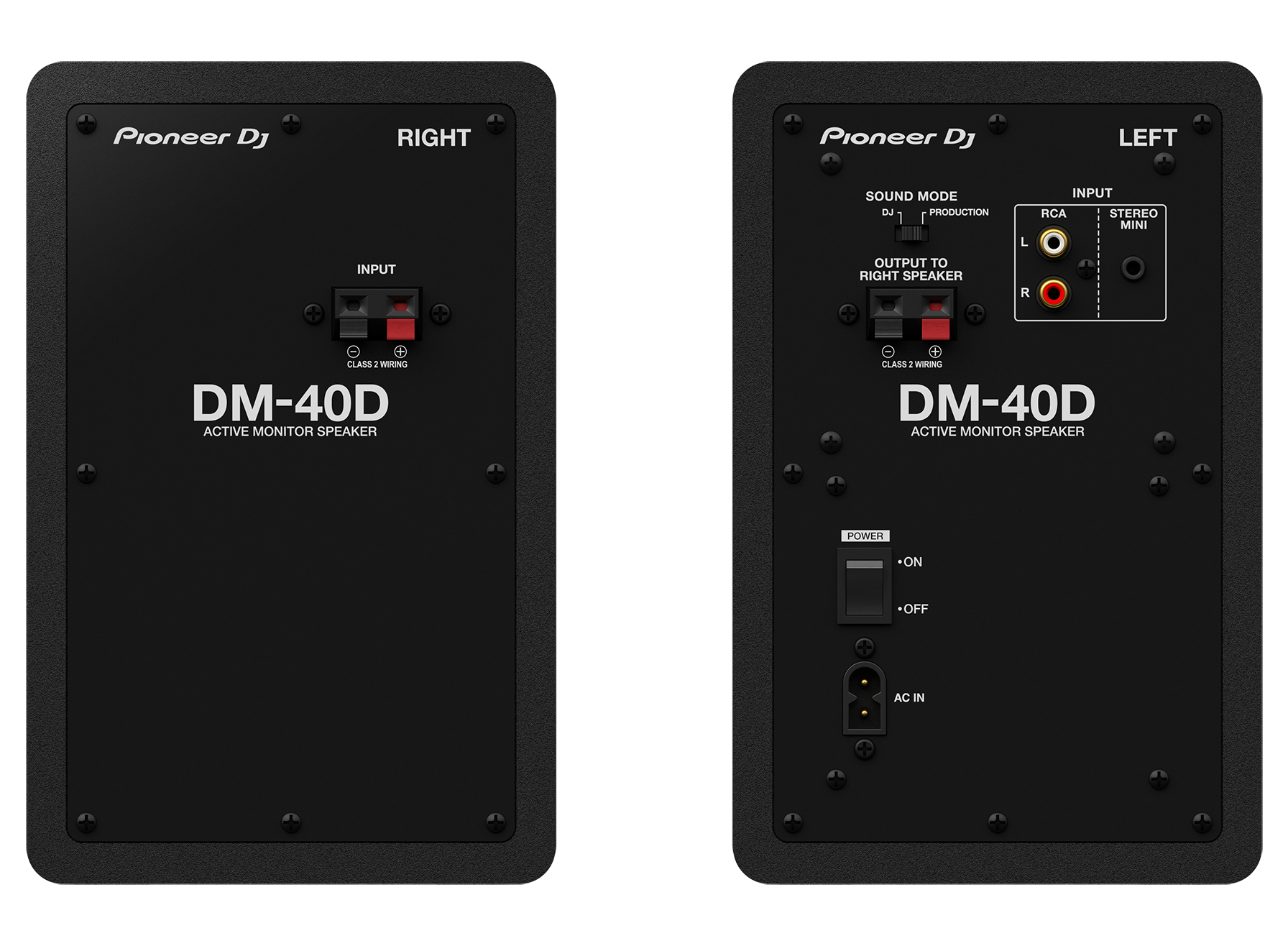

Terminal Inputs :
|
RCA pin jack x 1 (unbalanced input) |
|
3.5 mm stereo mini jack x 1 (Unbalanced input) |
| Outputs : |
3.5 mm stereo mini jack x 1 |
|
