DM-40D-BT

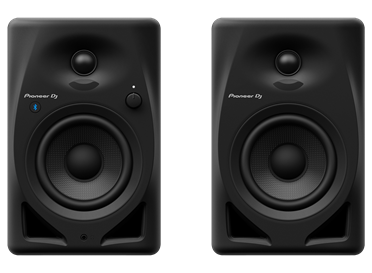

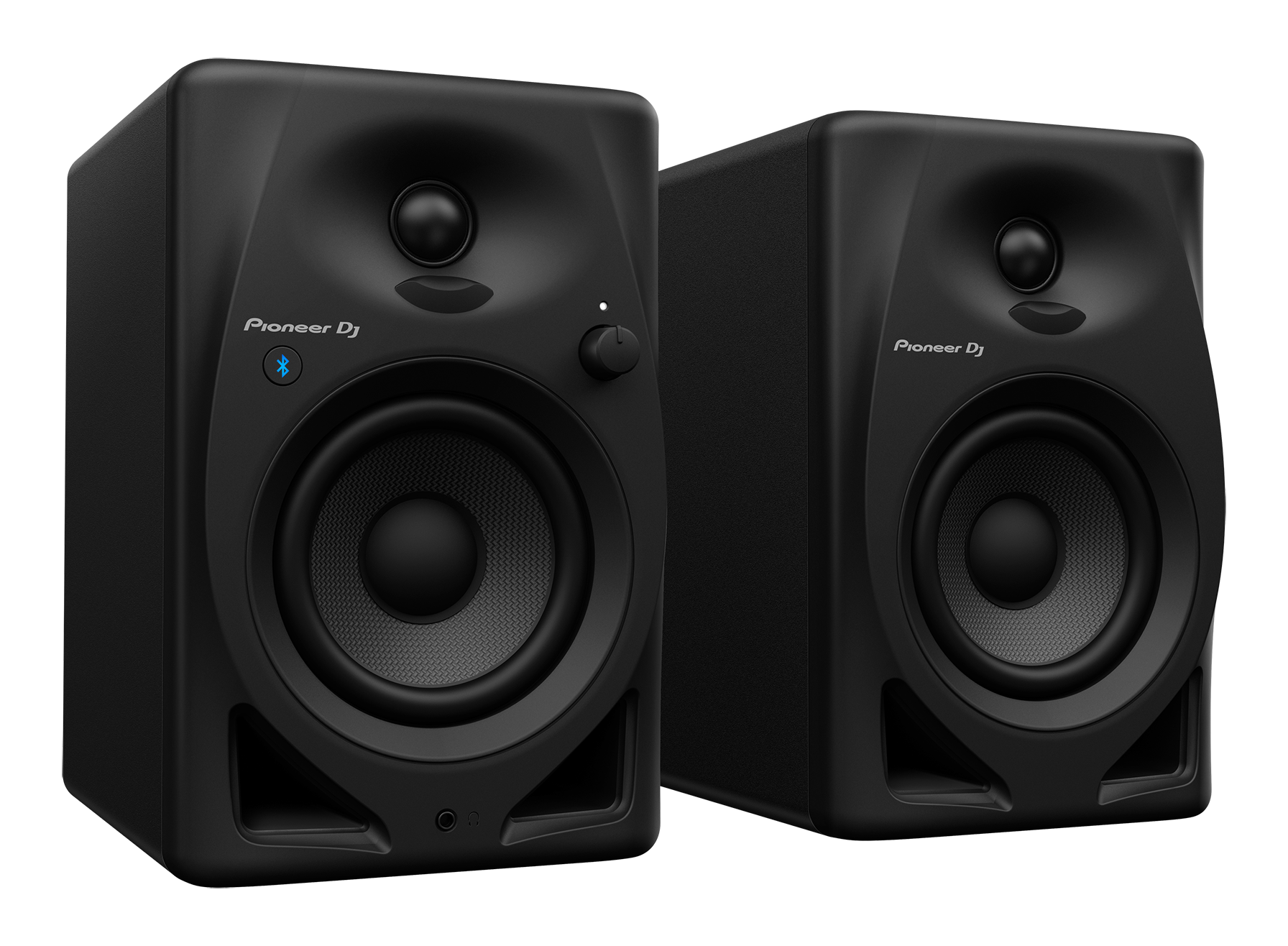

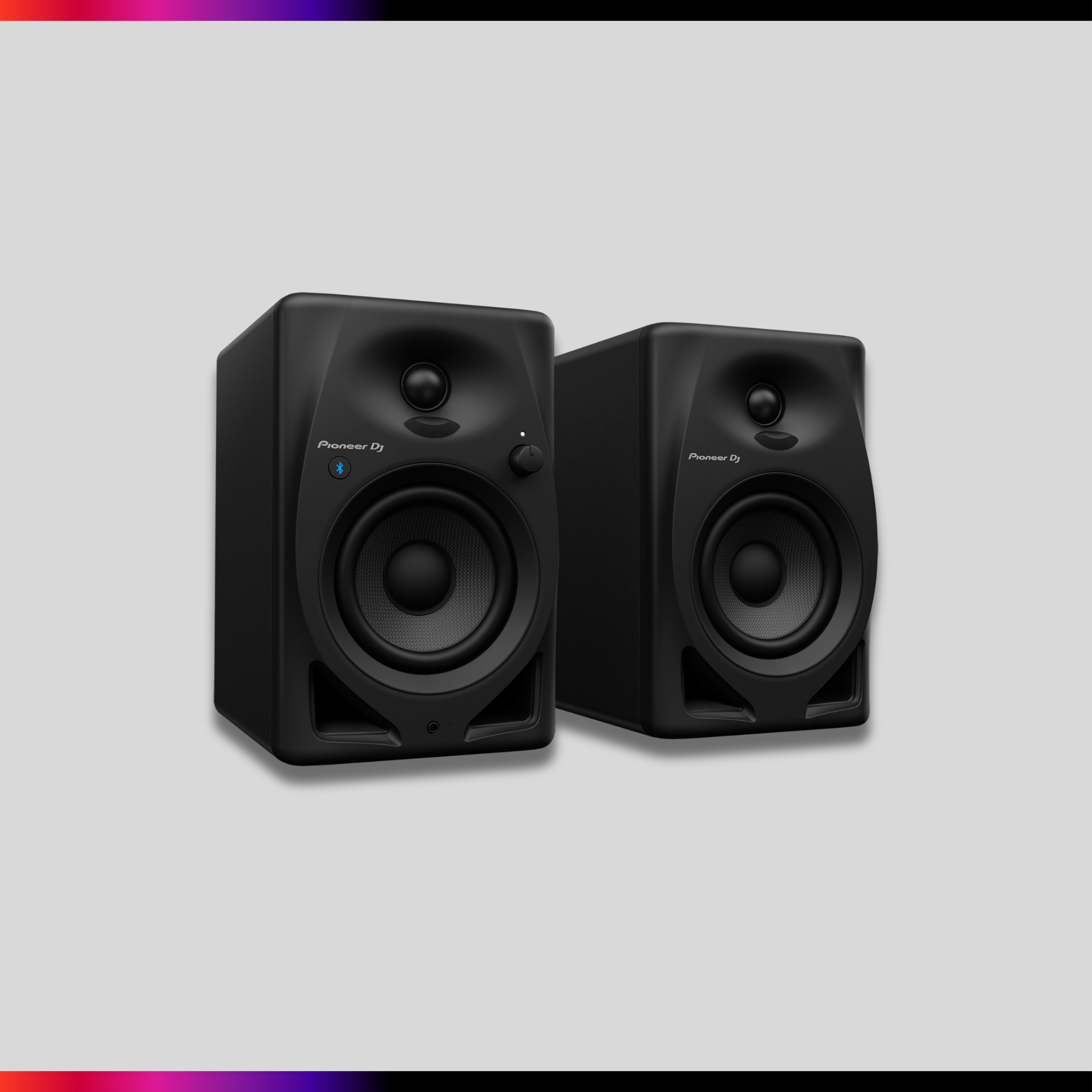

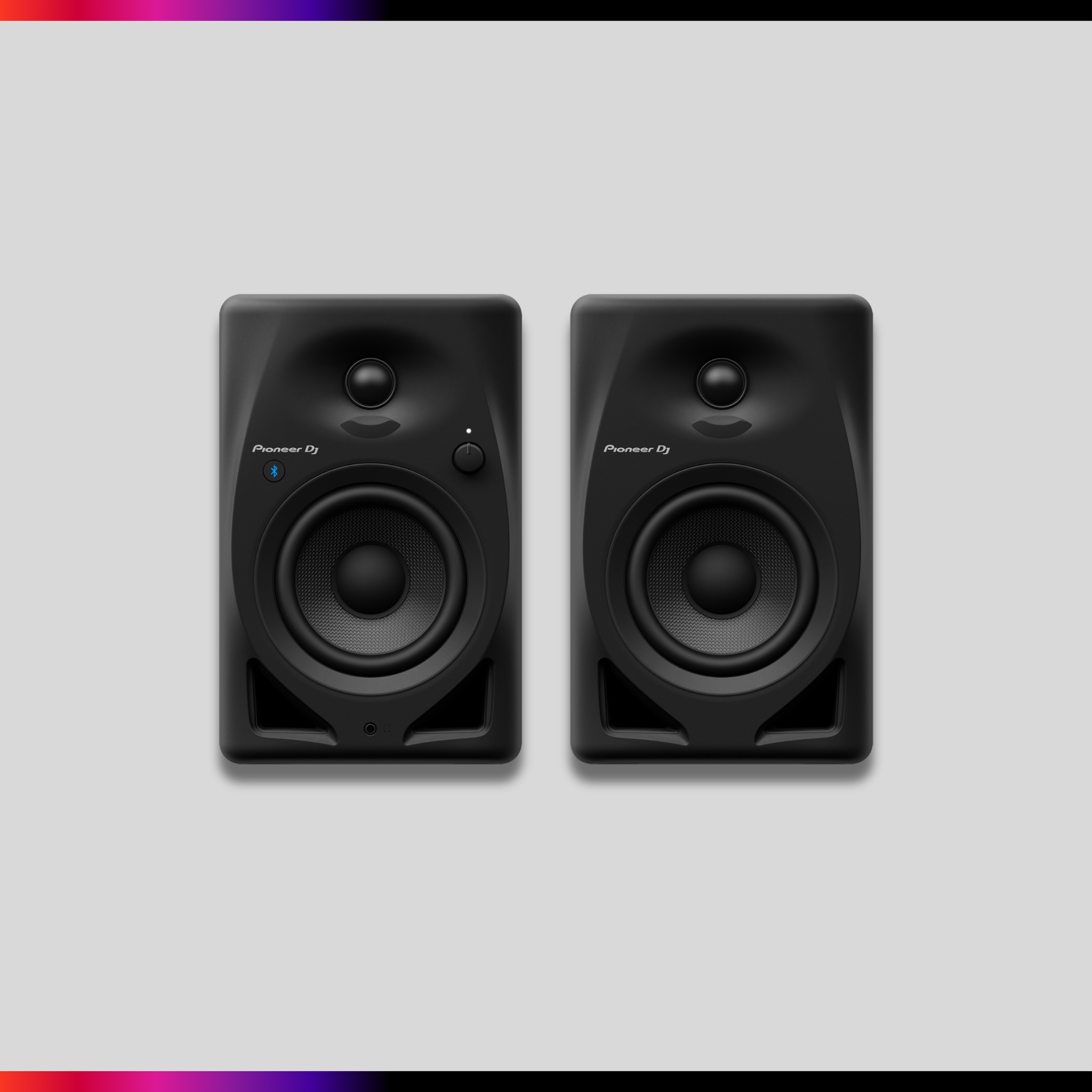

4” desktop monitor system with Bluetooth® functionality (Black)
The DM series speakers deliver balanced, punchy bass sound and they can pump out extra power thanks to the new Class D amplifier and 4-inch woofer in each unit. Flick the switch to change from DJ mode to Production mode and the DSP settings will automatically create the best sound for each application.
Specificatons
|
Type
|
2-Way Active Speaker |
| Tweeter | 3/4” (19 mm) soft dome |
| Woofer | 4 inch cone |
| Accessories | DM-40D-BT |
| Power cord | |
| Audio converter cable (3.5 mm stereo mini plug to RCA) | |
| Speaker cord | |
| Bottom cushion | |
| Quick Start Guide | |
| Precautions for Use | |
| Warranty | |
|
Dimensions (W x H x D)
|
Lch: 146 x 227 x 223 mm / 5.75” x 8.94” x 8.78” |
| Rch: 146 x 227 x 212 mm / 5.75” x 8.94” x 8.35” | |
| Weight | Lch: 2.5 kg / 5.5 lbs. |
| Rch: 2.2 kg / 4.9 lbs. | |
| Amplifier Output | Class D with DSP |
| Lch: 19 W / 4 Ω | |
| Rch: 19 W / 4 Ω | |
| Impedance | 10 kΩ |
| Power Supply | AC 100-240 V, 50 Hz / 60Hz |
| Enclosure | Bass reflex |
| Enclosure material | MDF vinyl laminate |
| Power Consumption | 20 W |
| Power consumption during standby mode | 0.3 W or less |
|

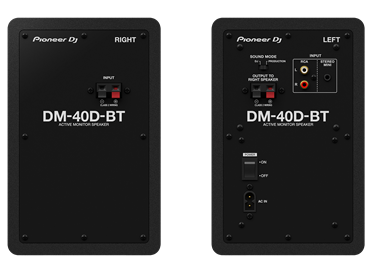

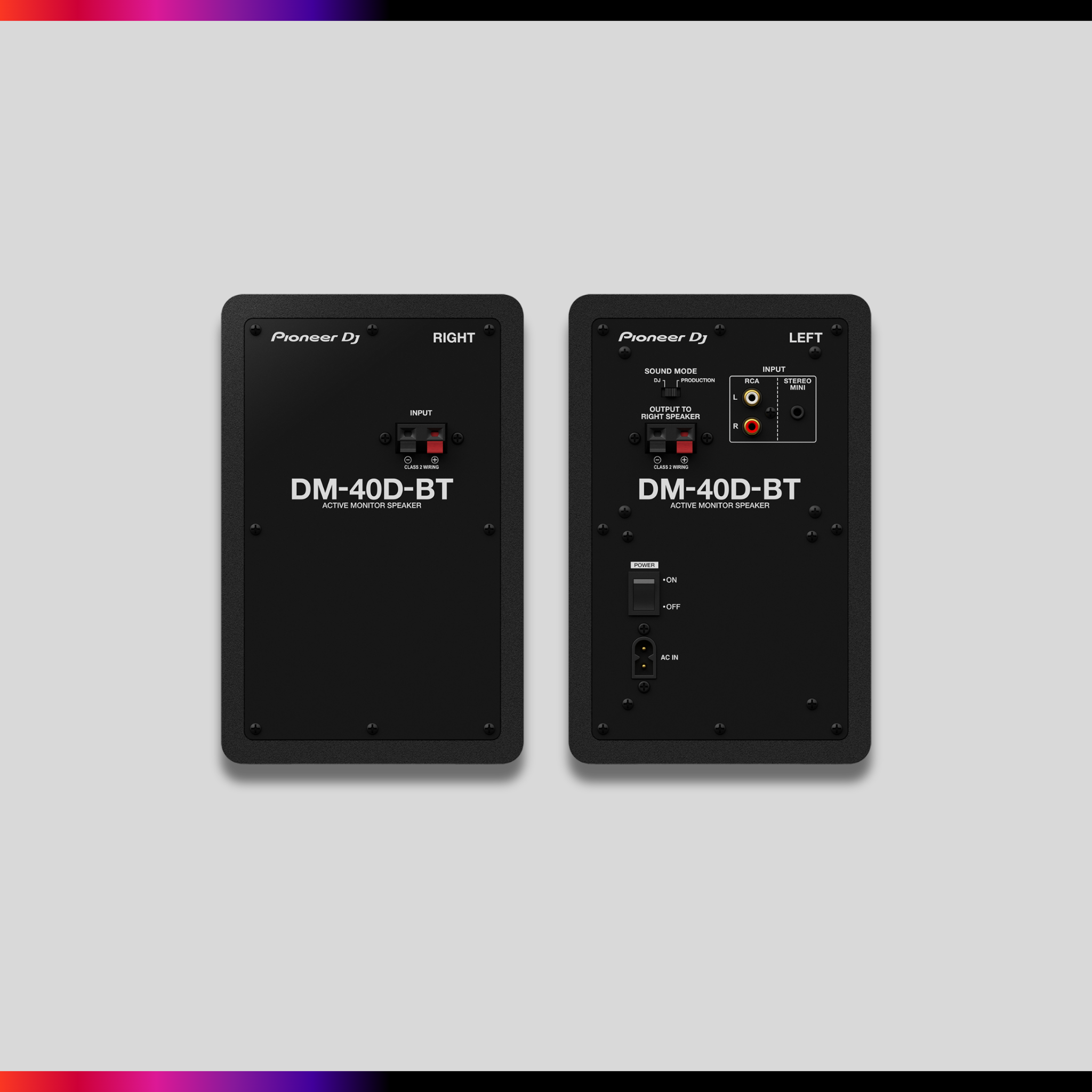

Terminals
|
|
|
Inputs
|
RCA pin jack x 1 (unbalanced input) |
| 3.5 mm stereo mini jack x 1 (Unbalanced input) | |
| Outputs | 3.5 mm stereo mini jack x 1 |
|
BLUETOOTH Output
|
Bluetooth® Specification Class 2 |
| Supported Codec | SBC, AAC |
| Version | Bluetooth® Specification Ver. 5.0 |
