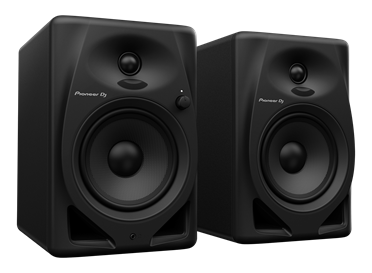

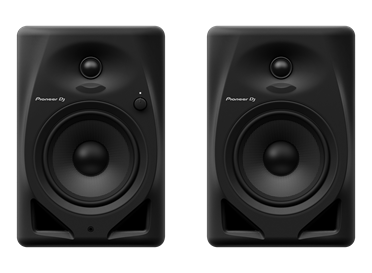

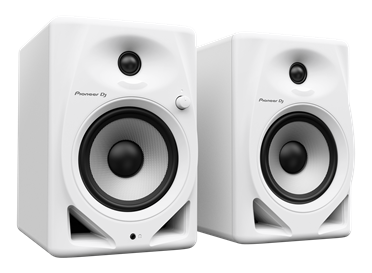

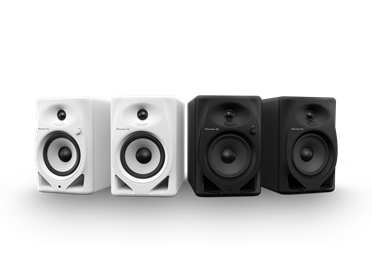

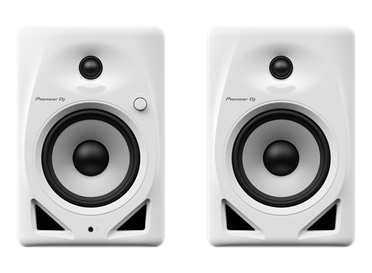

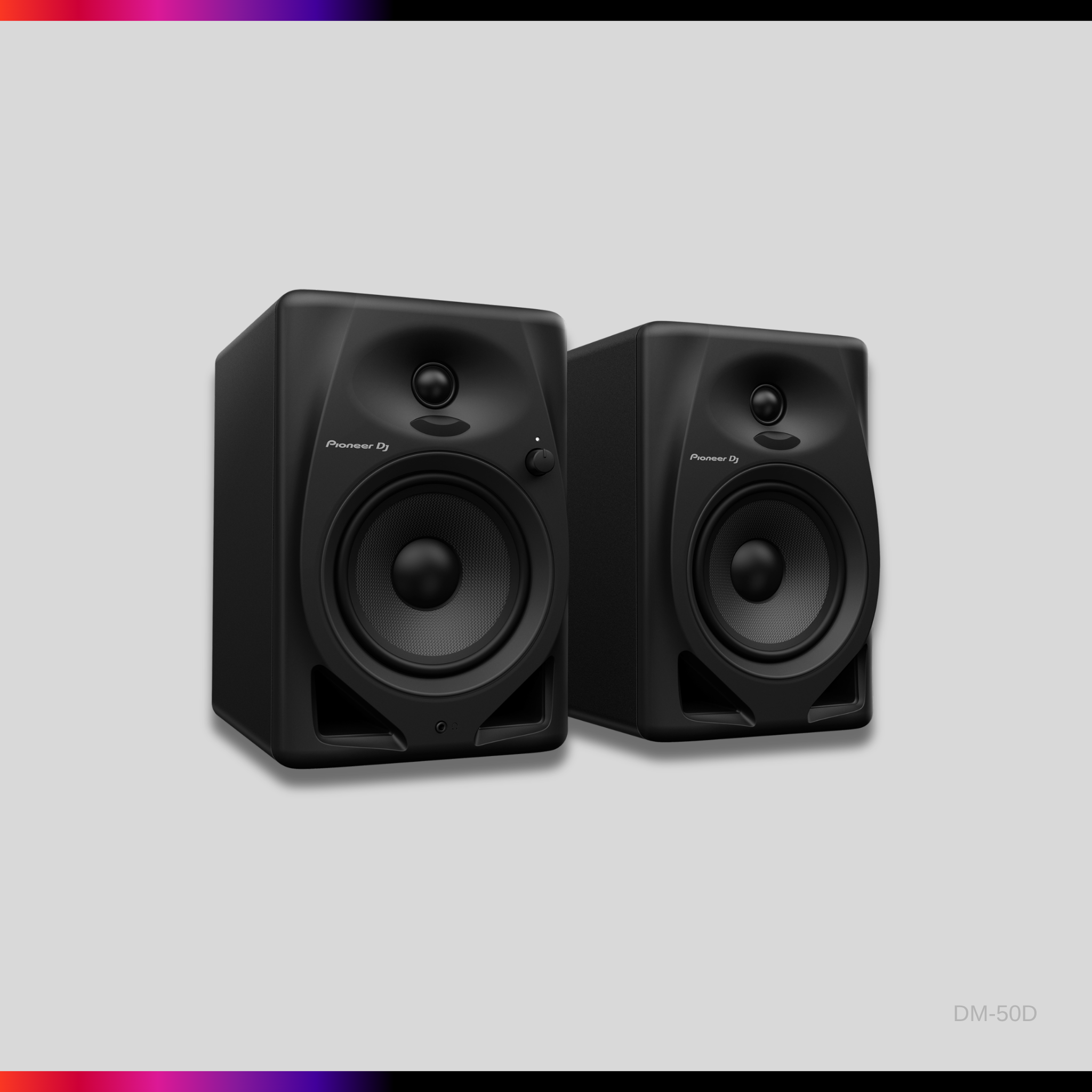

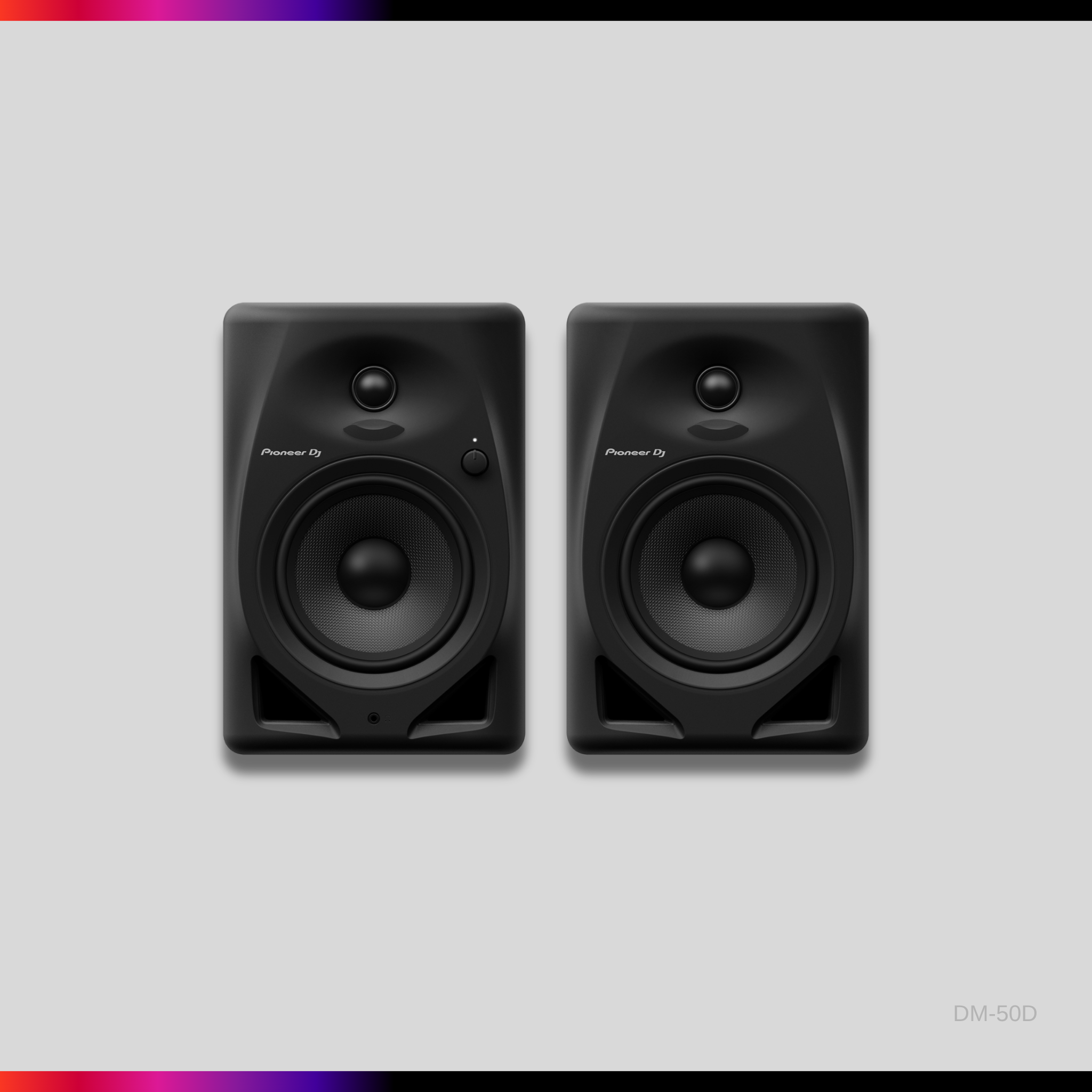

DM-50D
5” desktop monitor system
The DM series speakers deliver balanced, punchy bass sound and they can pump out extra power thanks to the new Class D amplifier and 5-inch woofer in each unit. Flick the switch to change from DJ mode to Production mode and the DSP settings will automatically create the best sound for each application.
| Main Features | |
|
Type
|
2-way bass reflex, active monitor speakers |
| Tweeter | 3/4” (19 mm) soft dome |
| Woofer | 5" (127 mm) fiberglass cones |
| Accessories | DM-50D |
| Power cord | |
| Audio converter cable (3.5 mm stereo mini plug to RCA) | |
| Speaker cord | |
| Bottom cushion | |
| Quick Start Guide | |
| Precautions for Use | |
| Warranty | |
|
Specifications
|
|
|
Dimensions (W x H x D)
|
Lch: 175 x 262 x 257 mm / 6.89” x 10.32” x 10.12” |
| Rch: 175 x 262 x 247 mm / 6.89” x 10.32” x 9.72” | |
| Weight | Lch: 3.9 kg / 8.6 lbs. |
| Rch: 3.5 kg / 7.7 lbs. | |
| Amplifier Output | Class D with DSP |
| Lch: 25 W / 4 Ω | |
| Rch: 25 W / 4 Ω | |
| Impedance | 10 kΩ |
| Power Supply | AC 100-240 V, 50 Hz / 60Hz |
| Enclosure | Bass reflex |
| Enclosure material | MDF vinyl laminate |
| Power Consumption | 25 W |
| Power consumption during standby mode | 0.3 W or less |
|

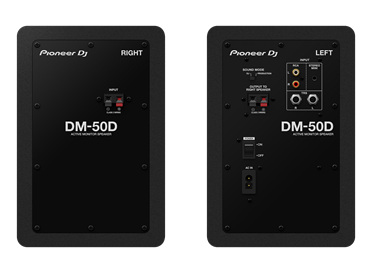

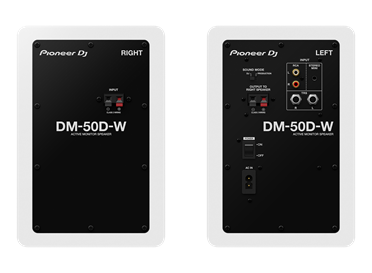

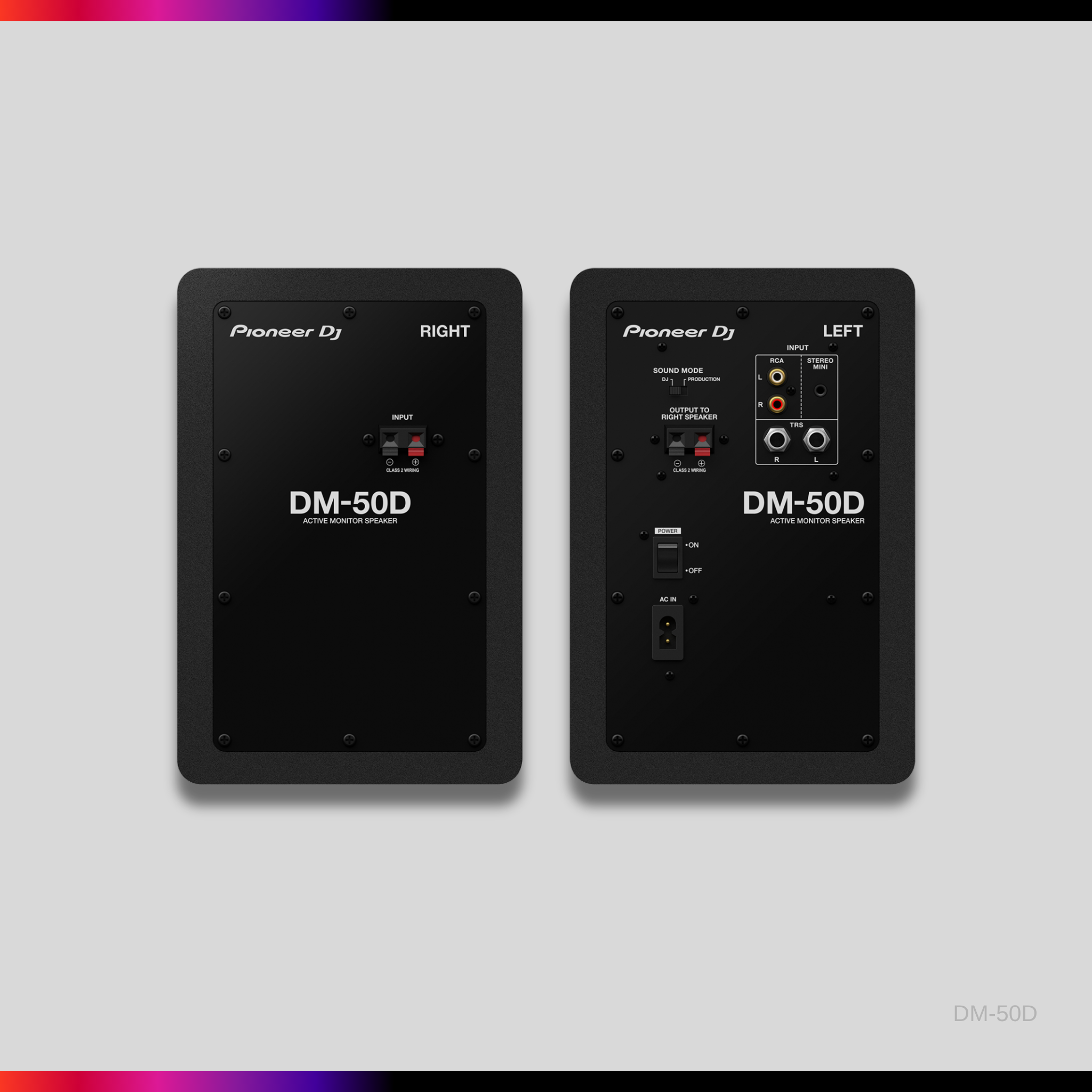

Terminals
|
|
|
Inputs
|
1/4” TRS jack x 1 (balanced input) |
| RCA pin jack x 1 (unbalanced input) | |
| 3.5 mm stereo mini jack x 1 (Unbalanced input) | |
| Outputs | 3.5 mm stereo mini jack x 1 |
