Euphonia
Professional 4-channel rotary mixer
| Specifications | |
|
Max. external dimensions (W × D × H)
|
429.2 × 331.0 × 119.9 mm / 16.90" × 13.03" x 4.72" |
| Main unit weight | 9.5 kg / 20.94 lbs. |
| Frequency response | 20 Hz － 40 kHz (LINE) |
| S/N Ratio | 107 dB (USB, DIGITAL IN) |
| 88 dB (PHONO) | |
| 105 dB (LINE) | |
| 79 dB (MIC) | |
| Power requirements | AC 110 V － 240 V, 50 Hz / 60 Hz |
| Power consumption | 43 W |
| Accessories | Power cord |
| Warranty (for some regions) | |
| Quick start guide | |
| Precautions for use | |
| Compatible software | rekordbox |
| Serato DJ Pro | |
|

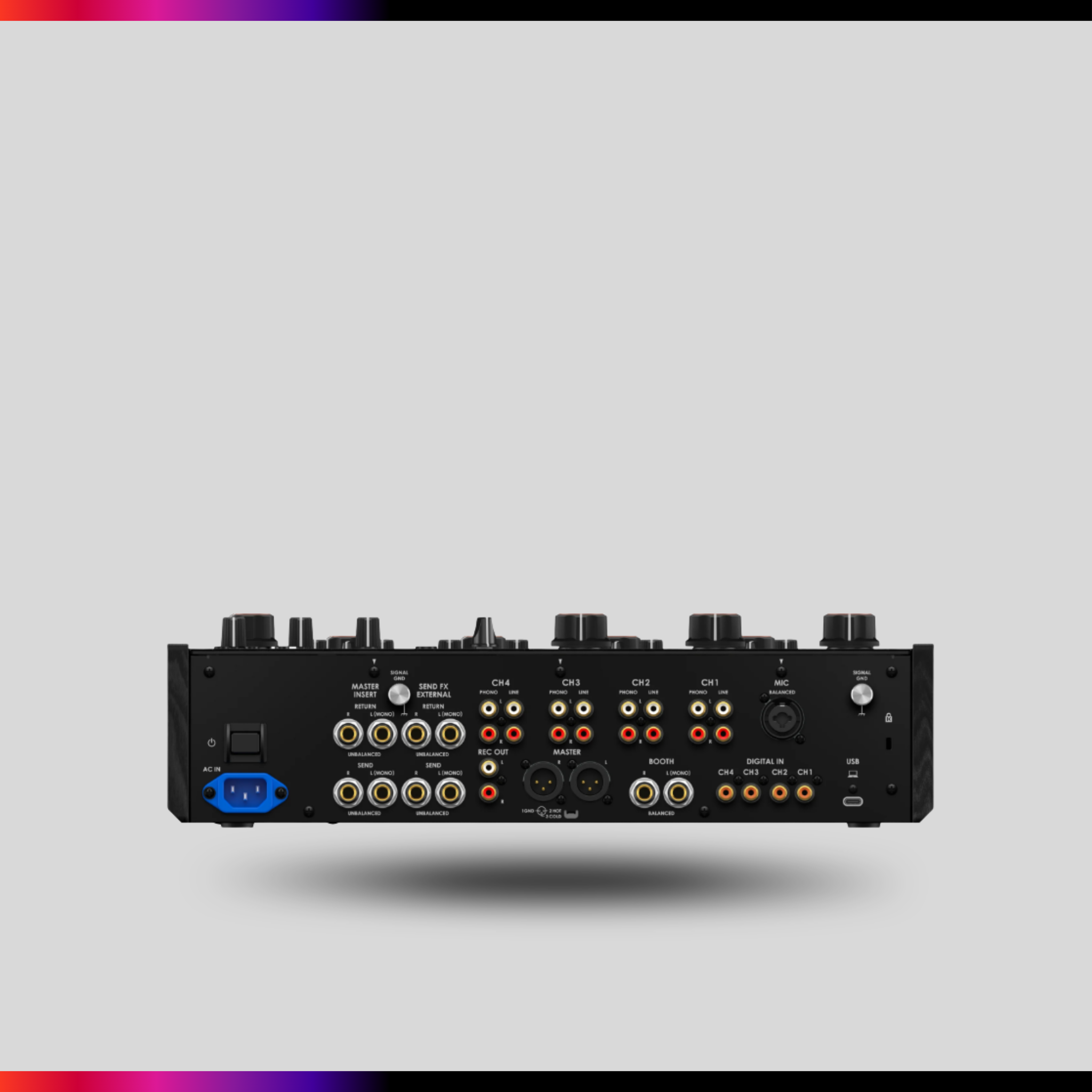

Terminals
|
|
| Inputs | DIGITAL IN × 4 (coaxial) |
| LINE × 4 (RCA) | |
| PHONO × 4 (RCA) | |
| MIC x 1 (XLR & 1/4" TRS jack) | |
| Outputs | MASTER × 1 (XLR) |
| BOOTH × 1 (1/4" TRS jack) | |
| REC × 1 (RCA) | |
| PHONES × 2 (1/4" stereo phone jack, 3.5 mm stereo mini jack) | |
| USB | USB Type-C × 1 |
| Others | SEND × 2 (1/4" TS jack) |
| RETURN × 2 (1/4" TS jack) |
