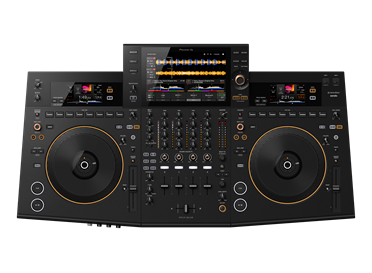

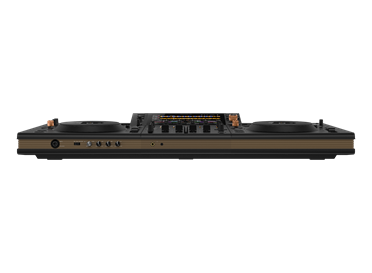

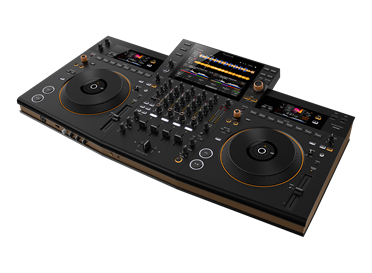

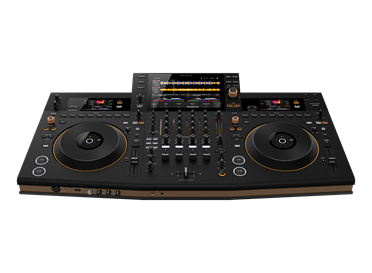

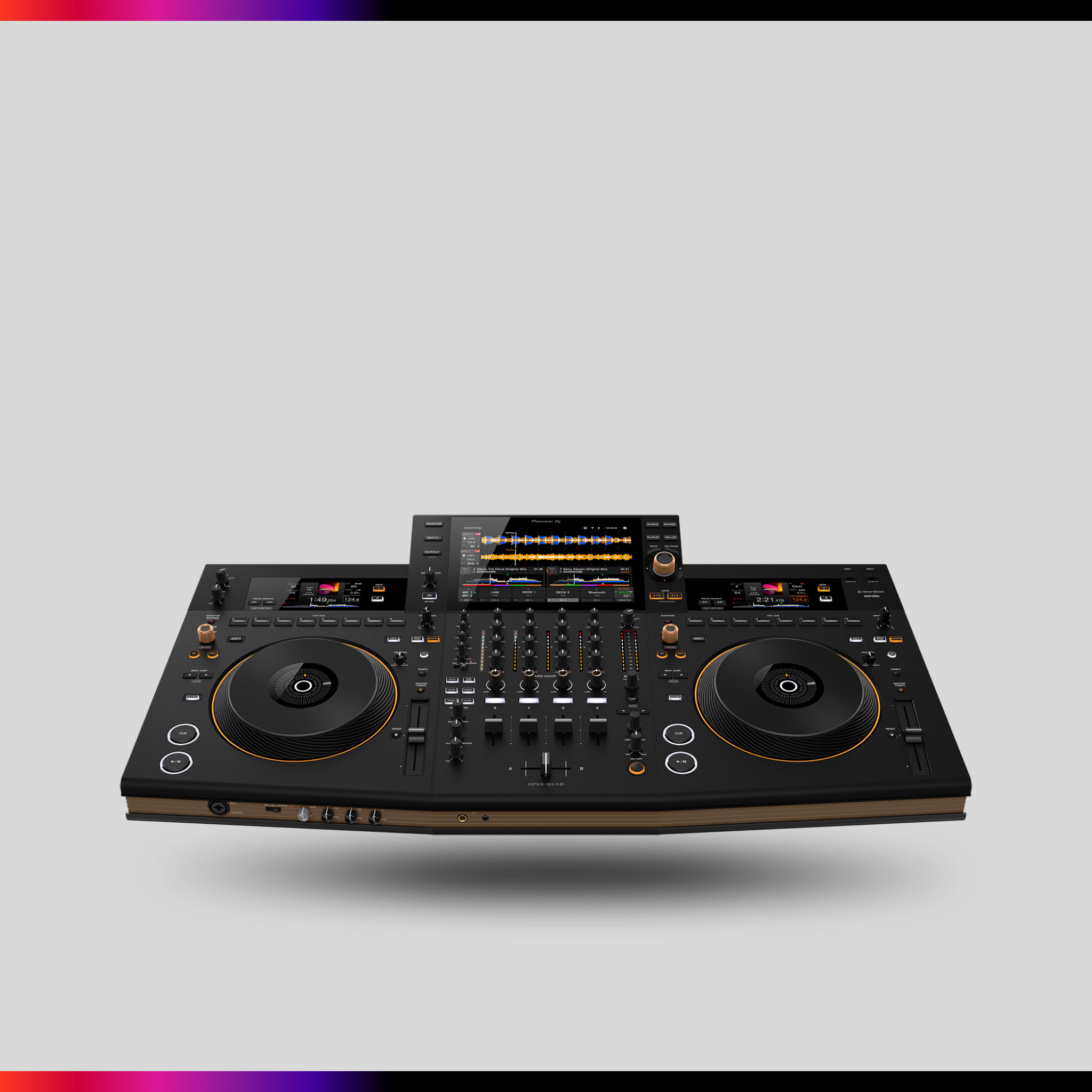

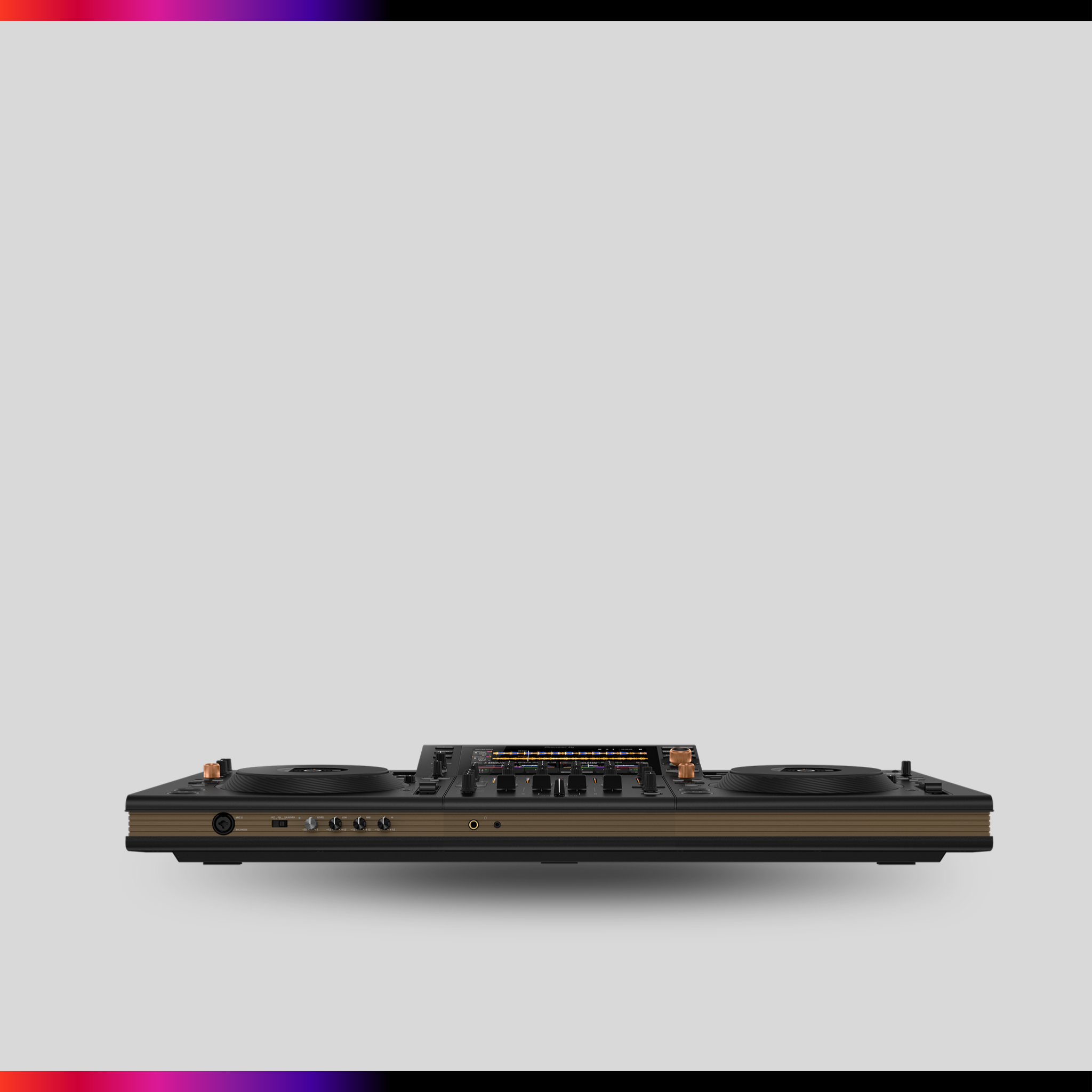

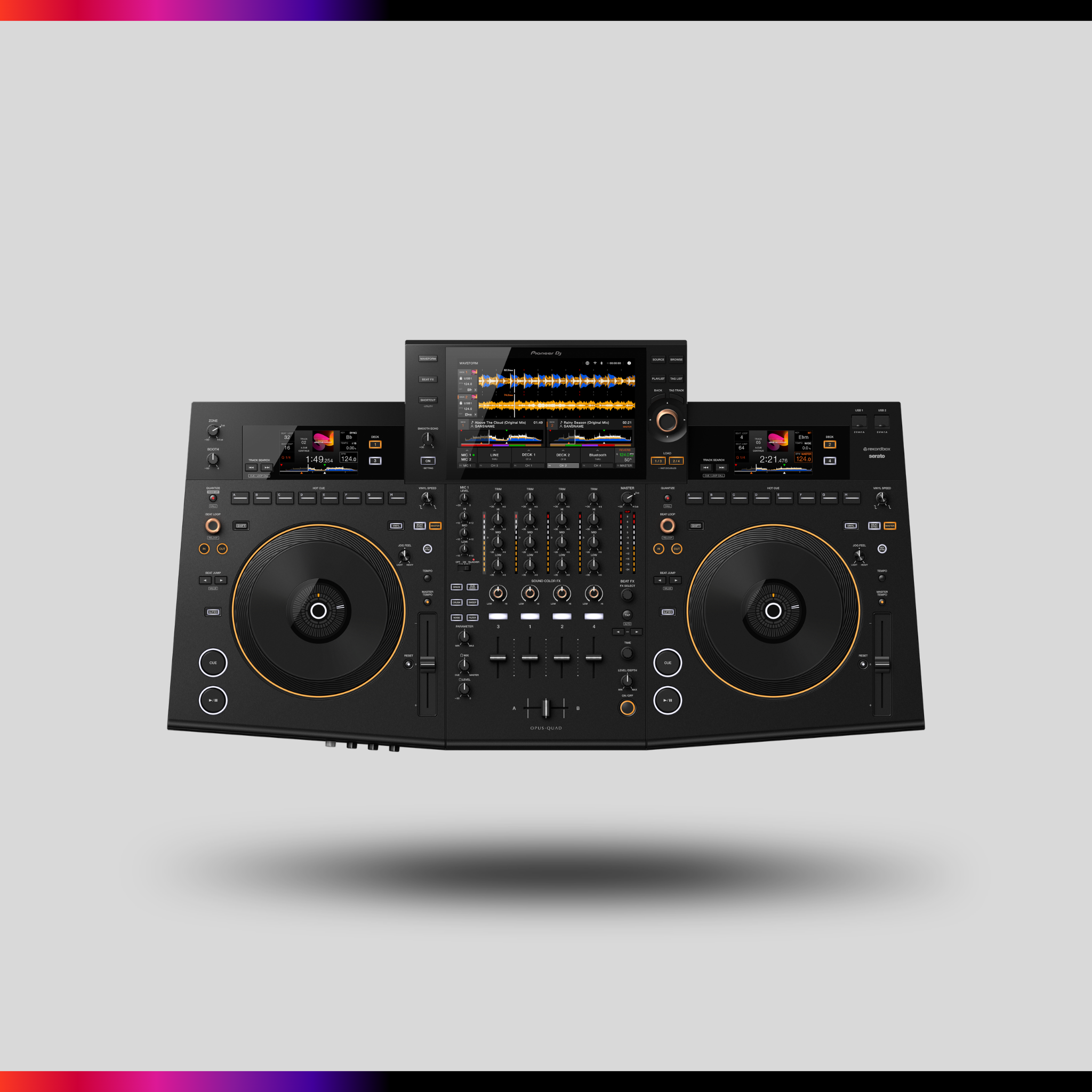

OPUS-QUAD
Professional all-in-one DJ system - Black
The Art of Music
This new professional all-in-one DJ system puts you in control of the music, like the conductor of an orchestra. Creating harmony between beautiful design and musical playability, it includes new and evolved features such as standalone 4-deck playback. All this combines to provide a spectacular DJ experience that you can harness to inspire your audience in any space or location.
| Main Features | |
|
Supported music file formats
|
MP3 |
| AAC | |
| WAV | |
| AIFF | |
| Apple Lossless | |
| FLAC | |
| File systems | FAT16 |
| FAT32 | |
| exFAT | |
| HFS+ | |
| (NTFS isn’t supported.) | |
| Compatible DJ Software | rekordbox for Mac/Windows: Hardware Unlock |
| rekordbox for iOS/Android | |
| Serato DJ Pro: Hardware Unlock | |
| USB record | Yes |
| MIDI Control | Yes |
| Plug and Play | Yes |
| Auto Standby | Yes |
| Accessories | OPUS-QUAD |
| Power cord | |
| Quick Start Guide | |
| Precautions for Use | |
| Warranty (Only products in Europe. Products in North America and Japan include warranty information in the “Precautions for Use”) | |
|
Specifications
|
|
|
Width
|
925.7 mm |
| Depth | 499.7 mm |
| Height | 142 mm |
| Weight | 13.2 kg |
| Dimensional Outline drawing | Click here for the details. |
| MASTER DA converter | 32 bit |
| A/D Converter | 24 bit |
| Signal-to-Noise Ratio | USB: 114 dB |
| LINE: 96 dB | |
| PHONO: 85 dB | |
| MIC: 79 dB | |
| Power Supply | AC 100-240 V, 50 Hz / 60Hz |
| Power Consumption | 60 W |
| Sampling Rate | 44.1 kHz |
| Distortion | USB: 0.003 % |
| LINE: 0.005 % | |
| Frequency Range | 20 - 20000 Hz |
|
Performance Control
|
|
|
Channels
|
4 |
| Deck Control | 4 (USB storage device) |
| 4 (DJ Software control) | |
| Jog Wheel | 206 mm |
| Jog Feeling | Yes |
| Sound Color FX | Space |
| Dub Echo | |
| Sweep | |
| Noise | |
| Crush | |
| Filter | |
| Beat FX | Delay |
| Echo | |
| Ping Pong | |
| Spiral | |
| Reverb | |
| Trans | |
| Filter | |
| Flanger | |
| Phaser | |
| Pitch | |
| Slip Roll | |
| Roll | |
| Vinyl Brake | |
| Helix | |
| Hot Cues | 8 per deck |
| Beat Loop | Yes |
| Beat Jump | Yes |
| Beat Sync | Yes |
| Quantize | Yes |
| WaveZoom | Yes |
| Manual Loop | Yes |
| Trim knob | Yes |
| EQ Isolator | Yes |
|
Mic
|
|
|
Mic Connection
|
XLR connector & 1/4 inch TRS jack |
| Mic EQ | 3 band |
| Talkover | MIC OFF/ON/TALK OVER slide SW |
|

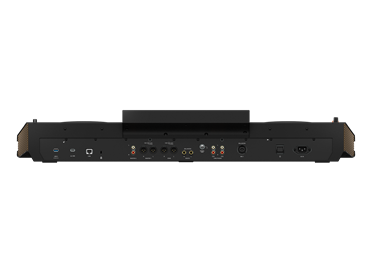

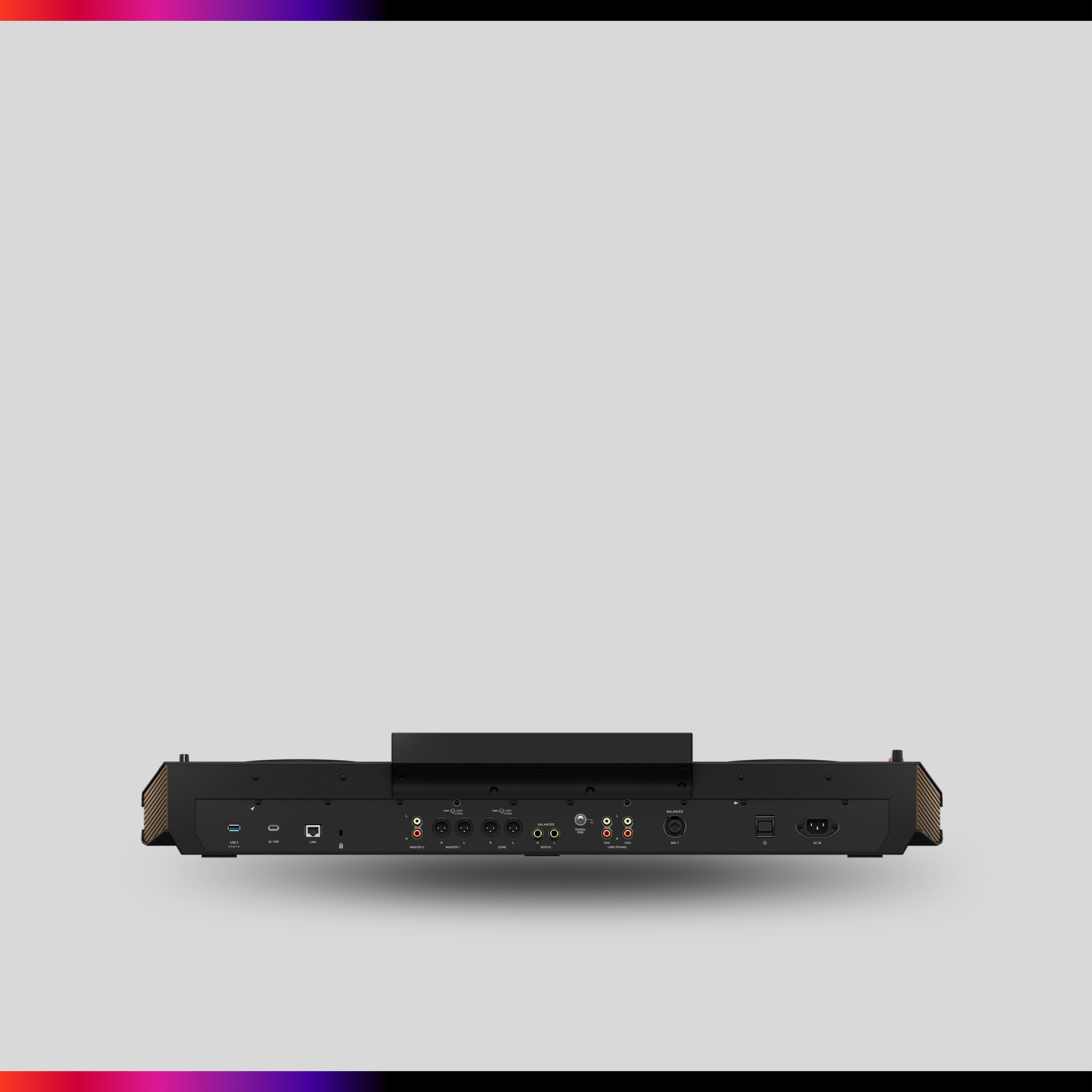

Terminals
|
|
|
Inputs
|
2 LINE (RCA) |
| 2 PHONO (RCA) | |
| 2 MIC (XLR connector & 1/4 inch TRS jack) | |
| Outputs | 1 MASTER (XLR) |
| 1 MASTER (RCA) | |
| 1 ZONE (XLR) | |
| 1 BOOTH (1/4 inch TRS Jack) | |
| 1 PHONES (1/4 inch stereo phone Jack) | |
| 1 PHONES (3.5-mm stereo mini jack) | |
| USB | 3 USB A ports |
| 1 USB C port | |
|
Wireless LAN
|
|
|
Supported standards
|
IEEE 802.11 a / b / g / n / ac |
| Frequency band used | 2.4 GHz / 5 GHz |
|
Bluetooth
|
|
|
Wireless system
|
Bluetooth ver. 4.2 |
| Frequency band used | 2.4GHz |
| Compatible codecs | SBC, AAC |
