Pioneer DJ Philippines

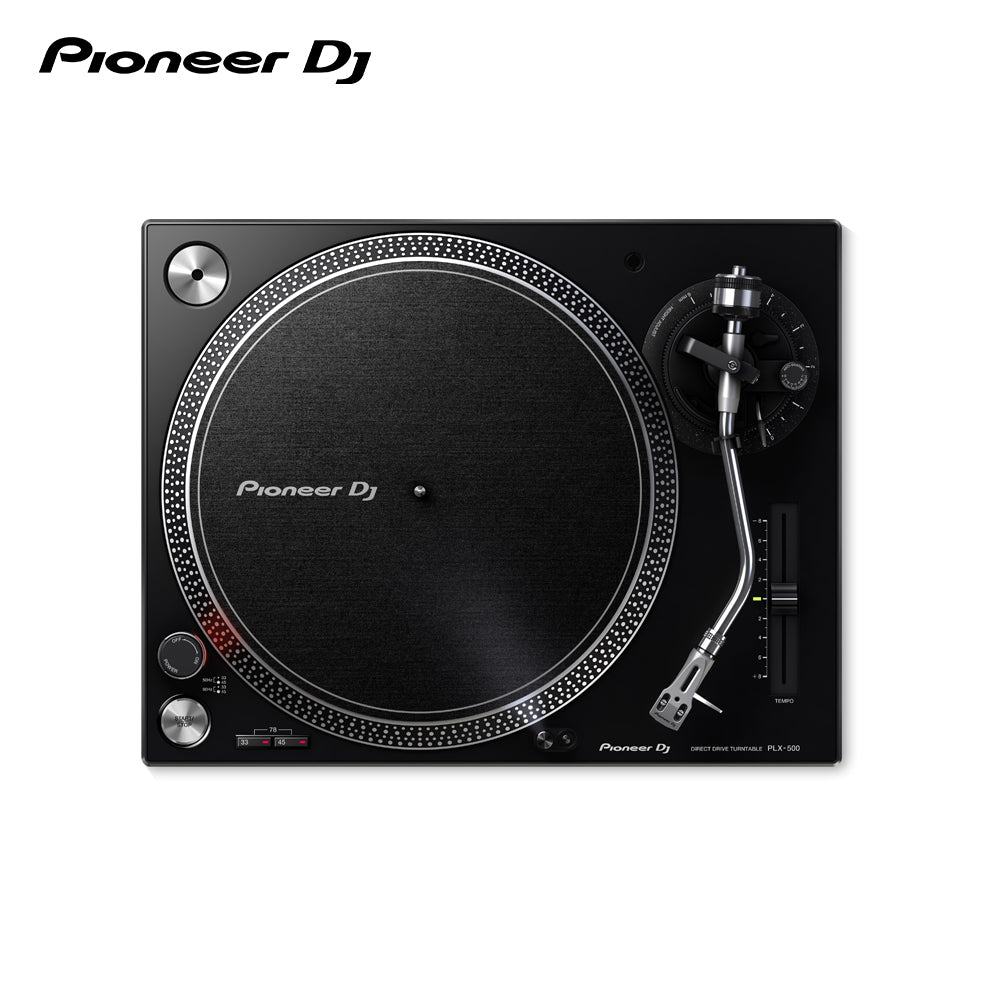

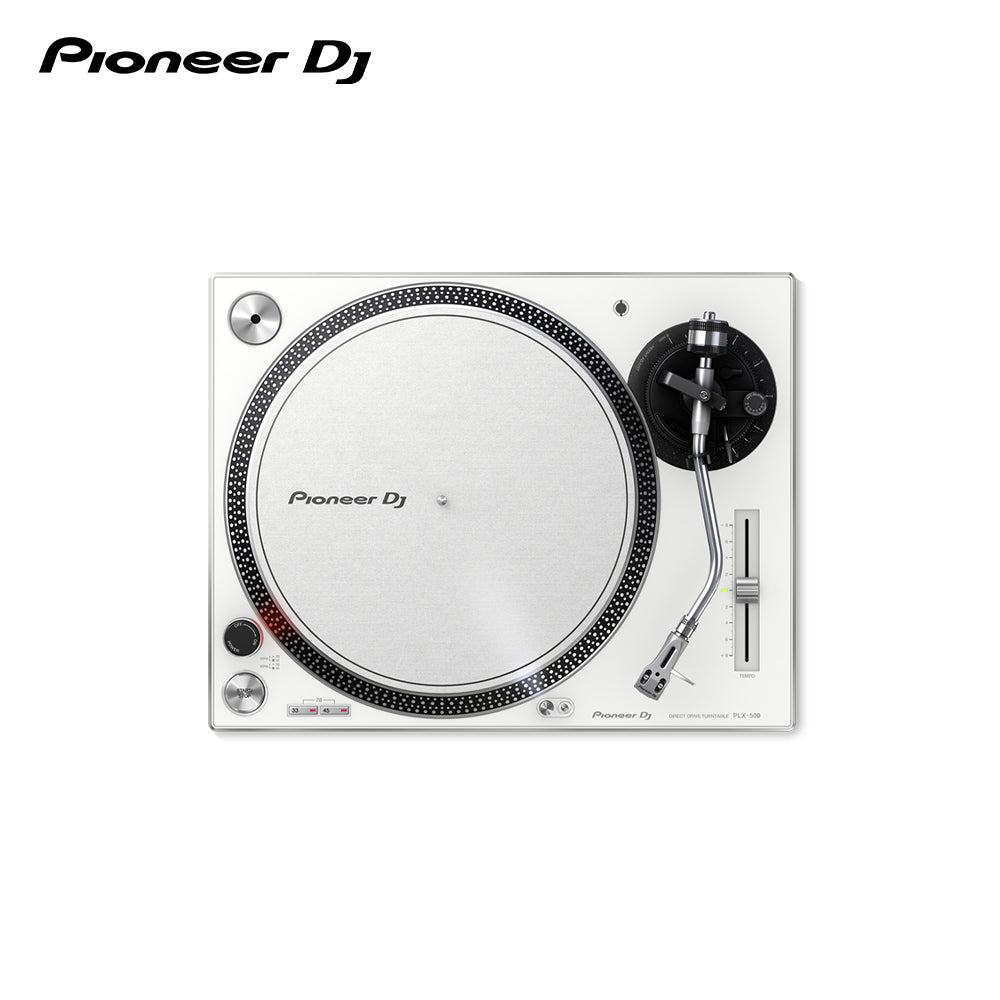

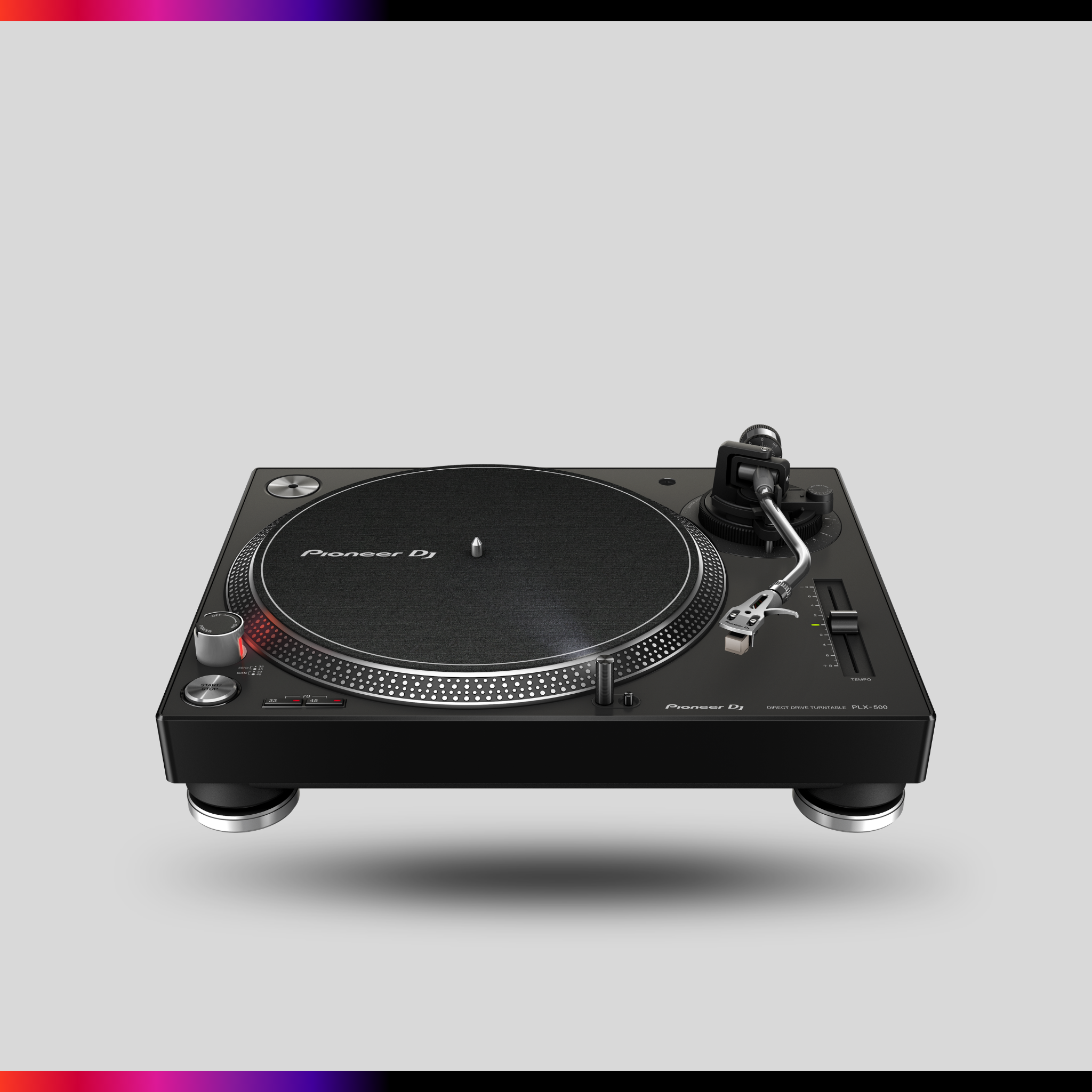

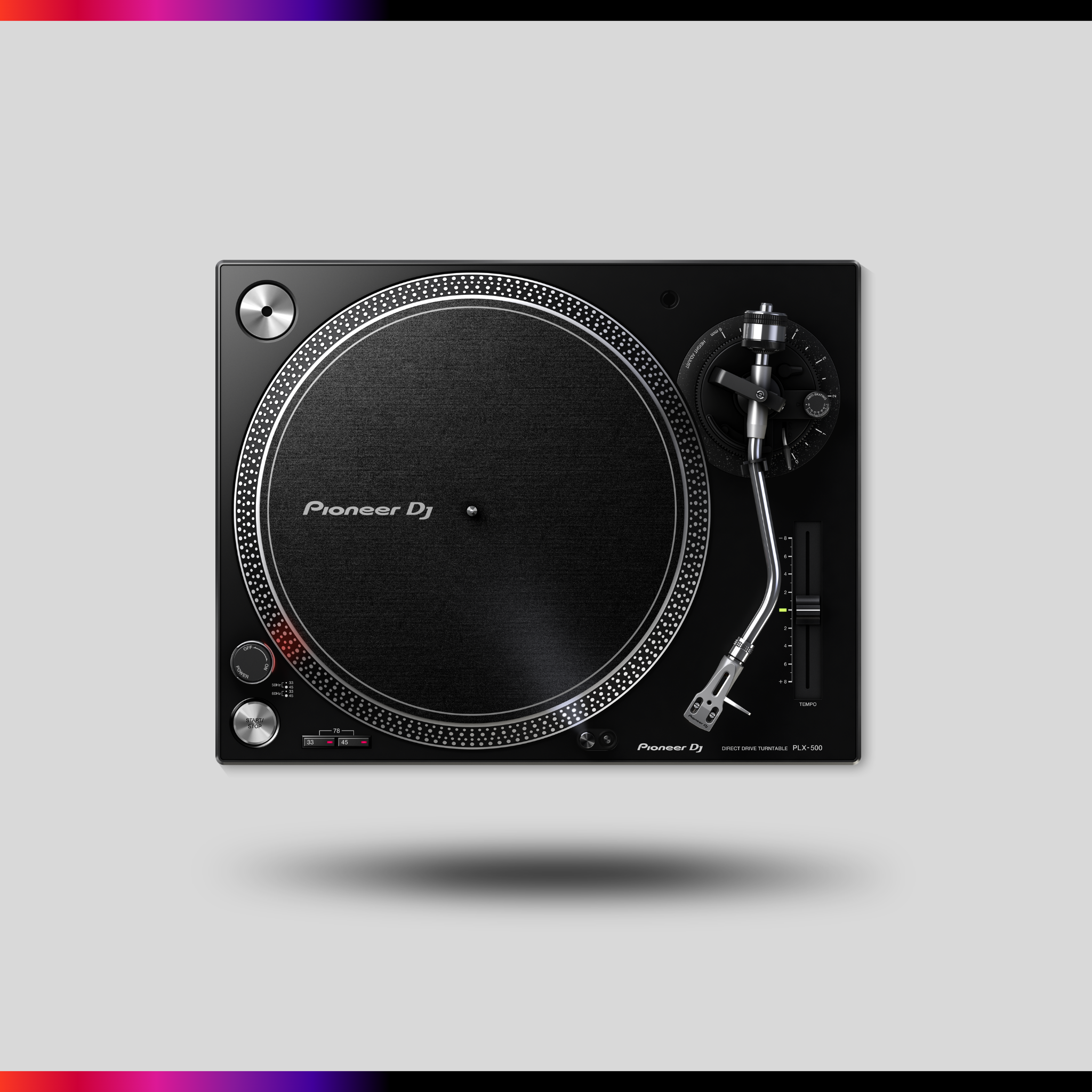

PLX-500

PLX-500

₱25,000.00 PHP
₱25,000.00 PHP
Sale Sold out
Color

DIRECT DRIVE TURNTABLE

Go vinyl

The PLX-500 inherits the layout of the PLX-1000 professional turntable and produces a warm, clear analogue sound. The perfect deck if you want to start playing with vinyl or if you just want to listen to your record collection at home.

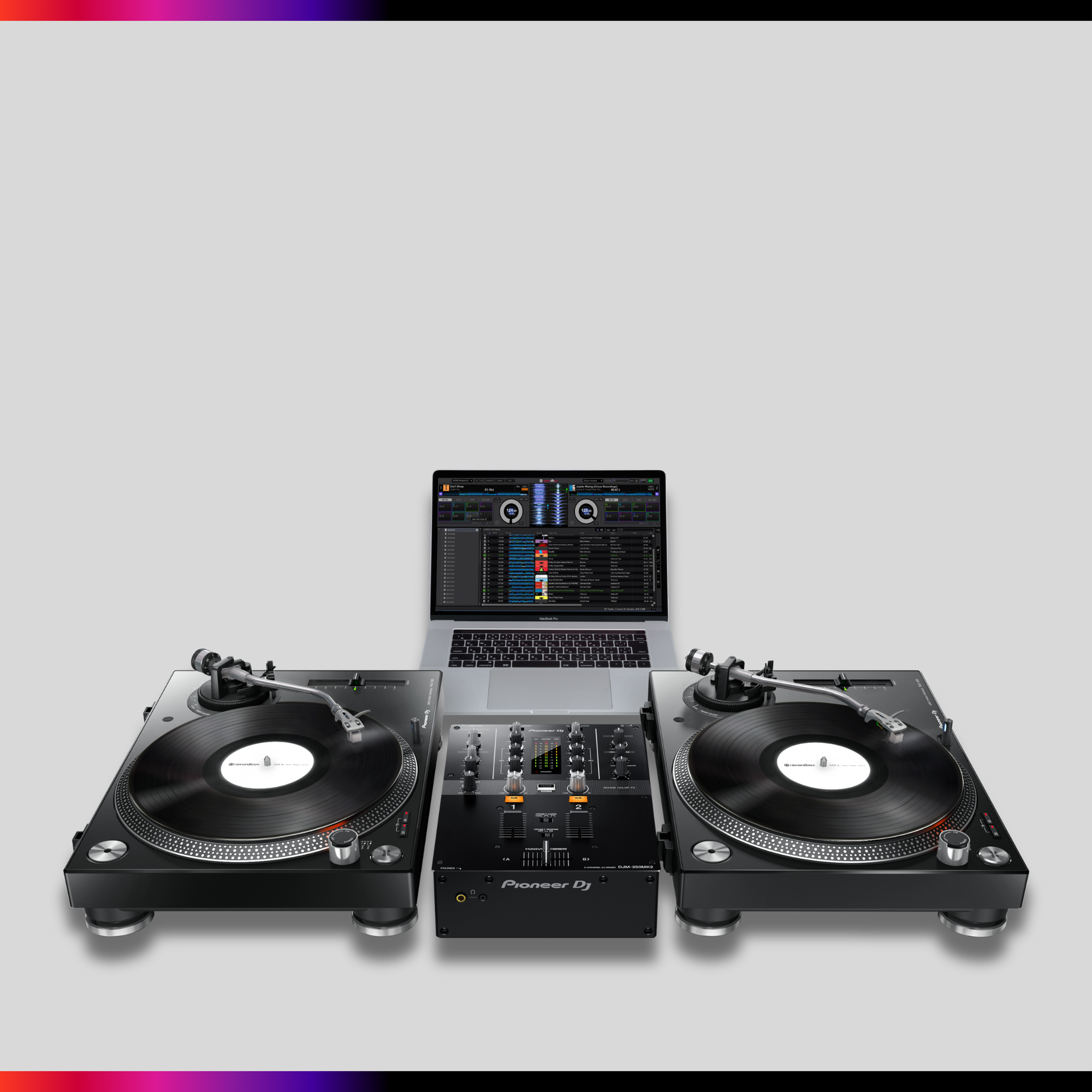

Solidly built with excellent vibration damping and precise audio playback, this high-torque deck has a USB out so you can make digital recordings of your vinyl collection in our free rekordbox software. You can also combine the PLX-500 with the rekordbox dvs Plus Pack, a compatible mixer and the RB-VS1-K Control Vinyl to play and scratch with digital files.

Expand / Collapse all

Main Features

What's in the Box
  • PLX-500
  • Power cord
  • USB cable
  • Slip mat
  • Dust cover
  • Adapter for EP records
  • Head shell (with cartridge)
  • Balance and shell weights
  • Audio adaptor cable:
    • 1 Stereo pin plug (female)
    • 1 Stereo mini plug (male)
  • Operating instructions

Specifications

Width

 450 mm

Height

 159 mm

Depth

 368 mm

Weight

 10.7 kg

Turntable

Drive Method

 Servo-type direct drive

Platter

 Aluminium, die-casting diameter: 332 mm

Motor

 3-phase, brushless DC motor

Braking System

 Electronic brake

Rotation Speed

 33⅓, 45, 78 rpm

Rotation Adjustment Range

 ±8 %

Wow and Flutter

 < 0.15% WRMS

Signal-to-Noise Ratio

 50 dB

Starting Torque

 > 1.6 kgf・cm

Start Time

 Within 1 sec (at 33⅓ rpm)

Tone Arm

Arm Type
  • Universal type S-shape tone arm
  • Gimbal-supported type bearing structure
  • Static balance type

Overhang

 16 mm

Effective Length

 230.5 mm

Tracking Error

 Within 3°

Height Adjustment Range

 6 mm

Stylus Pressure Variable Range

 0-4 g (1 scale 0.1 g)

Proper Cartridge Weight

 < 9.5 g

Cartridge type

 VM

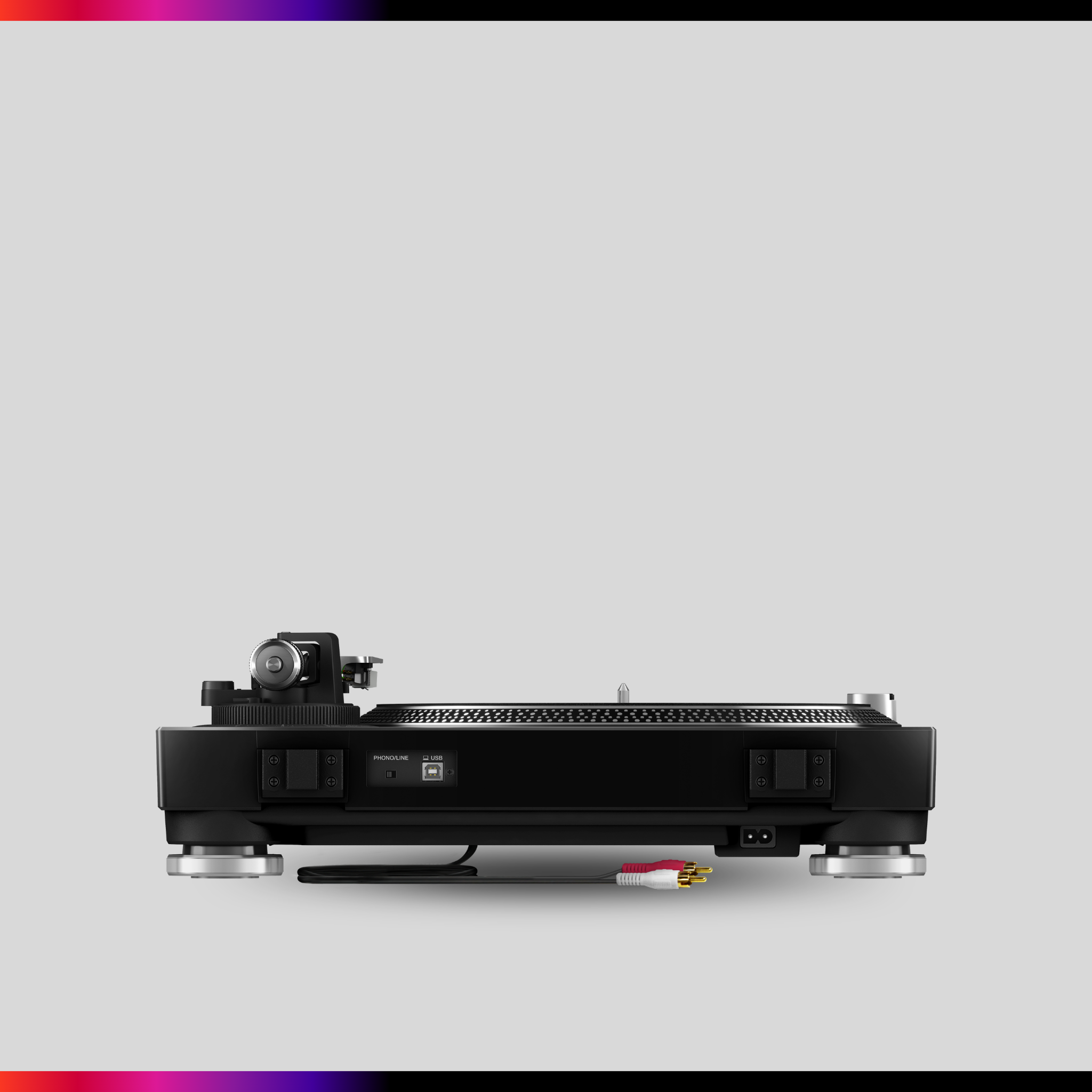

Terminals

USB

 1 USB B port

Outputs

 1 PHONO/LINE (RCA)
