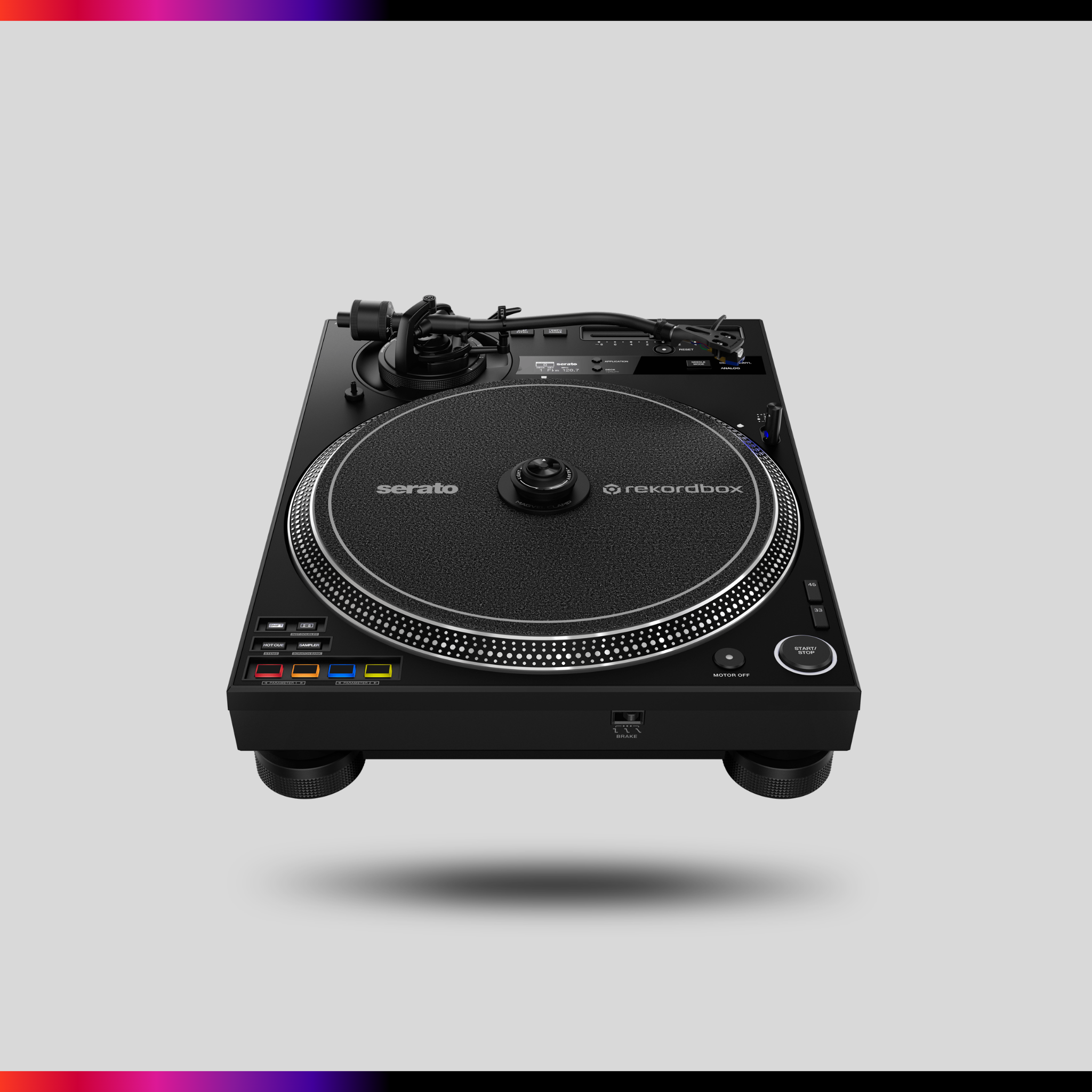

PLX-CRSS12
Professional direct drive turntable with DVS control (black)
The PLX-CRSS12 is the world's first turntable that supports both analog record playback and tone-arm-free DVS control, making it the ultimate deck for DJs who want to maximize their creativity.
|
Main Features
|
|
|
Accessories
|
Platter |
| Screws for platter | |
| Screwdriver | |
| MAGVEL CLAMP | |
| Slip mat | |
| Slip sheet | |
| Dust cover | |
| Balance weight | |
| Sub weight | |
| Headshell | |
| Shell weight | |
| Power cord | |
| Audio cable (with ground wire) | |
| USB cable | |
| Quick Start Guide | |
| Warranty (for some regions)* | |
| Precautions for Use | |
| **Only products in Europe. Products in North America and Japan include warranty information in the Precautions for Use. | |
|
Specifications
|
|
|
Width
|
453 mm |
| Depth | 353 mm |
| Height | 159 mm |
| Weight | 12.2 kg |
|
Turntable
|
|
|
Drive Method
|
Servo-type direct drive |
| Turntable | Aluminium, die-casting diameter: 332 mm |
| Motor | 3-phase, brushless DC motor |
| Braking System | Electronic brake |
| Rotation Speed | 33⅓ rpm, 45 rpm |
| Rotation Adjustment Range | ±8, ±16, ±50 % |
| Wow and Flutter | 0.15% or less WRMS (JIS WTD) |
| Signal-to-Noise Ratio | 65 dB (DIN-B) |
| Starting Torque | High: 0.45 N·m (4.5 kgf·cm) or more |
| Mid: 0.32 N·m (3.2 kgf·cm) | |
| Low: 0.2 N·m (2.0 kgf·cm) | |
| Start Time | 0.3 sec (at 33⅓ rpm) |
| Brake Time | Max: 3.5 seconds |
| Mid: 1.0 seconds | |
| Min: 0.5 seconds or less | |
|
Tone Arm
|
|
|
Arm Type
|
Universal type S-shape tone arm |
| Gimbal-supported type bearing structure | |
| Static balance type | |
| Overhang | 15 mm |
| Effective Length | 230 mm |
| Tracking Error | Within 3° |
| Height Adjustment Range | 6 mm |
| Stylus Pressure Variable Range | 0-4 g (1 scale 0.1 g) |
| Proper Cartridge Weight | 2.5-12 g (includes mounting materials) |
|

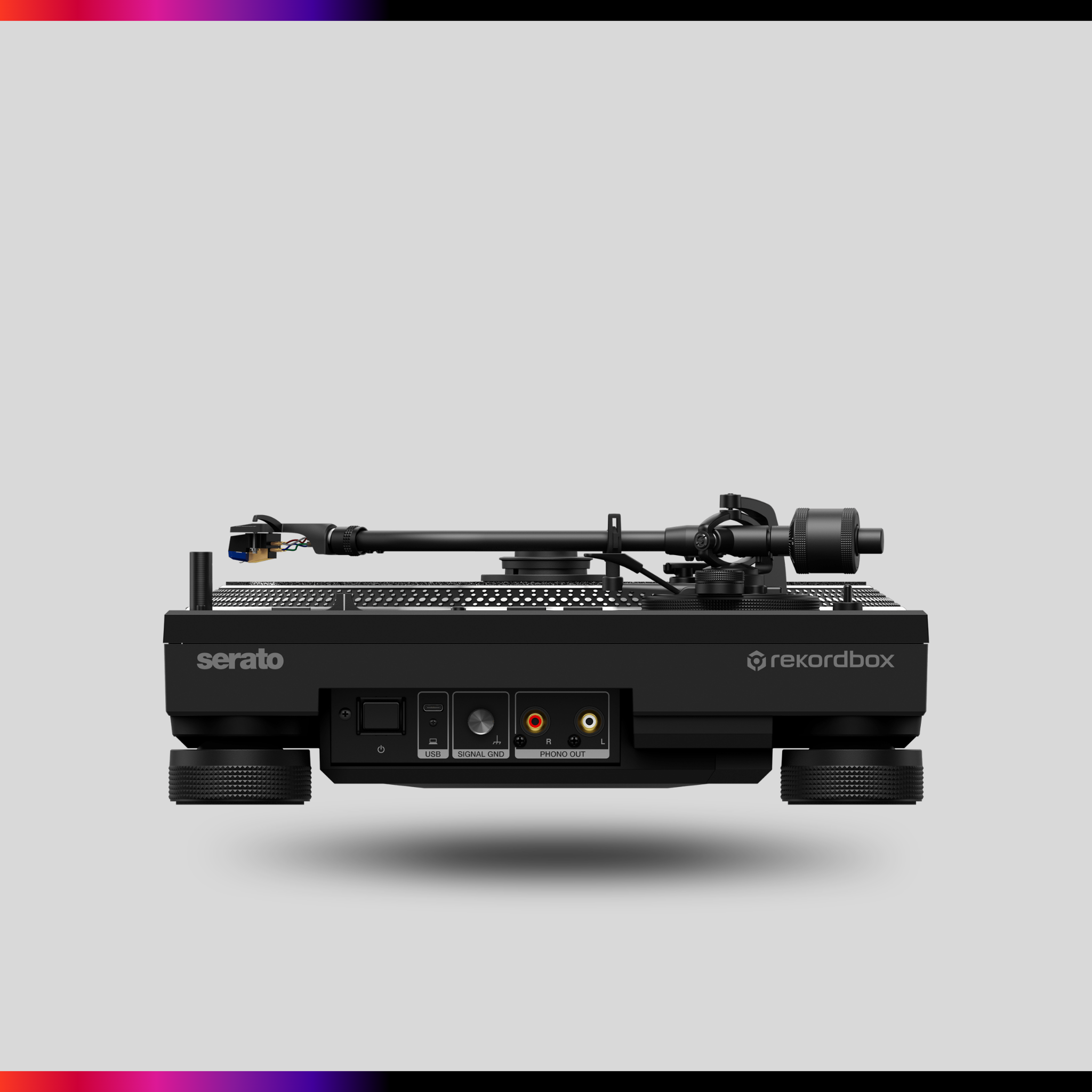

Terminals
|
|
|
USB
|
1 USB C port |
| Outputs | 1 PHONO(RCA) |
