RMX-IGNITE

Specifications
Collapsible content
• Power Requirements
AC 100 V – 240 V, 50 Hz / 60 Hz

• Power Consumption
DC 15 V, 3.0 A

• Power consumption (OFF)
0.3 W

• Max. External Dimensions (W × D × H)
340.0 × 213.3 × 72.8 mm / 13.4″ × 8.4″ × 2.9″

• Main Unit Weight
2.3 kg / 5.1 lbs

• Operating Temperature
+5 °C – +35 °C

• Operating Humidity
5% – 85% (no condensation)

Audio
• Sampling Rate
96 kHz

• A/D, D/A Converter
32 bit

• Frequency Response
20 Hz – 40 kHz

• S/N Ratio (rated output, A-weighted)
CONNECTION switch (MST): 115 dB

CONNECTION switch (SEND/RETURN): 114 dB

CONNECTION switch (CDJ): 108 dB

• Total Harmonic Distortion (20 Hz – 20 kHz BW)
0.0018 %

• Standard Input Level / Standard Output Level
CONNECTION switch (MST): +4 dBu / +4 dBu

CONNECTION switch (SEND/RETURN): -7.8 dBu / -7.8 dBu

CONNECTION switch (CDJ): -6 dBu / -12 dBu

• Input Impedance
47 kΩ

• Output Impedance
680 Ω or less

• Rated Output Level / Load Impedance
CONNECTION switch (MST): 21 dBu / 10 kΩ

CONNECTION switch (SEND/RETURN): 12 dBu / 10 kΩ

CONNECTION switch (CDJ): 3 dBu / 10 kΩ

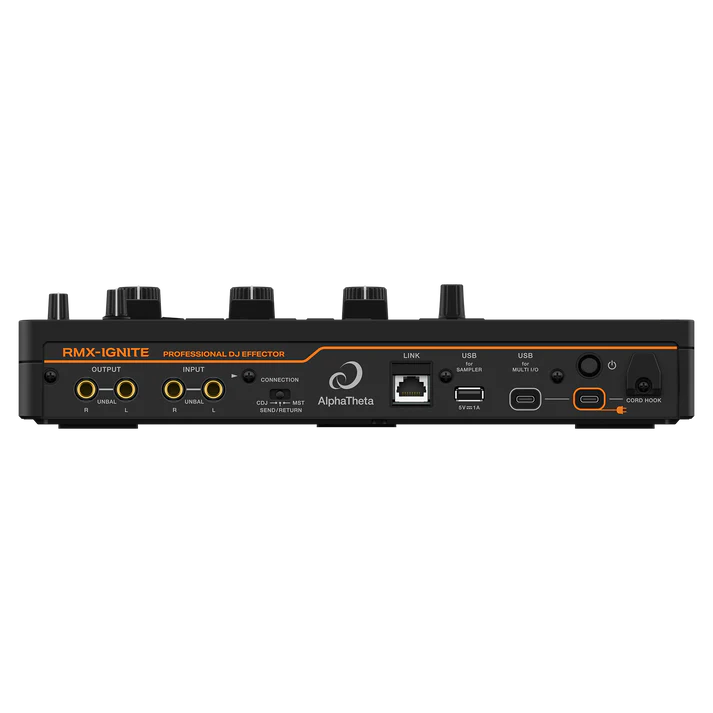

Input / Output Terminals
• Input
1/4″ TS jack × 1

• Output
1/4″ TS jack × 1

• USB Type-A (for SAMPLER)
1 set (Power supply : 5 V/1 A or less)

• USB Type-C (for MULTI I/O, AC adapter)
2 sets

• LINK
LAN (100BASE-TX) × 1

Support File Formats
• WAV
Bit depth: 16 bit / 24 bit

Sapmling frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz

• AIFF
Bit depth: 16 bit / 24 bit
Sampling frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
