TORAIZ AS-1
Develop unique sounds

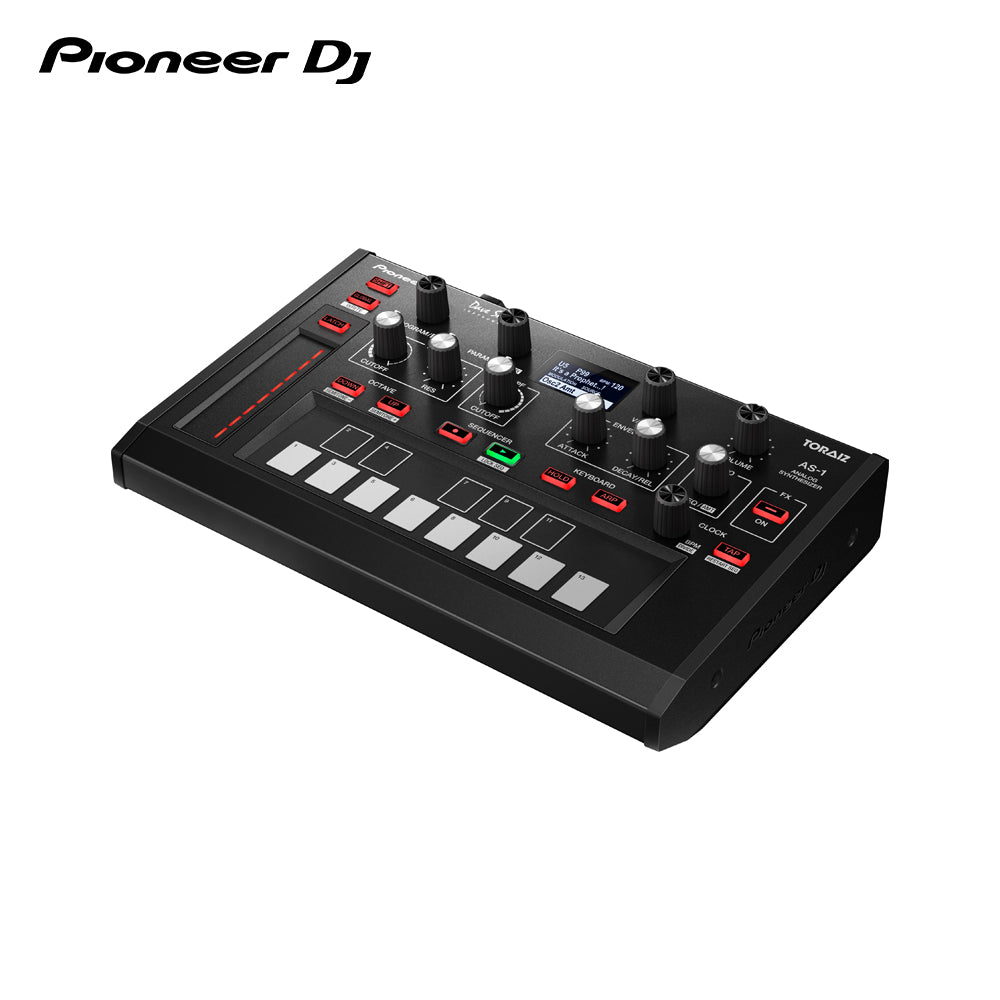

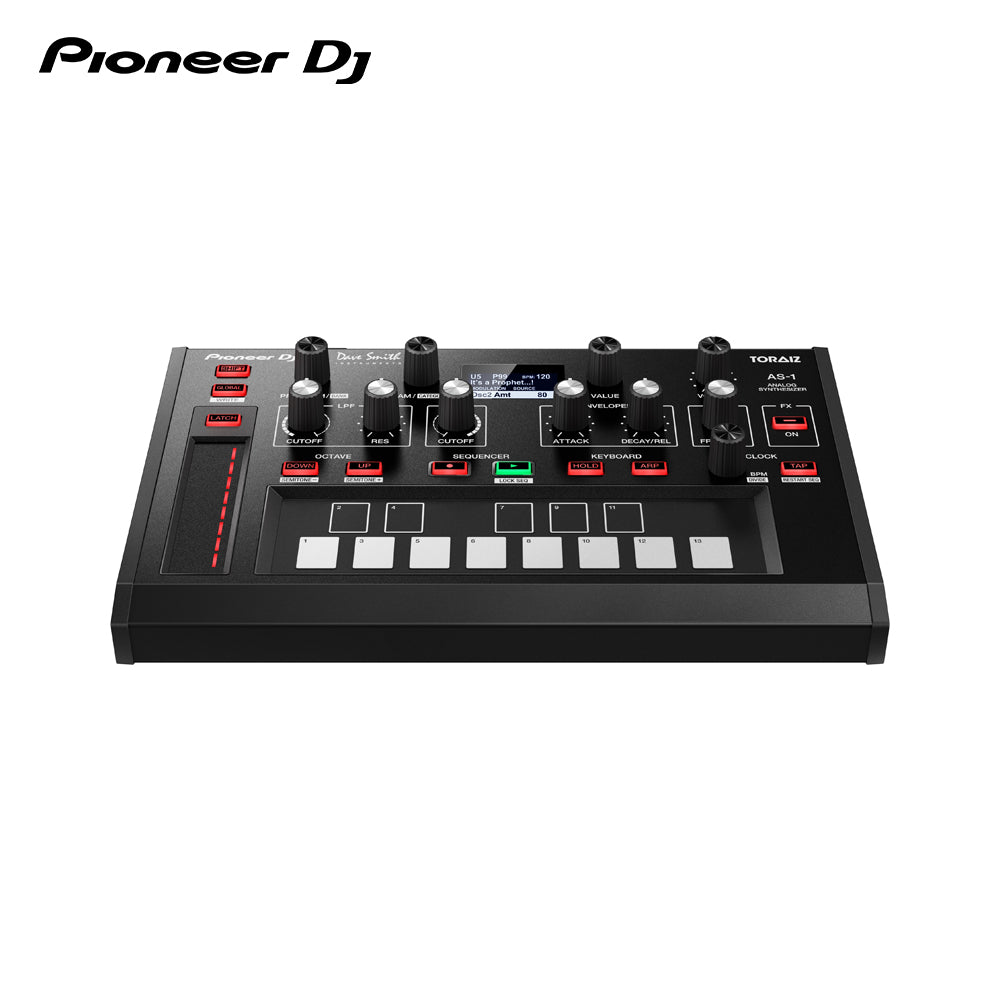

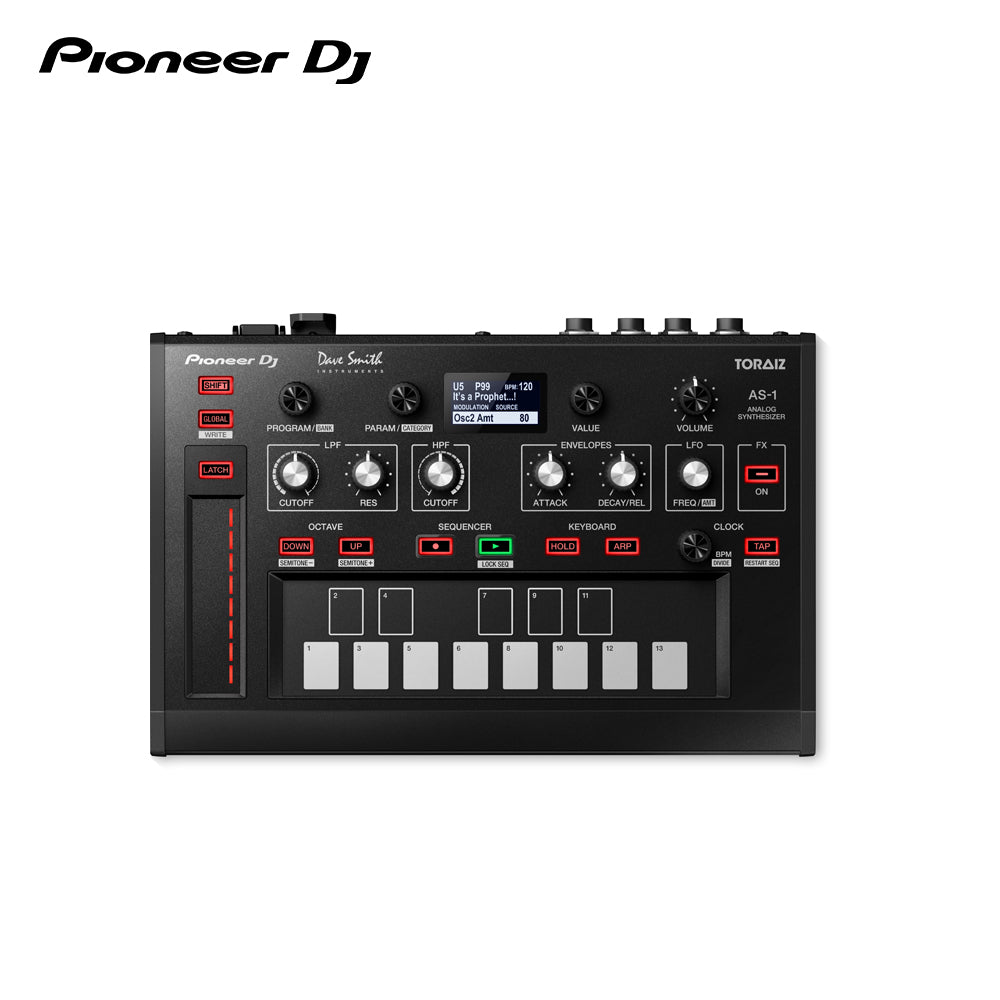

The second musical instrument in our TORAIZ range, the AS-1 is a monophonic analog synthesizer that brings new creative possibilities to the studio and the stage. Its intuitive controls include parameter knobs that let you make both subtle and dramatic changes to the tone of your music to create your own personalised sound. Plus you can use the touchpad-style keyboard and slider to manipulate sounds during performances.
The TORAIZ AS-1 is driven by a fully programmable, true analogue synthesis engine based on the discrete analogue circuitry in Dave Smith Instruments’ Prophet-6 synthesizer. It also inherits 7 on-board effects from the Prophet-6 synth as well as a brand new digital distortion.
| Specifications | |
|
Sound Generation
|
Analog synthesis |
| Programs | 99 programmes x 10 banks (5 factory banks, 5 user banks) |
| * Each program includes its own sequence pattern | |
| * Able to set up to 13 favourite programmes can be registered | |
| Width | 267.4 mm |
| Depth | 177.7 mm |
| Height | 68.6 mm |
| Weight | 1.4 kg |
| Included Accessories | AC adaptor |
| Power Cord | |
| Quick Start Guide | |
| warranty | |
| Power Supply | |
|
Synthesis Parameters
|
|
|
Oscillator 1
|
Frequency |
| Pulse Width | |
| Sync (Off, On) | |
| Oscillator 1 Waveshapes (continuously variable) | Triangle |
| Sawtooth | |
| Variable-width Pulse | |
| Oscillator 2 | Frequency |
| Fine | |
| Pulse Width | |
| Key Follow (Off, On) | |
| Low Frequency (Off, On) | |
| Oscillator 2 Waveshapes (continuously variable) | Triangle |
| Sawtooth | |
| Variable-width Pulse | |
| Oscillators | Slop |
| Mixer | Oscillator 1 Level |
| Oscillator 2 Level | |
| Sub Level | |
| Noise Level | |
| Low-pass Filter | Cutoff |
| Resonance | |
| Key Amount (Off, Half, Full) | |
| Velocity (Off, On) | |
| High-pass Filter | Cutoff |
| Resonance | |
| Key Amount (Off, Half, Full) | |
| Velocity (Off, On) | |
| Filter Envelope | Low-pass Filter Amount |
| High-pass Filter Amount | |
| Attack | |
| Decay | |
| Sustain | |
| Release | |
| AMP Envelope | Amount |
| Velocity (Off, On) | |
| Attack | |
| Decay | |
| Sustain | |
| Release | |
| Glide | Rate |
| Off, On | |
| Mode (Fixed Rate, Fixed Time, Fixed Rate A, Fixed Time A) | |
| LFO | Frequency |
| Sync (Off, On) | |
| Initial Amount | |
| LFO Shapes | Triangle |
| Reverse Sawtooth | |
| Sawtooth | |
| Square | |
| Random | |
| LFO Destination | Oscillator 1 Frequency |
| Oscillator 2 Frequency | |
| Oscillator 1 and 2 Pulse Width | |
| Low-pass Filter Cutoff | |
| High-pass Filter Cutoff | |
| VCA | |
| Modulation Source | Filter Envelope |
| Oscillator 2 Amount | |
| Modulation Destination | Oscillator 1 Frequency |
| Oscillator 1 Shape | |
| Oscillator 1 Pulse Width | |
| Low-pass Filter Cutoff | |
| High-pass Filter Cutoff | |
|
Effects
|
|
|
FX 1 Types
|
Bucket-brigade Delay |
| Distortion | |
| Ring Modulation | |
| FX 2 Types | Chorus |
| Low Resonance Phaser | |
| High Resonance Phaser | |
| Maestro Phaser | |
| Parameters | Each effect has 2 adjustable parameters |
|
Sequencer
|
|
|
Parameters
|
Key, Velocity, Slew (Off, On) for each step |
| BPM (shared with arpeggiator) | |
| Time Divide (shared with arpeggiator) | |
| Step Length | Up to 64 steps |
|
Arpeggiator
|
|
|
Mode
|
Up |
| Down | |
| Up + Down | |
| Random | |
| Assign | |
| Range | 1 ~ 3 octaves |
| Parameters | BPM (shared with sequencer) |
| Time Divide (shared with sequencer) | |
|
Performance Controls
|
|
|
Keyboard
|
13-key touch keyboard |
| 22 preset scales | |
| 9 octaves: C0 ~ C9 (use with Oscillator 1 and 2 frequency parameters) | |
| Slider Parameters (multi assignable) | Oscillator 1 Frequency |
| Oscillator 2 Frequency | |
| Low-pass Filter Amount | |
| High-pass Filter Amount | |
| LFO Amount | |
| FX 1 Mix | |
| FX 2 Mix | |
| OLED Display | Able to access all parameters |
|
MIDI Controllable Parameters
|
|
|
Aftertouch
|
Amount |
| Aftertouch Destination | Oscillator 1 Frequency |
| Oscillator 2 Frequency | |
| Low-pass Filter Cutoff | |
| High-pass Filter Cutoff | |
| VCA | |
| LFO Amount | |
| Pitch Bend Range | Up to -/+ 12 semitones |
|
Miscellaneous
|
|
|
Key Mode
|
Low |
| High | |
| Last | |
| Low Retrigger | |
| High Retrigger | |
| Last Retrigger | |
| Alternative Tuning | 17 preset tunings |
|

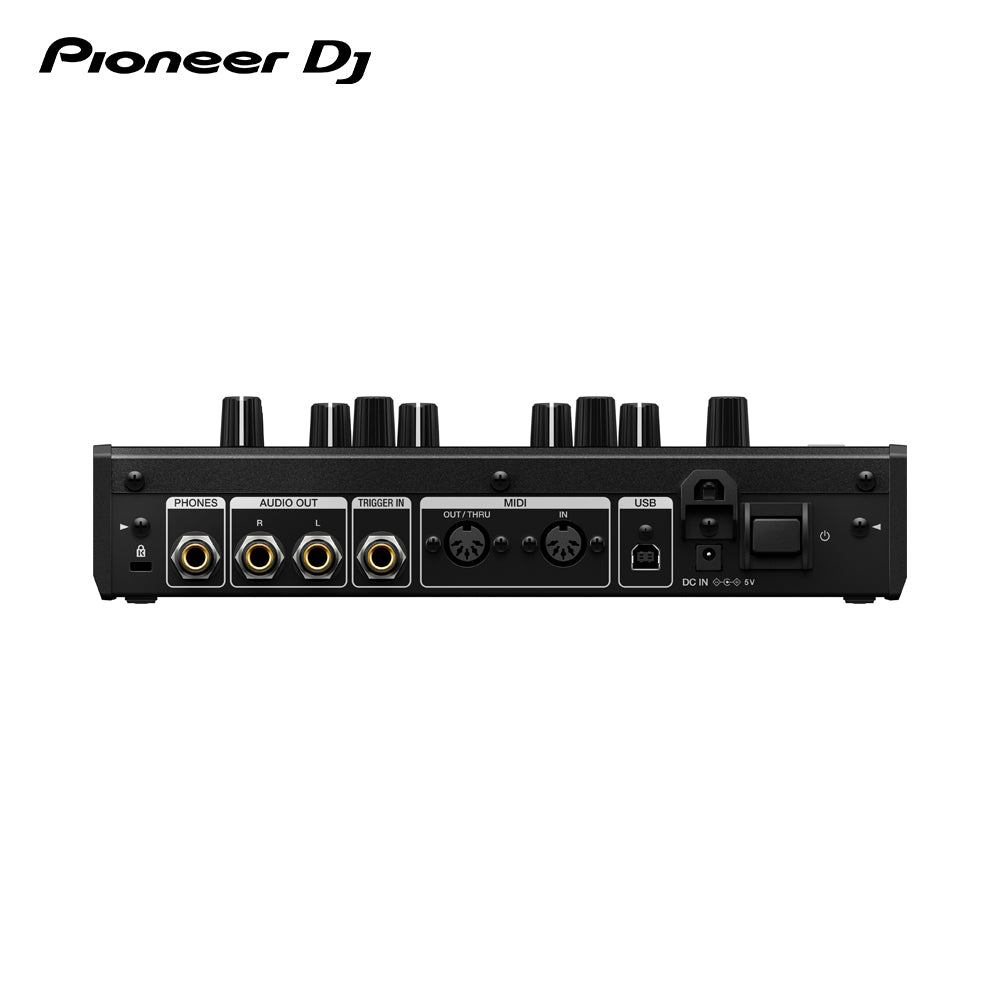

Terminals
|
|
|
Outputs
|
1 AUDIO OUT L/R (1/4 inch TS Jacks) |
| 1 PHONES (1/4 inch stereo phone Jack) | |
| MIDI | 1 MIDI IN (5P DIN) |
| 1 MIDI OUT/THRU (5P DIN) | |
| USB | 1 USB B port |
| Others | 1 TRIGGER IN (1/4 inch TS jack) |
| Trigger Input | Able to connect a general foot switch or input audio signals |
| Able to set the operation from 4 types: | |
| Pedal | |
| Trigger | |
| Gate | |
| Trigger-Gate |
