XPRS-10
10” full-range active loudspeaker
Natural Expression
The XPRS Series active PA speakers are compact and portable, yet high powered. Forget complicated setups and tangled cables as this system offers straightforward, plug-and-play use. Pioneer Pro Audio sound engineering technology and the use of Powersoft amps ensures these mobile speakers are reliable and energy efficient, making them suitable for all music genres and environments.
The XPRS10 single PA speaker combines a 10-inch ferrite LF driver, a 1.75-inch titanium diaphragm compression driver and Pioneer Pro Audio’s AFAST technology to deliver crystal clear audio with a deep bass range. Being compact, plug-and-play and easy to transport, this speaker is a reliable partner on the road, for any venue.
| Main Features | |
|
Accessories
|
XPRS 10 x 1 |
| Powerd cord | |
| Installation and Operation Manual | |
| Important Safety Precautions | |
|
Specifications
|
|
|
Width
|
320 mm |
| Depth | 374 mm |
| Height | 520 mm |
| Weight | 18.9 kg |
| Frequency Range | 55 - 20000 Hz |
|
System characteristic
|
|
|
Maximum Sound Pressure
|
134 dB |
| Cross Over Frequency | 2 kHz |
|

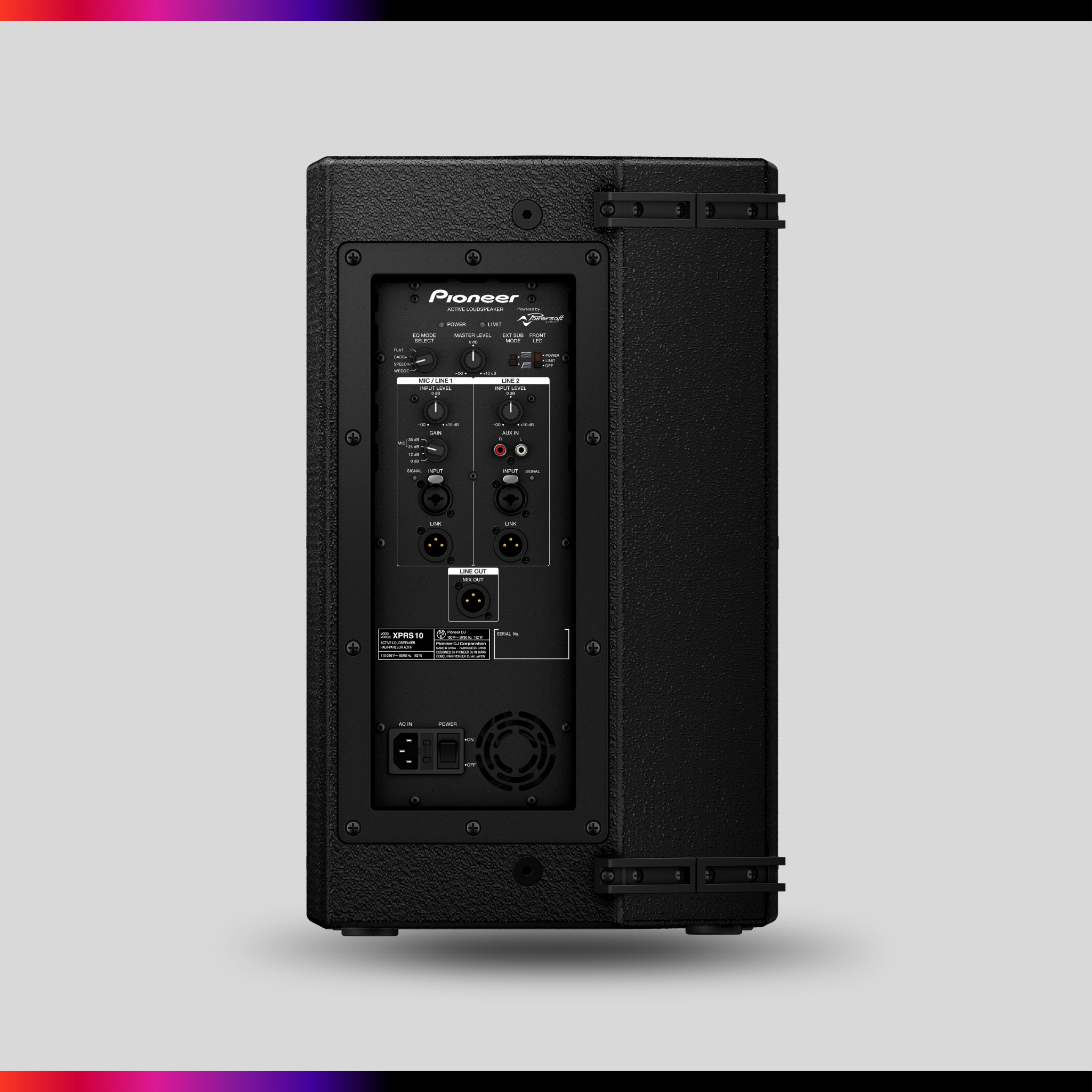

Terminals
|
|
|
Inputs
|
2 XLR/TRS Combo (balanced) |
| 2 RCA (unbalanced) | |
| Outputs | 2 Through output XLR (balanced) |
| 1x Mixed output XLR (balanced) | |
|
Amplifier
|
|
|
Amplifier Output
|
Class D |
| 2400W peak / 1200W cont. (LF800W / HF400W) | |
| Impedance | 10 kΩ |
|
Speaker
|
|
|
Driver
|
10 inch ferrite LF cone driver |
| 1.75 inch titanium diaphragm neodymium compression driver | |
| Enclosure | 15 mm birch plywood |
*The XPRS10 is sold as a single speaker.
