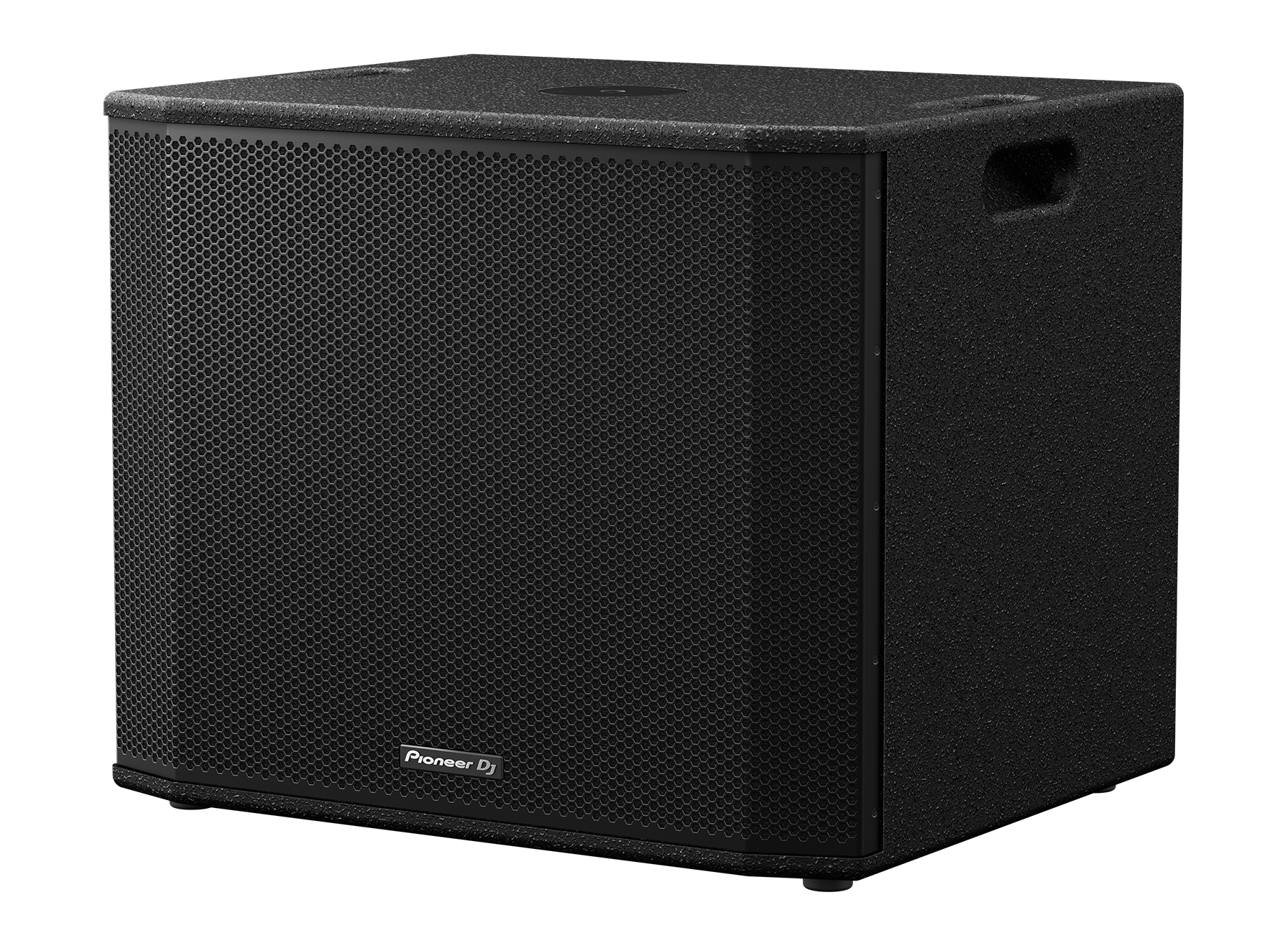

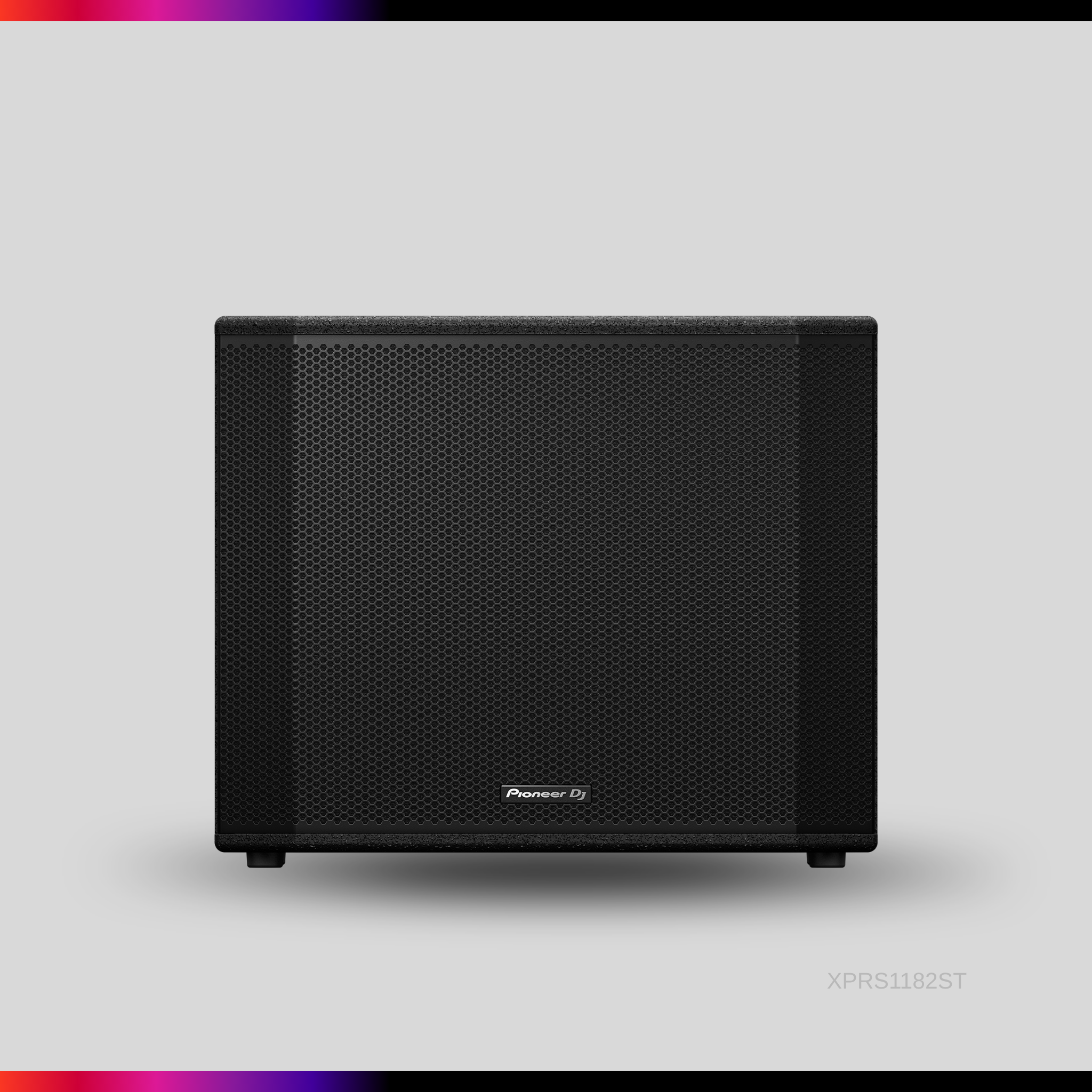

18” reflex loaded active subwoofer
Type
|
18 inch active subwoofer |
Amplifier Output
|
|
Accessories
|
- XPRS1182ST x 1 (not sold as a pair)
- Powerd cord
- Quick start guide
- Important Safety Precautions
|
Power supply
|
110 V to 240 V (50 Hz/60 Hz) |
Power consumption
|
800 W |
Width
|
661 mm |
Depth
|
536.5 mm |
Height
|
535 mm |
Weight
|
32.6 kg |
Frequency Range
|
40 – 120 Hz |
DSP modes
|
- EQ Mode Select (3 DSP Preset Modes(Switch))
- LPF
- POLARITY
|
DSP presets modes
|
|
Maximum Sound Pressure
|
130 dB |

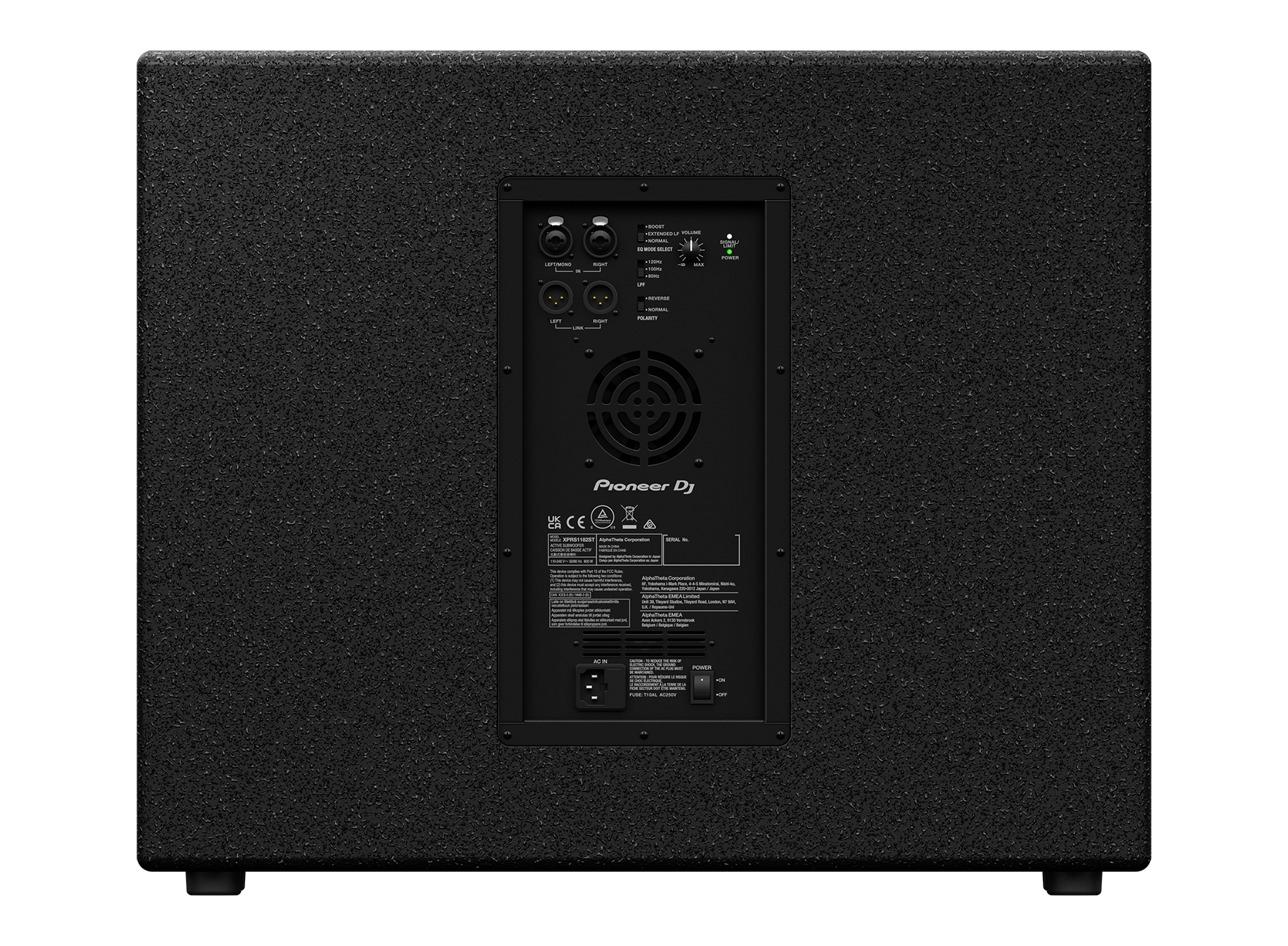

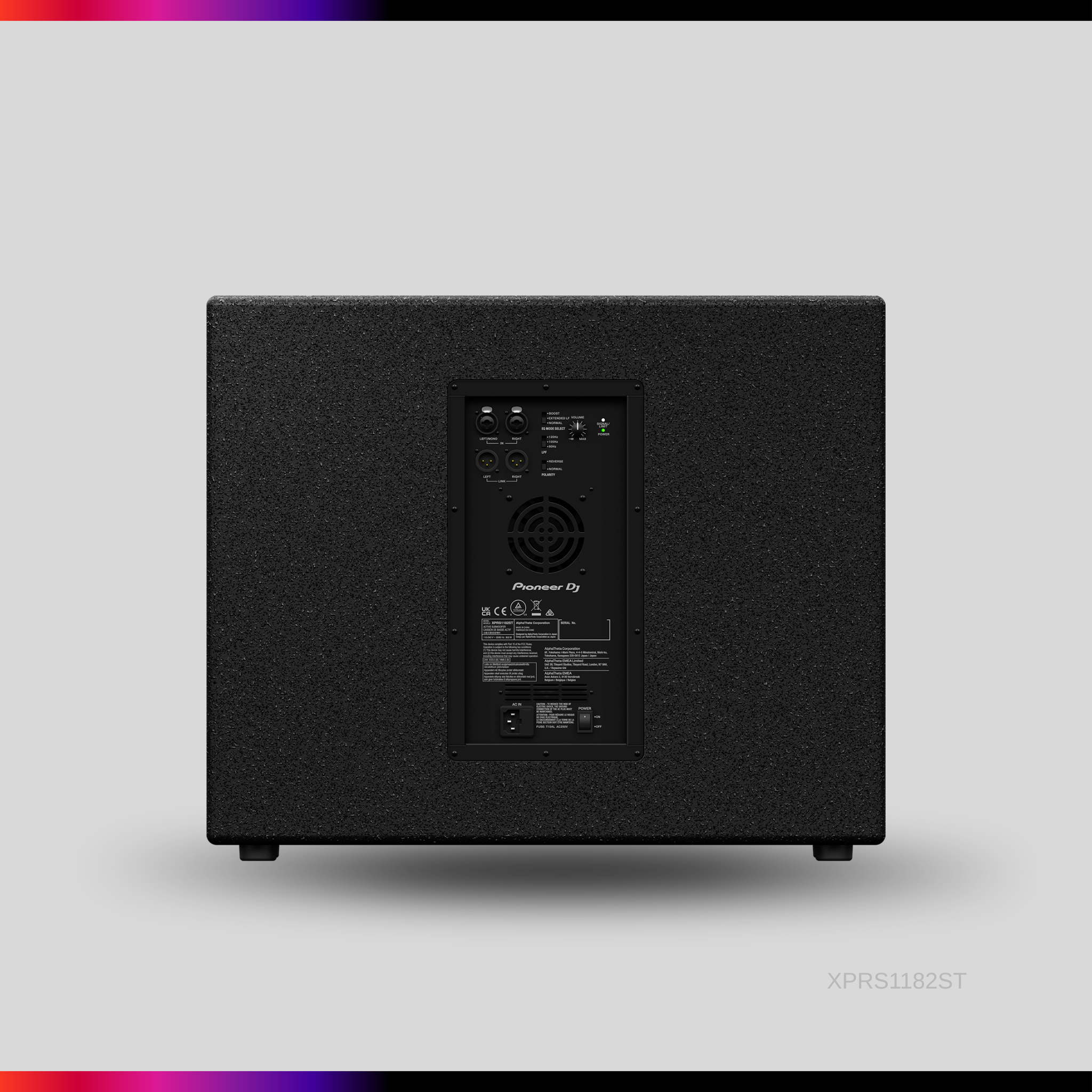

Inputs
|
- Left Mono (Combo)
- Right (Combo)
|
Outputs
|
- Left Mono (XLR)
- Right (XLR)
|
Driver
|
18” ferrite LF cone driver |
Finish
|
Black paint, Rubber feet |

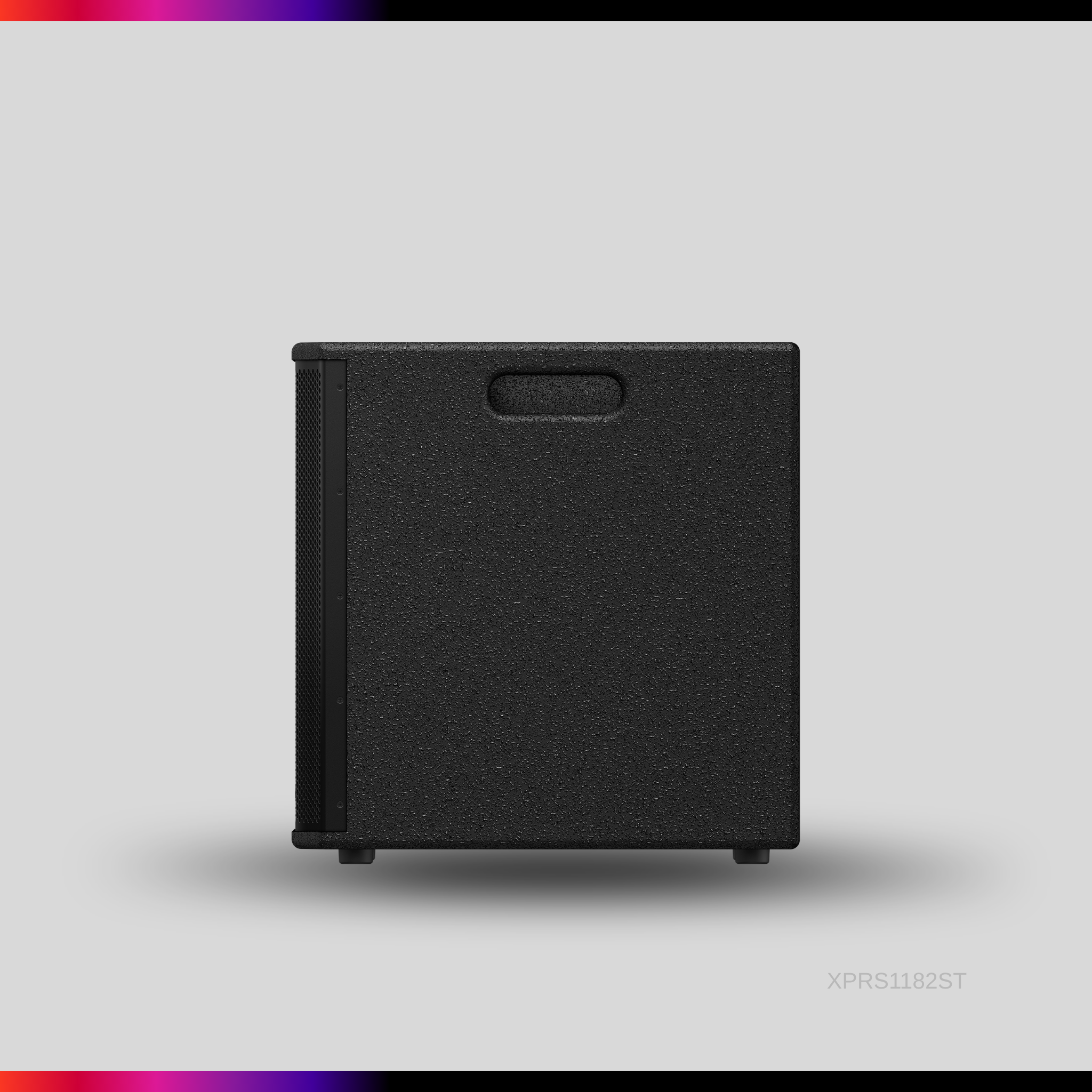

Handle
|
2 (on both sides) |

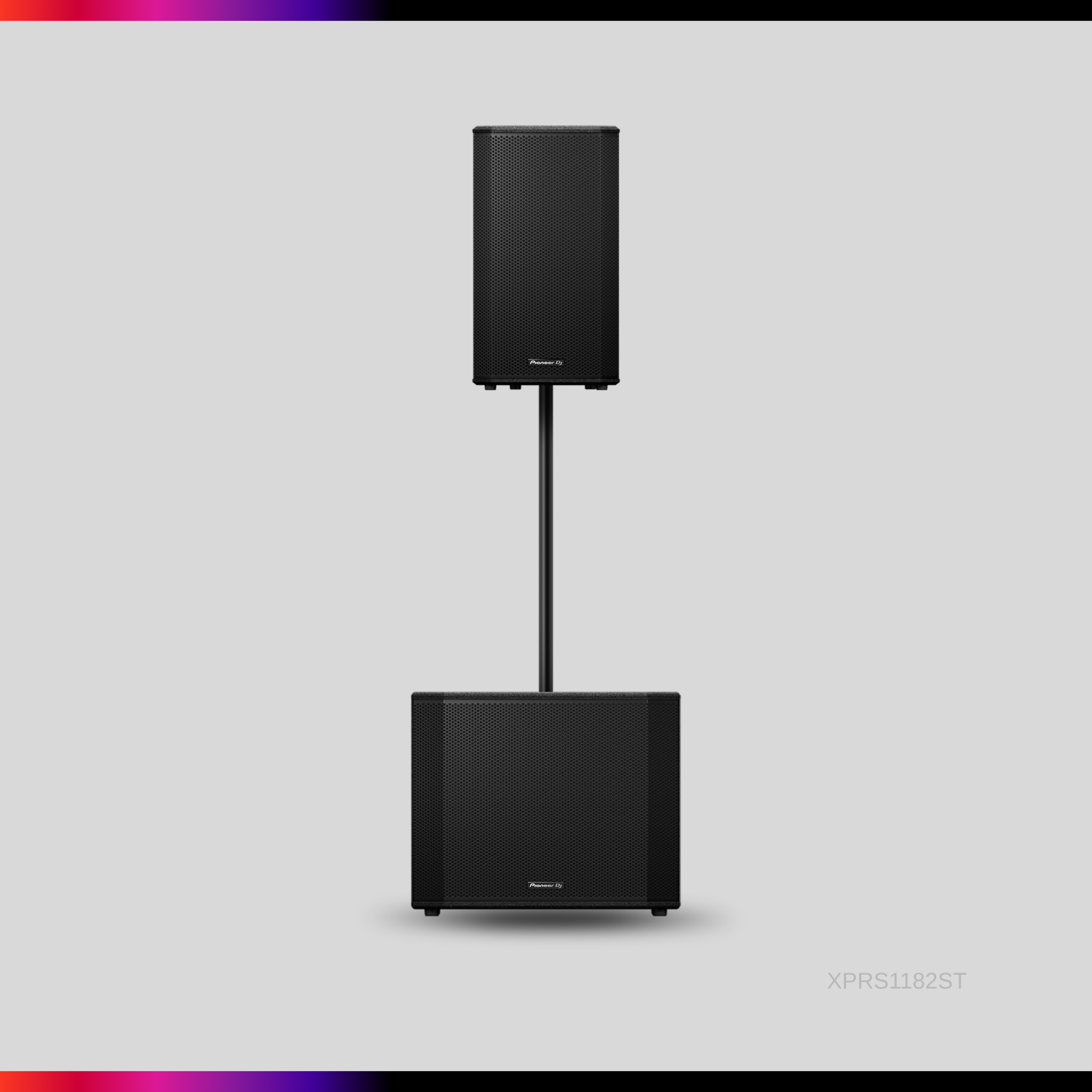

Pole socket
|
M20 screw socket |
Enclosure
|
Plywood (TSCA) |
Amplifier Protection
|
- Thermal limiting
- Digital compressor
|
Driver Protection
|
Short circuit protection |
Power unit Protection
|
- Primary AC mains overcurrent protection
- Primary AC mains overvoltage protection
|
|
