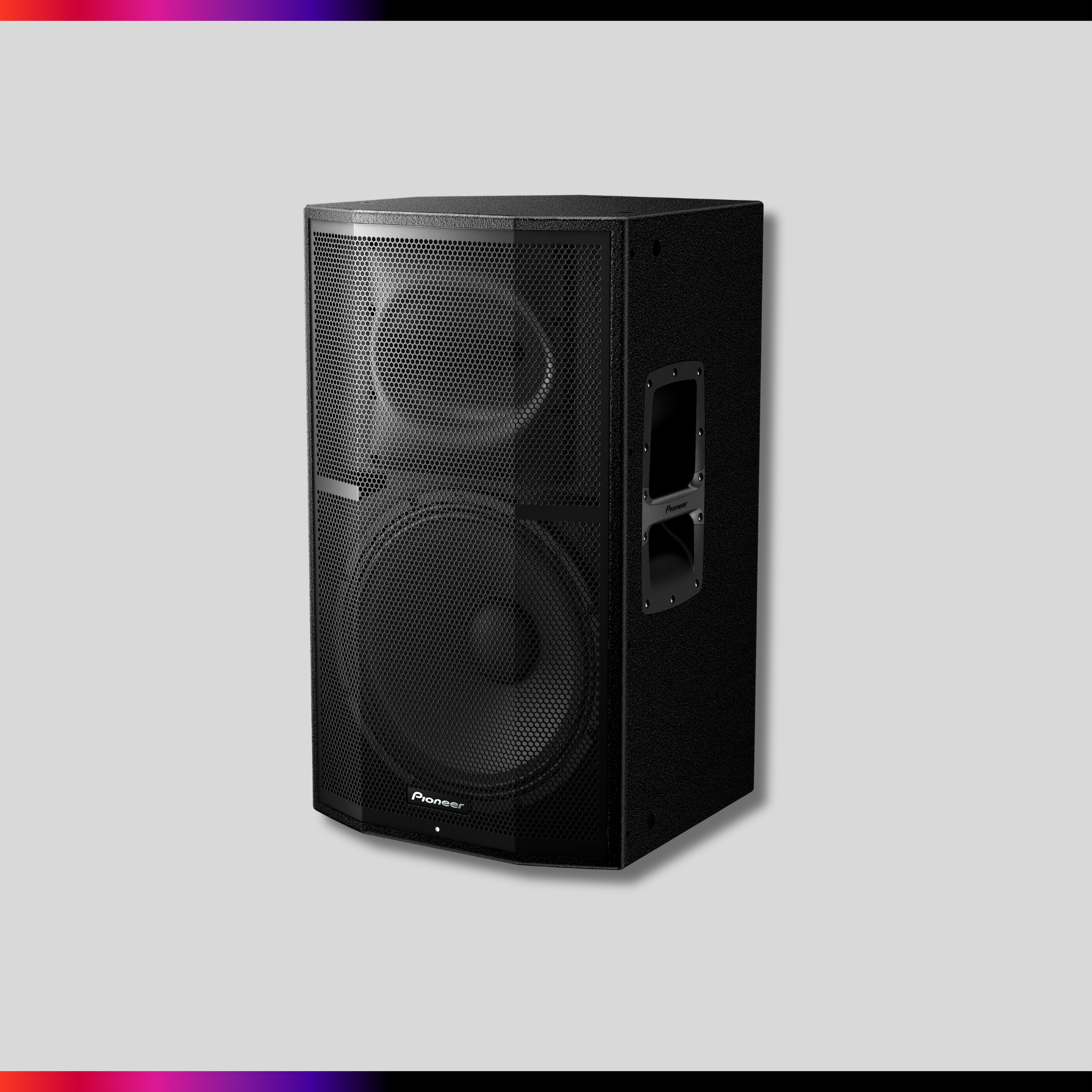

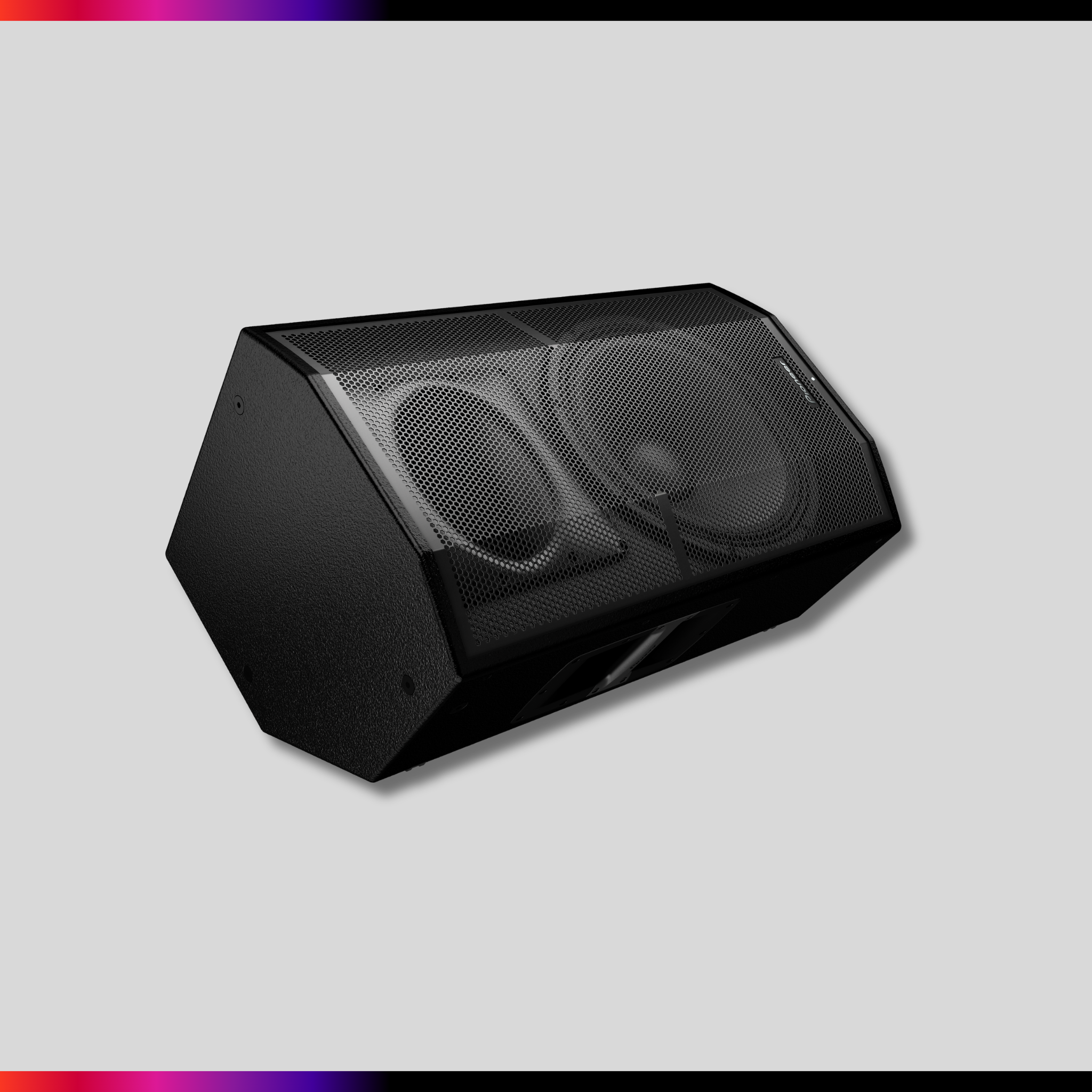

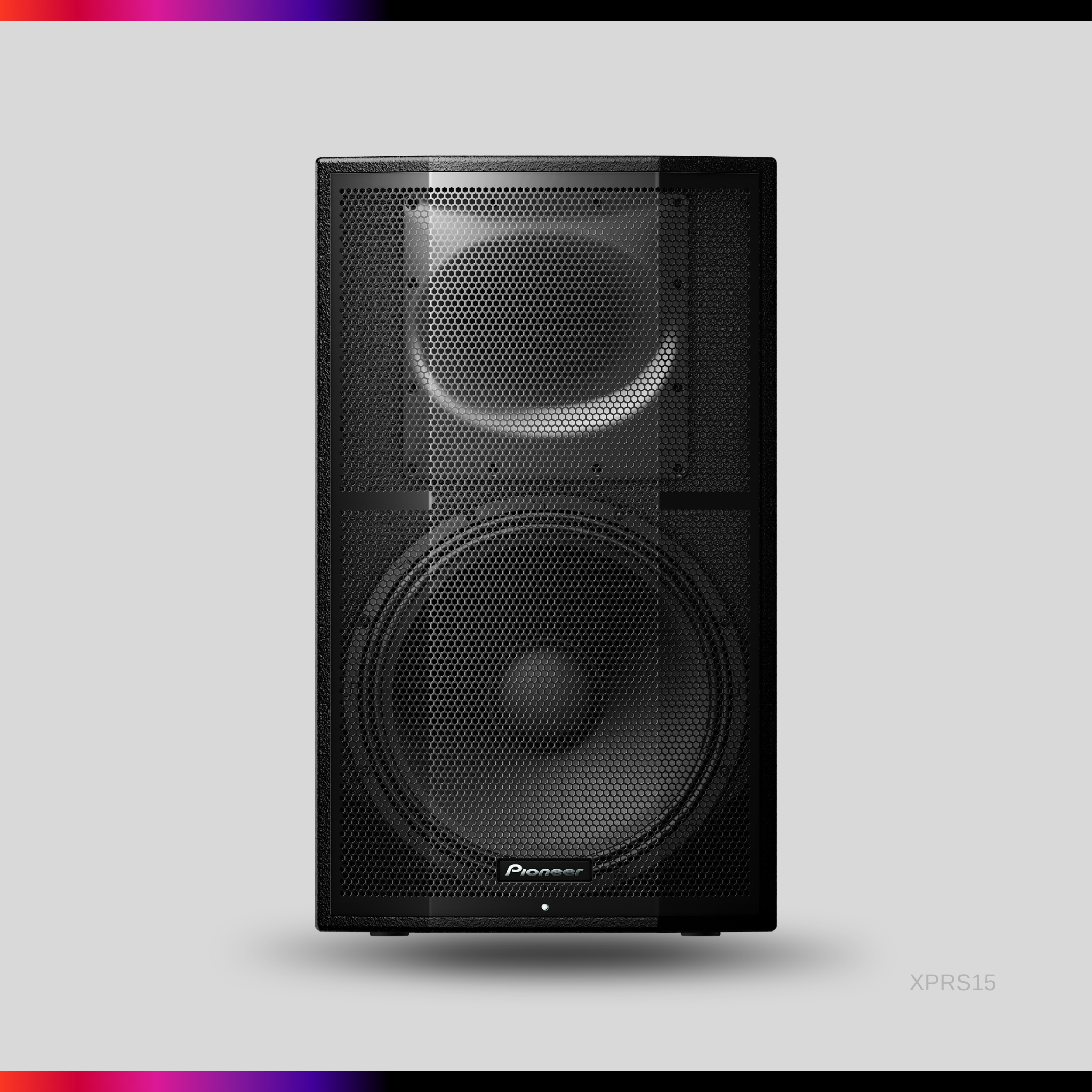

XPRS15
15” full-range active loudspeaker
Natural Expression
The XPRS Series active PA speakers are compact and portable, yet high powered. Forget complicated setups and tangled cables as this system offers straightforward, plug-and-play use. Pioneer Pro Audio sound engineering technology and the use of Powersoft amps ensures these mobile speakers are reliable and energy efficient, making them suitable for all music genres and environments.
The XPRS15* compact 15-inch speaker fill the room with a dynamic, natural sound thanks to their plywood enclosures and high-performance drivers.
| Main Features | |
|
Accessories
|
XPRS 15 x 1 |
| Powerd cord | |
| Installation and Operation Manual | |
| Important Safety Precautions | |
|
Specifications
|
|
|
Power supply
|
100 V (50 Hz/60 Hz) |
| 110 V to 240 V (50 Hz/60 Hz) | |
| Width | 445 mm |
| Depth | 416 mm |
| Height | 750 mm |
| Weight | 28.5 kg |
| Frequency Range | 40 - 20000 Hz |
|
System characteristic
|
|
|
Dispersion
|
90° x 60° (rotatable) |
| Maximum Sound Pressure | 136 dB |
| Cross Over Frequency | 2 kHz |
|

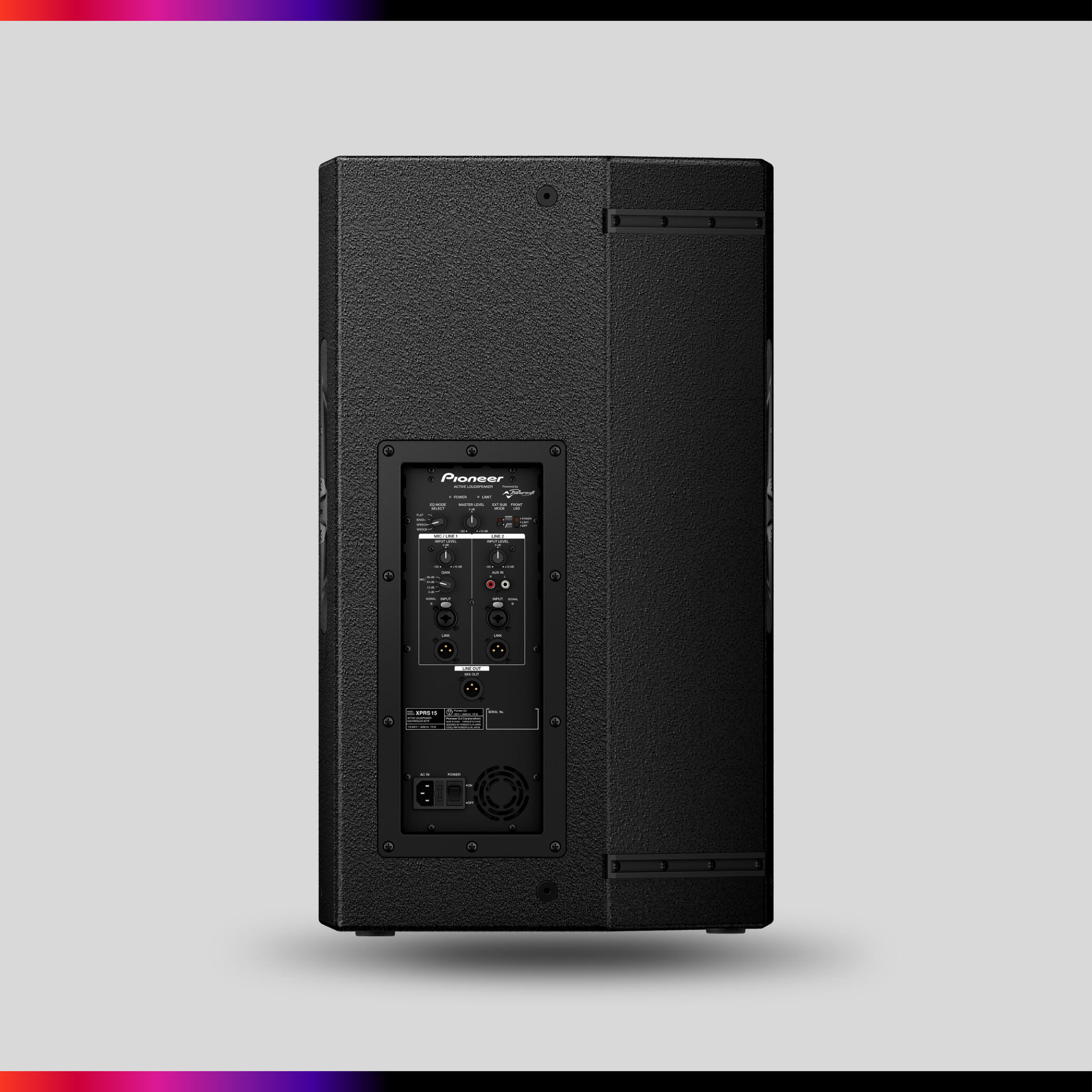

Terminals
|
|
|
Inputs
|
2 XLR/TRS Combo (balanced) |
| 2 RCA (unbalanced) | |
| Outputs | 2 Through output XLR (balanced) |
| 1x Mixed output XLR (balanced) | |
|
Amplifier
|
|
|
Amplifier Output
|
Class D |
| 2400W peak / 1200W cont. (LF800W / HF400W) | |
| Impedance | 10 kΩ |
|
Speaker
|
|
|
Driver
|
15 inch ferrite LF cone driver |
| 1.75 inch titanium diaphragm neodymium compression driver | |
| Finish | Impact-resistant |
| Black semi-matt textured | |

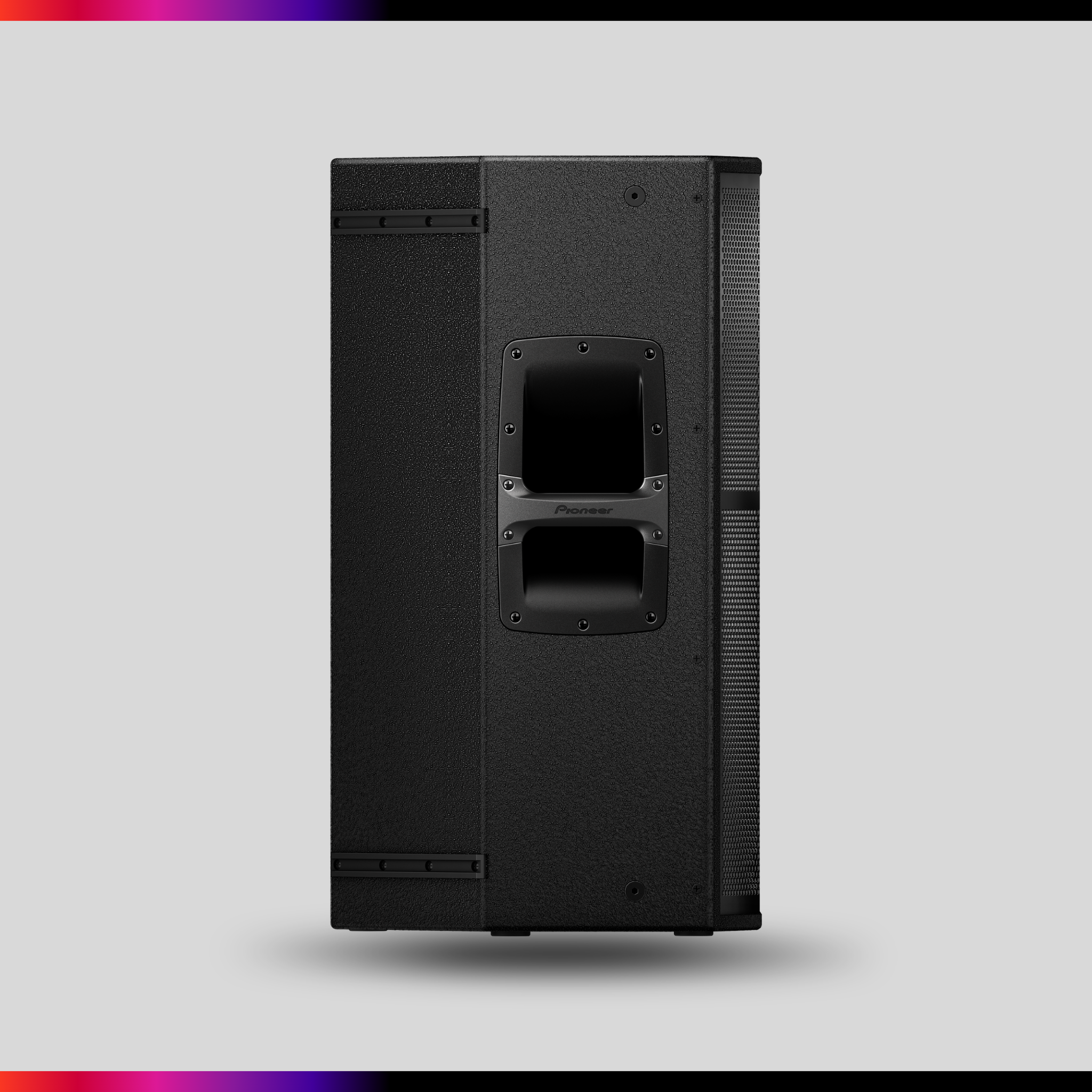

| Handle | 2 (on both sides) |
| Pole socket | 35 mm socket (0°/7° multi-angle) |
| Rigging point | 12x M10 |
| Enclosure | 15 mm birch plywood |
|
Protection
|
|
|
Amplifier Protection
|
Thermal limiting |
| Over-temperature muting | |
| Output overcurrent | |
| Driver Protection | DC offset removal |
| High frequency stationary loud signals | |
| Input voltage limiter (Peak/RMS) | |
| Power unit Protection | Primary AC mains overcurrent protection |
| Primary AC mains overvoltage protection |
*The XPRS15 is sold as a single speaker.
