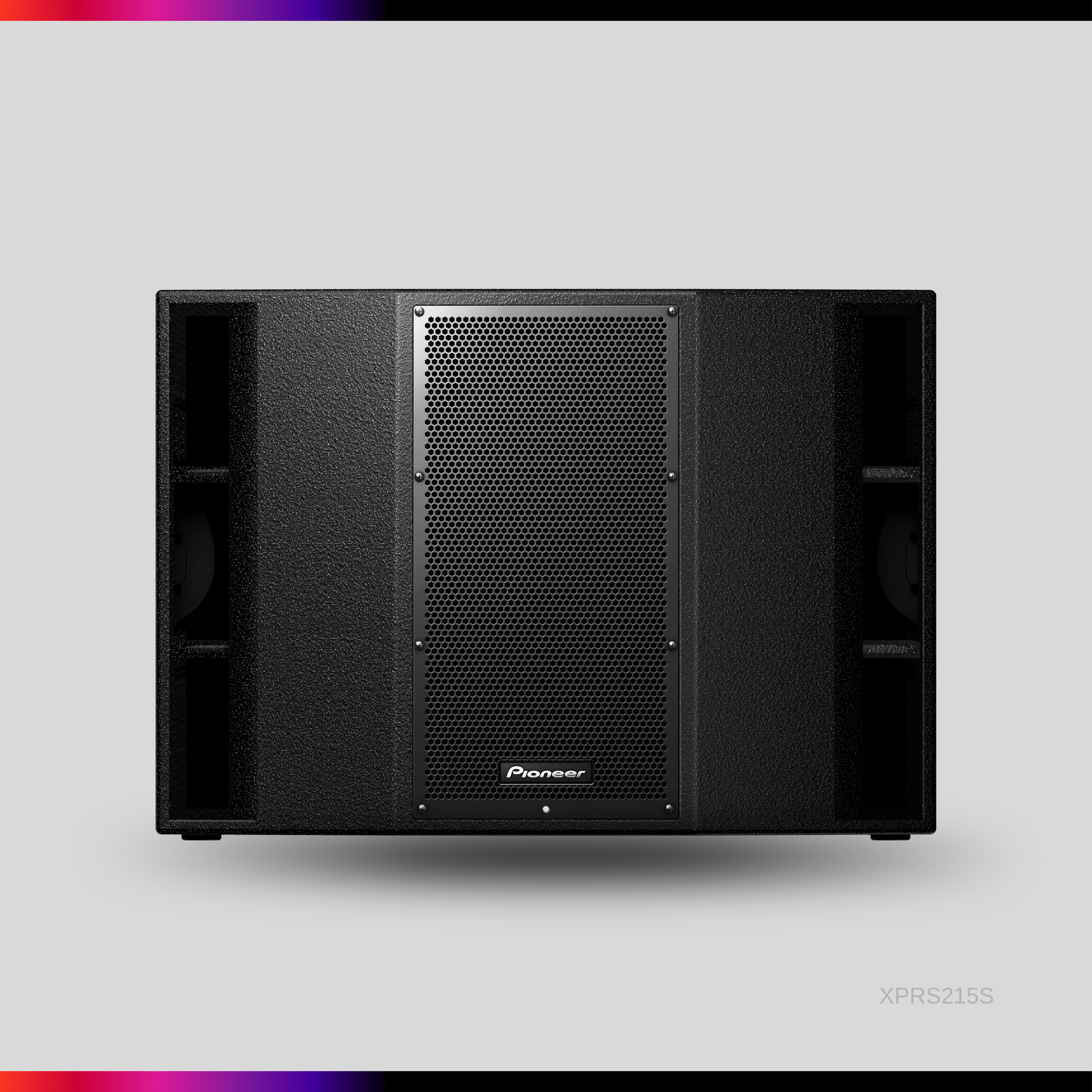

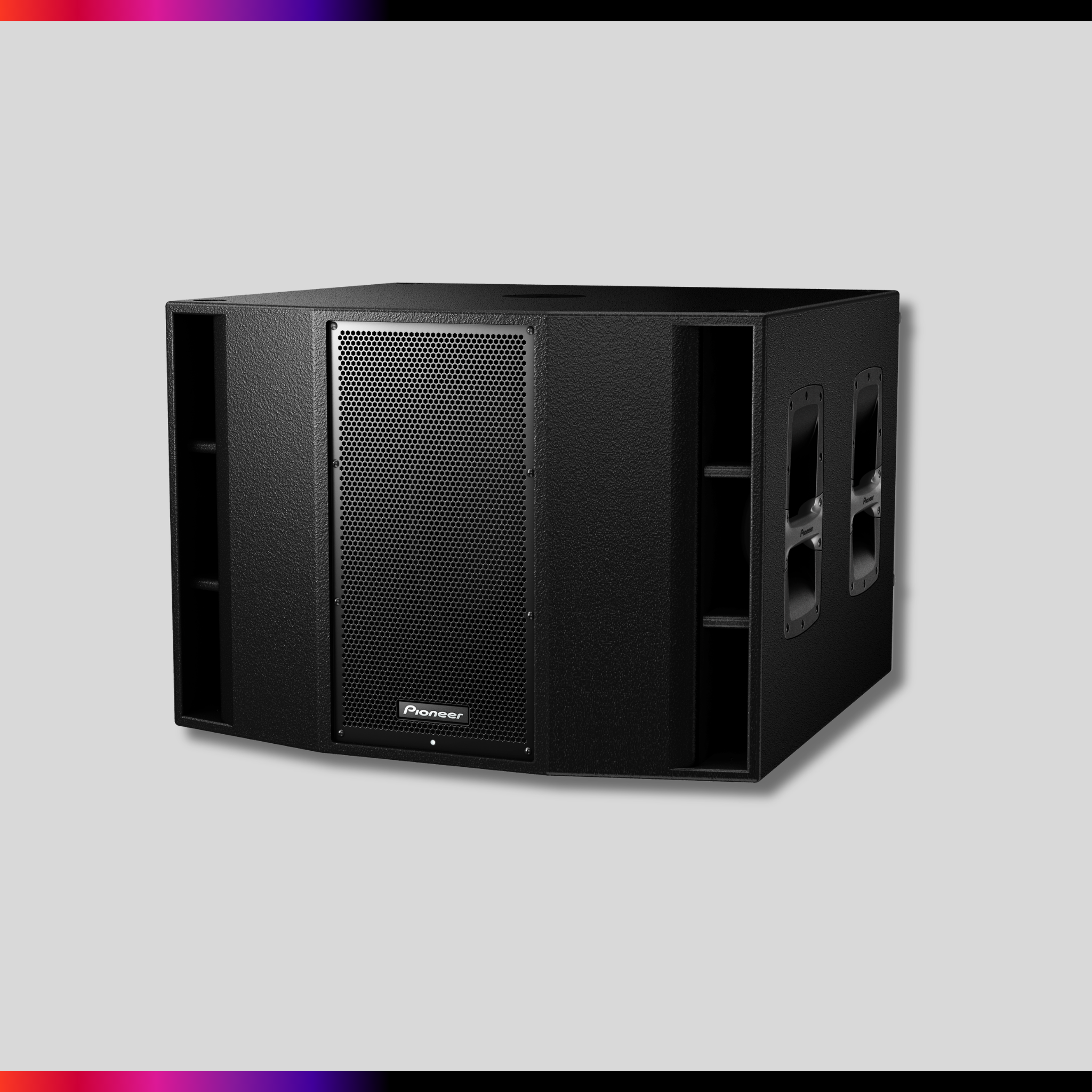

XPRS215S
Dual 15” active subwoofer
Control your bass
The XPRS Series active PA speakers are compact and portable, yet high powered. Forget complicated setups and tangled cables as this system offers straightforward, plug-and-play use. Pioneer Pro Audio sound engineering technology and the use of Powersoft amps ensures these mobile speakers are reliable and energy efficient, making them suitable for all music genres and environments.
Enhance your lower frequencies with the quick and powerful bass response of the XPRS215S subwoofer. The sub’s built-in horn shape and dual 15-inch, high-grade ferrite LF drivers deliver rich, powerful low frequencies, while the Crossover and Phase switches allow you to control your DSP settings effortlessly.
| Main Features | |
|
Accessories
|
XPRS 215S x 1 |
| Powerd cord | |
| Installation and Operation Manual | |
| Important Safety Precautions | |
|
Specifications
|
|
|
Power supply
|
100 V (50 Hz/60 Hz) |
| 110 V to 240 V (50 Hz/60 Hz) | |
| Width | 743 mm |
| Depth | 811 mm |
| Height | 524 mm |
| Weight | 55.9 kg |
| Frequency Range | 40 - 160 Hz |
|
System characteristic
|
|
|
Maximum Sound Pressure
|
135 dB |
|

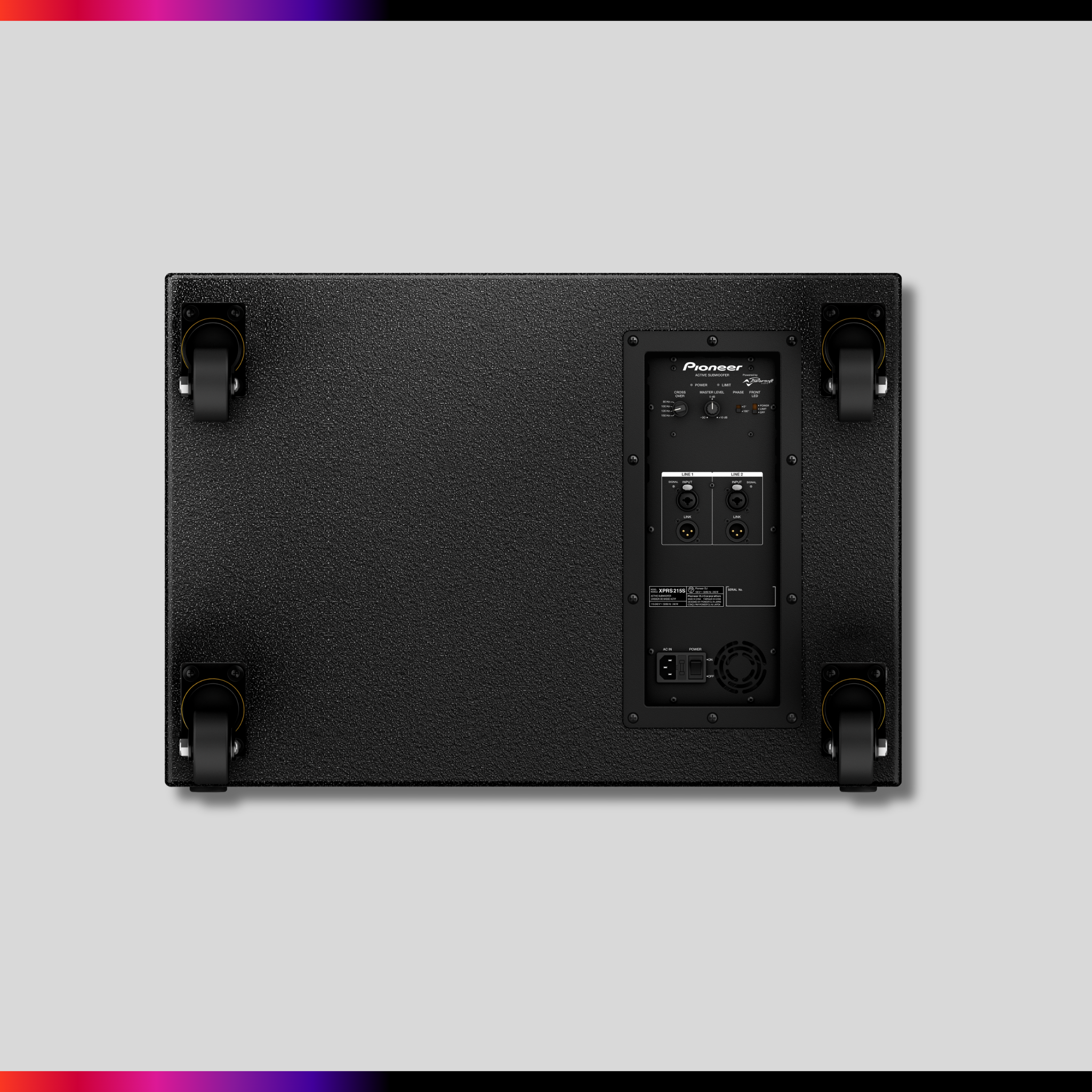

Terminals
|
|
|
Inputs
|
2 XLR/TRS Combo (balanced) |
| Outputs | 2 Through output XLR (balanced) |
|
Amplifier
|
|
|
Amplifier Output
|
2400W peak / 1200W cont. |
| Class D | |
| Impedance | 10 kΩ |
|
Speaker
|
|
|
Driver
|
15 inch ferrite LF cone driver |
| Finish | Impact-resistant |
| Black semi-matt textured | |
| Handle | 4 (on both sides) |
| Pole socket | M20 screw socket |
| Enclosure | 15 mm birch plywood |
|
Protection
|
|
|
Amplifier Protection
|
Thermal limiting |
| Over-temperature muting | |
| Output overcurrent | |
| Driver Protection | DC offset removal |
| High frequency stationary loud signals | |
| Input voltage limiter (Peak/RMS) | |
| Power unit Protection | Primary AC mains overcurrent protection |
| Primary AC mains overvoltage protection |
* The XPRS215S is sold as a single subwoofer.
