The XPRS2 Series couples the versatility and mobility of the original XPRS Series with elevated sound-performance and audio intelligibility to deliver a high-caliber speaker system for mobile DJs, live sound, houses of worship, rental and fixed installations.
Type
|
8 inch 2-way active loudspeaker |
Amplifier Output
|
|
Accessories
|
- XPRS82 x 1 (not sold as a pair)
- Powerd cord
- Quick start guide
- Important Safety Precautions
|
Power supply
|
110 V to 240 V (50 Hz/60 Hz) |
Power consumption
|
800 W |
Width
|
272.7 mm |
Depth
|
302 mm |
Height
|
460 mm |
Weight
|
13.2 kg |
Frequency Range
|
60 - 20000 Hz |
DSP modes
|
- Factory Presets (4 types)

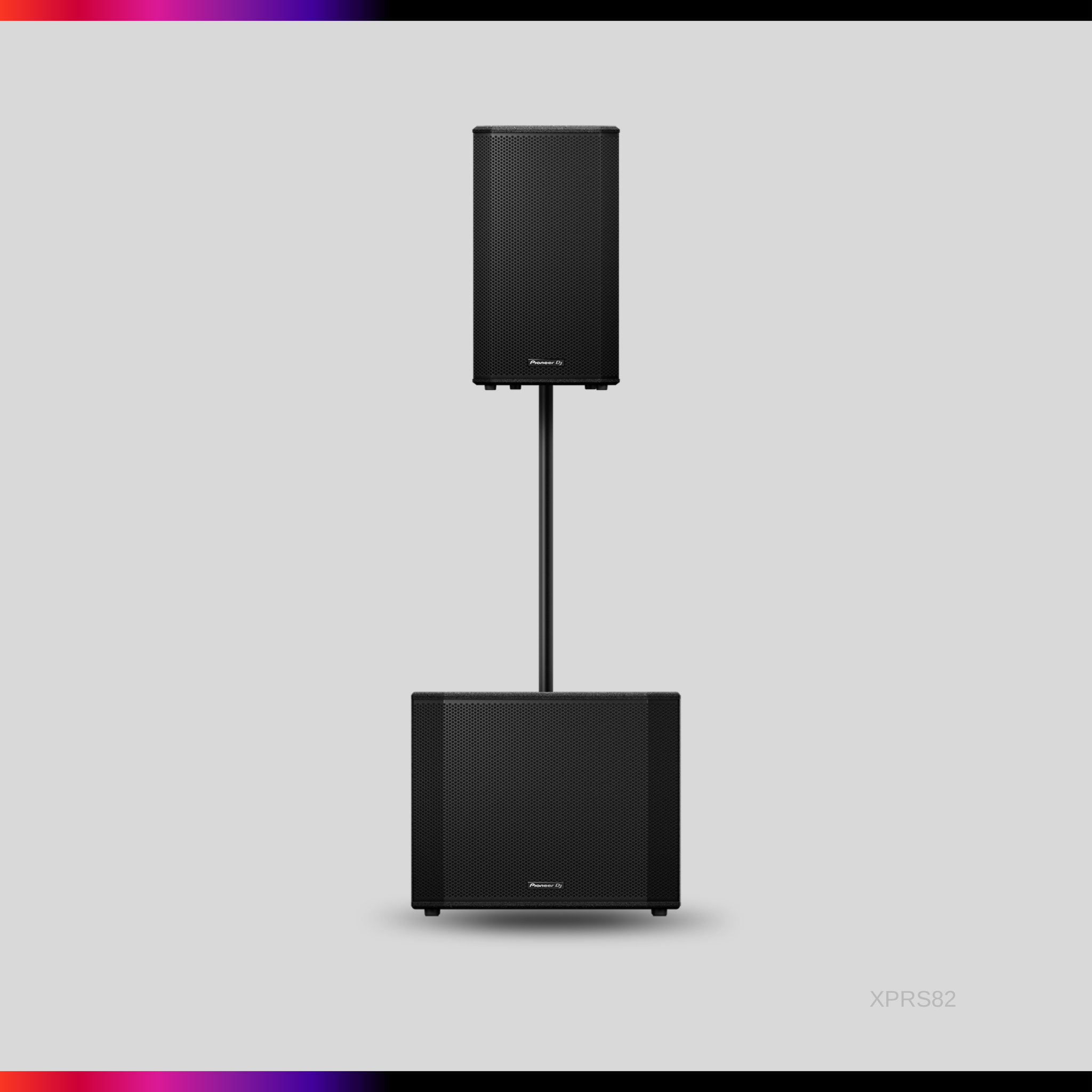

- Sub Setting (Sub Setting menu is for selecting the high-pass frequency or matching subwoofer)
- EQ (4-band equalizer)
- User Programs (16 presets)
|
DSP presets modes
|
- Factory presets
- LIVE
- MUSIC
- SPEECH
- MONITOR
|
Maximum Sound Pressure
|
127 dB |
Cross Over Frequency
|
2 kHz |

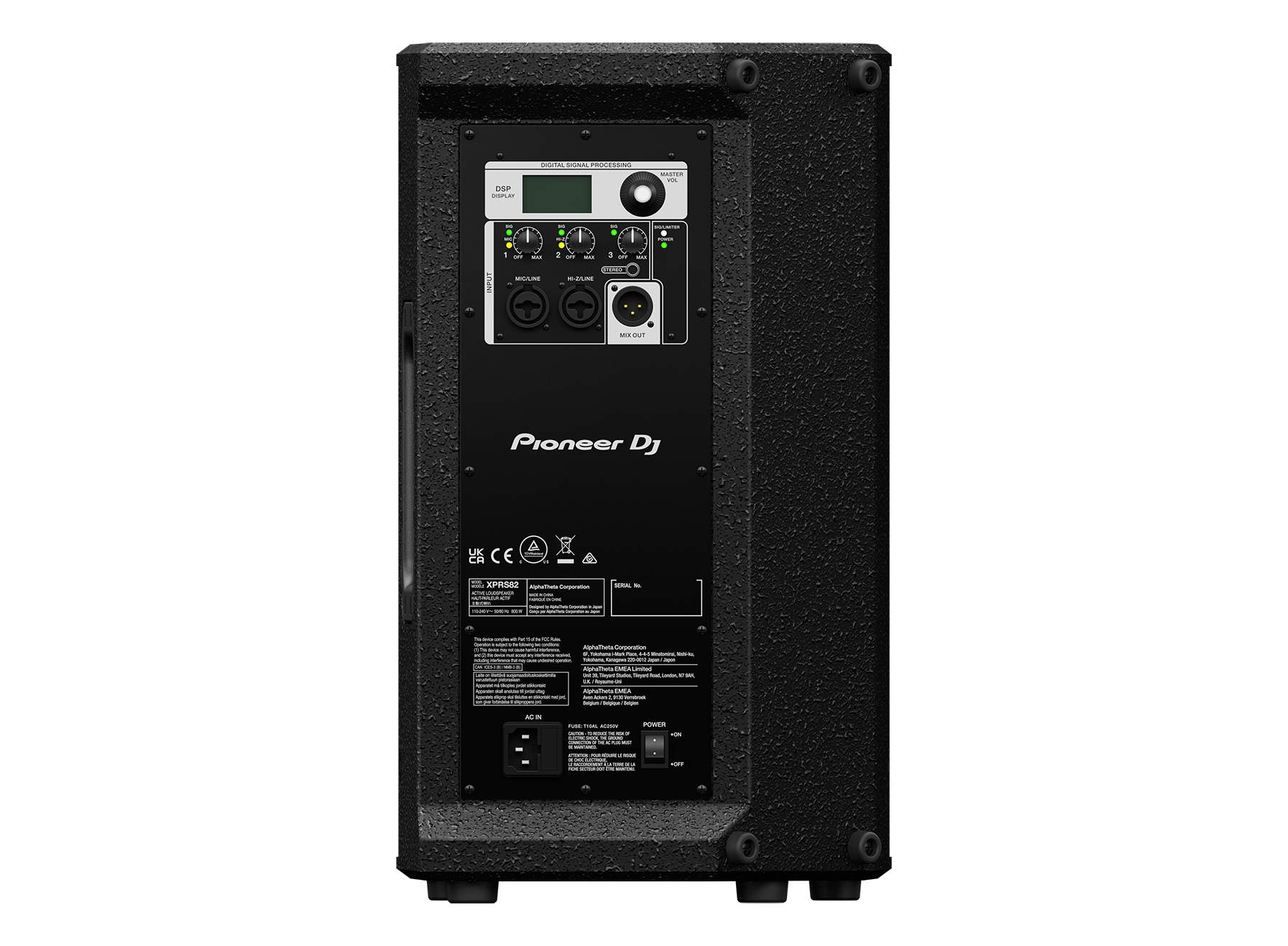

Inputs
|
- MIC / LINE x 1 (Combo)
- HI-Z / LINE x 1 (Combo)
- 3.5 mm stereo mini jack x 1 (Unbalanced input)
|
Outputs
|
MIX (XLR) |
Driver
|
- 8 inch ferrite LF cone driver
- 1.75 inch compression driver
|
Finish
|
Black paint, Rubber feet |
Handle
|
1 metal handle (on left side) |
Pole socket
|
35 mm socket |
Rigging point
|
10x M10 |
Enclosure
|
Plywood (TSCA) |
Amplifier Protection
|
- Thermal limiting
- Digital Limiter
- Digital compressor
|
Driver Protection
|
Short circuit protection |
Power unit Protection
|
- Primary AC mains overcurrent protection
- Primary AC mains overvoltage protection
|
